Fan Control Module No.2

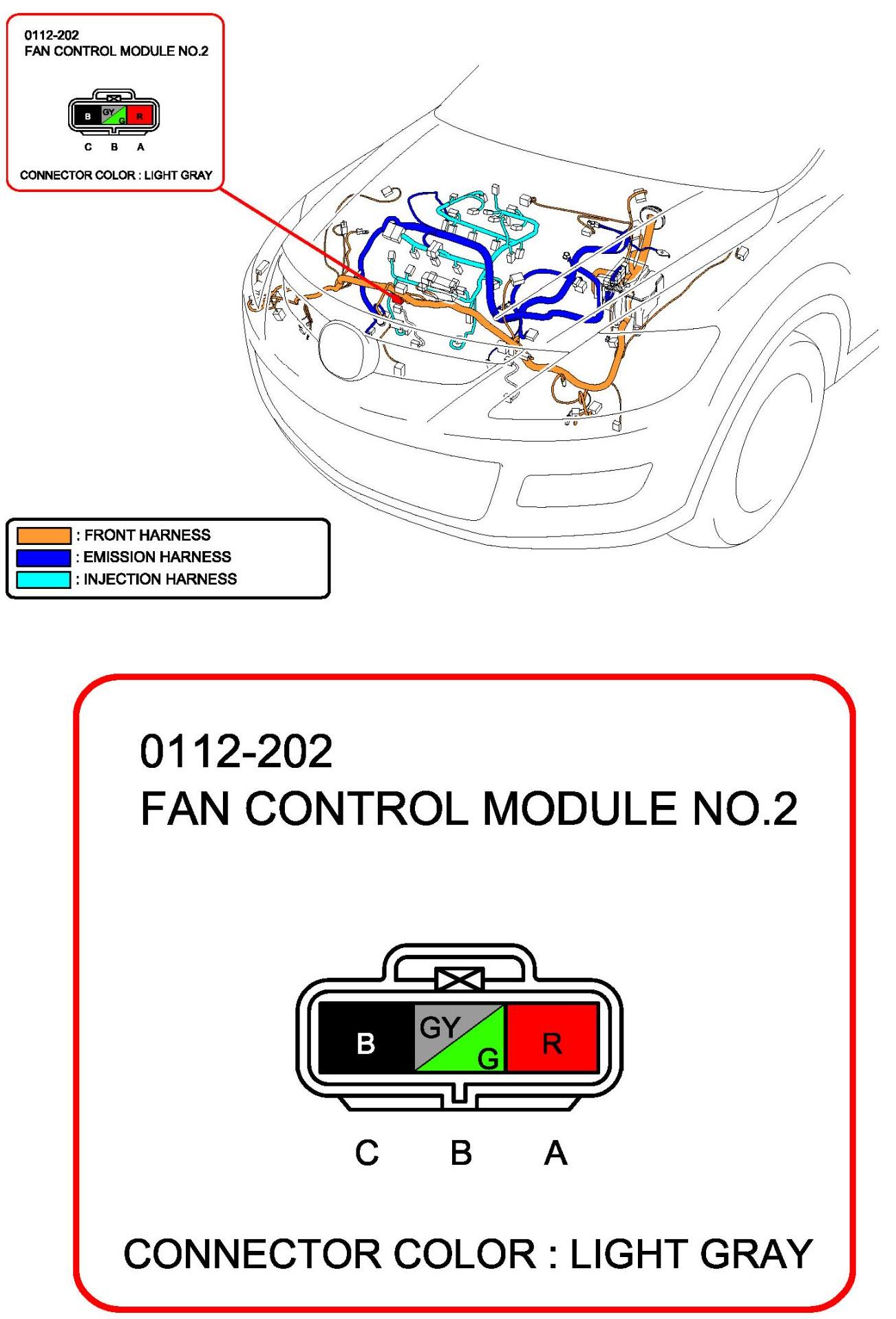

Fan Control Module No.2:



Fan Control Module:



Fan Control Module No.1:



Fan Control Module:



Fan Control Module No.1:
