Home >> Mazda >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> Locations >> Component Locations >> Windshield Wiper Motor
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Windshield Wiper Motor

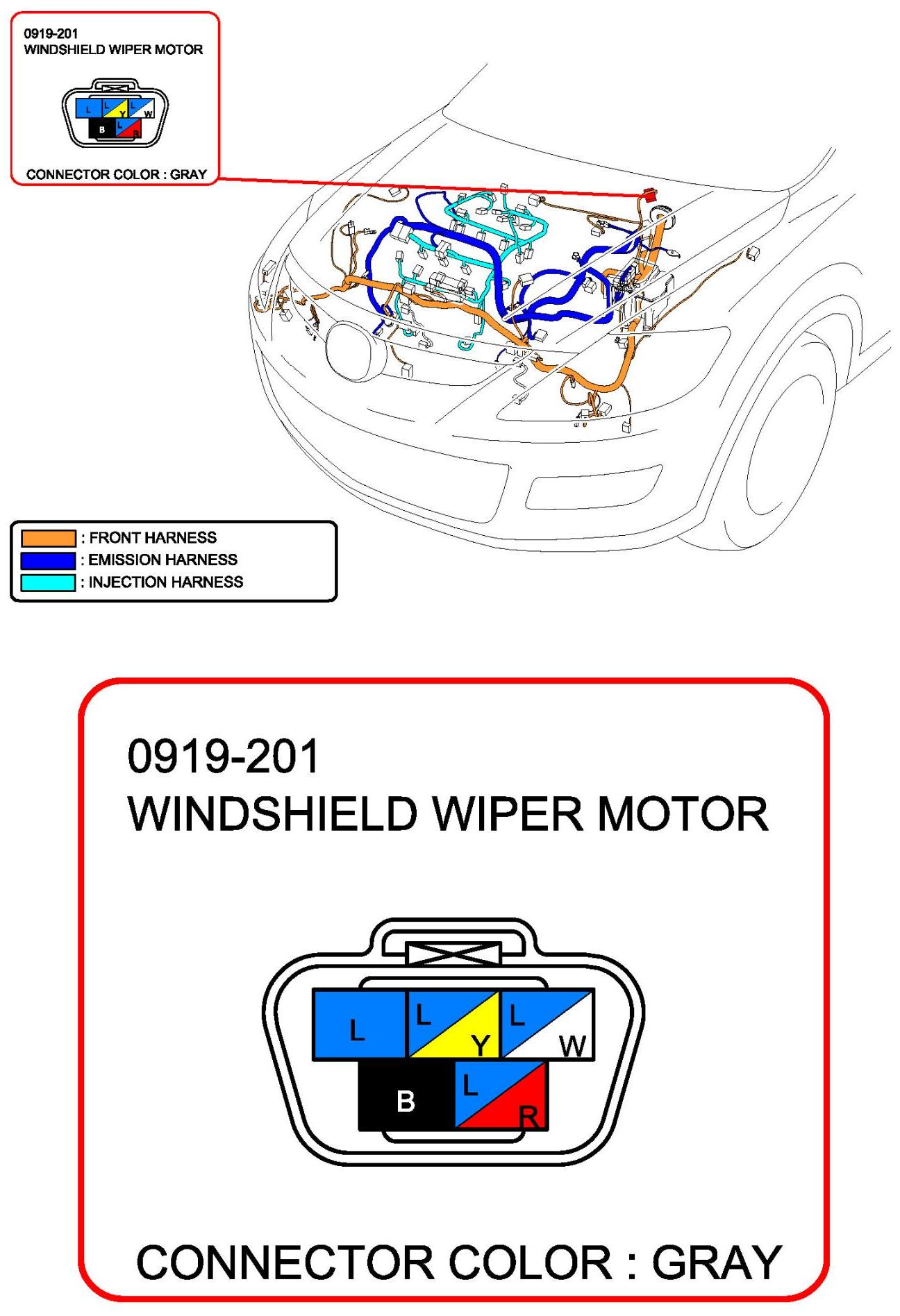

Windshield Wiper Motor:

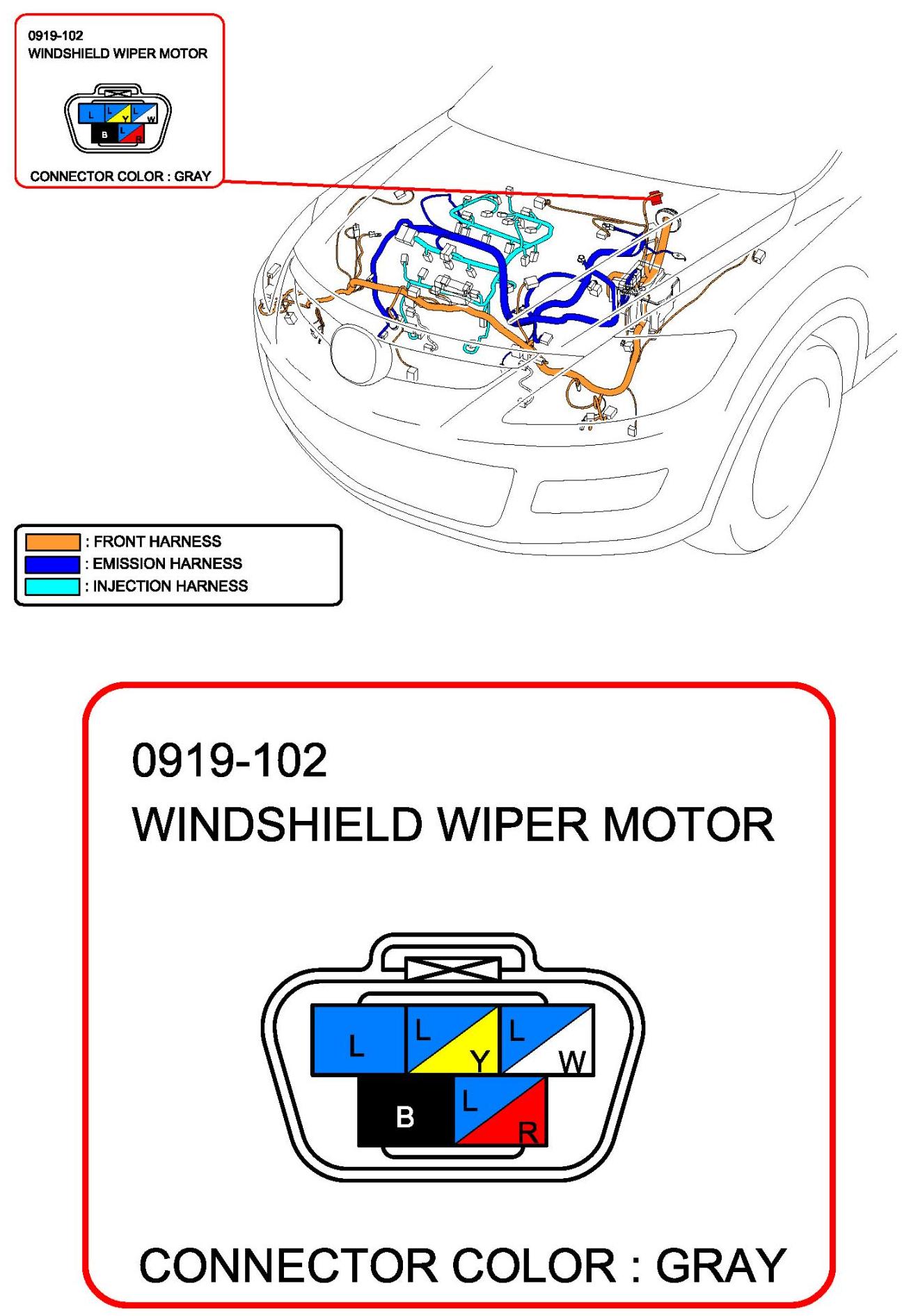

Windshield Wiper Motor:

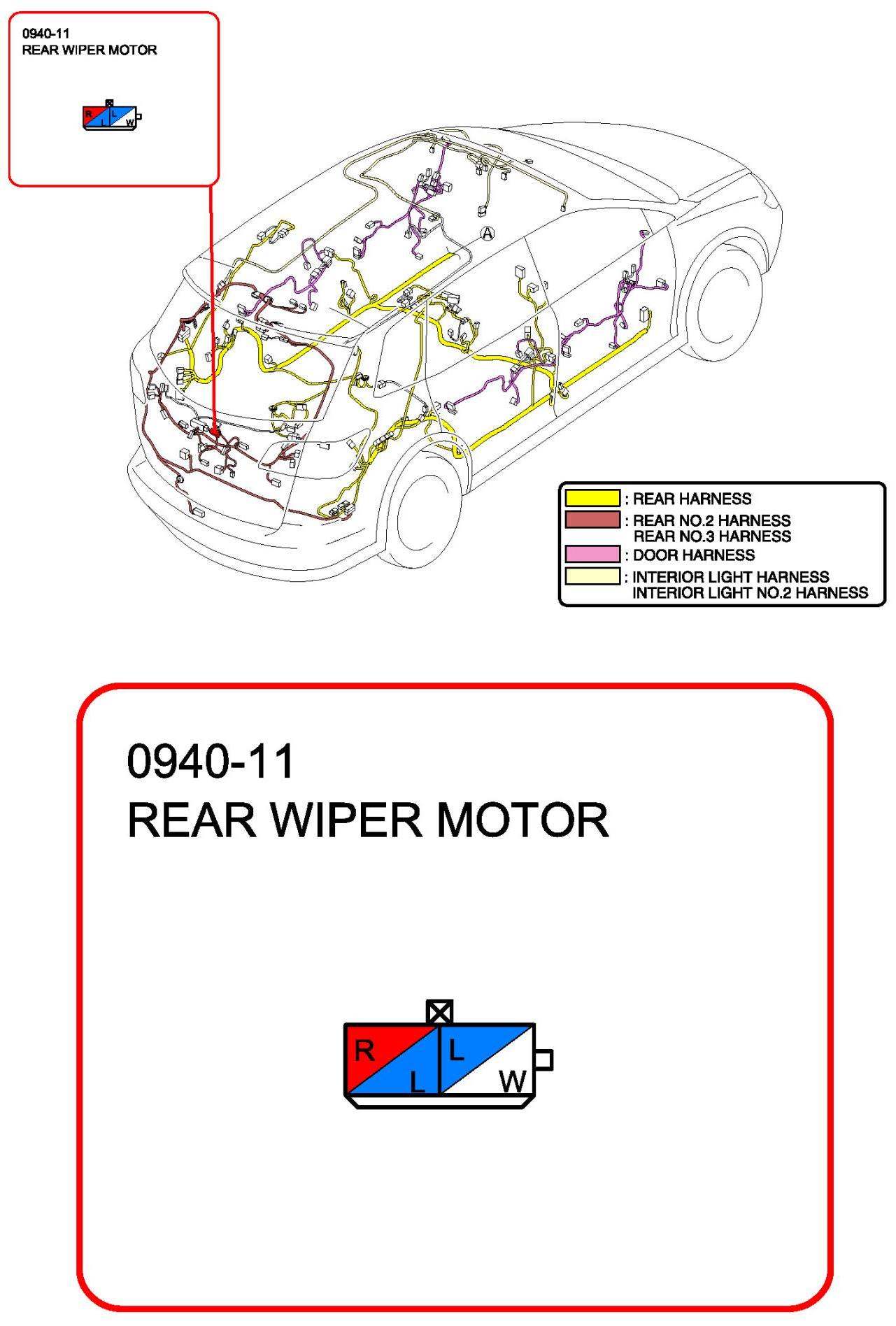

Rear wiper Motor:
