Camber/Total Toe-In Adjustment

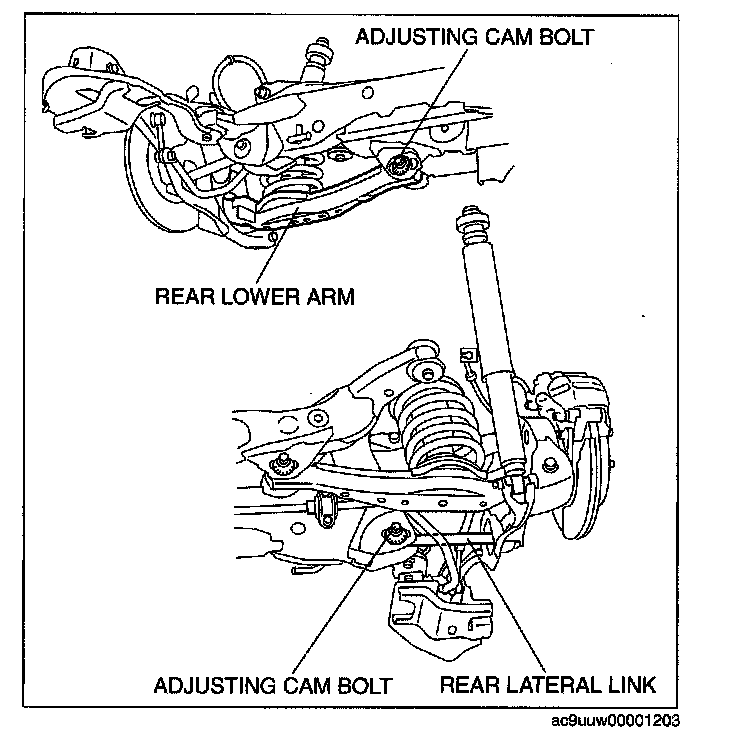

Camber/Total Toe-in Adjustment





1. Loosen the securing nut of the adjusting cam bolt.
2. Rotate the adjusting cam bolt in either direction to adjust the camber and total toe-in.

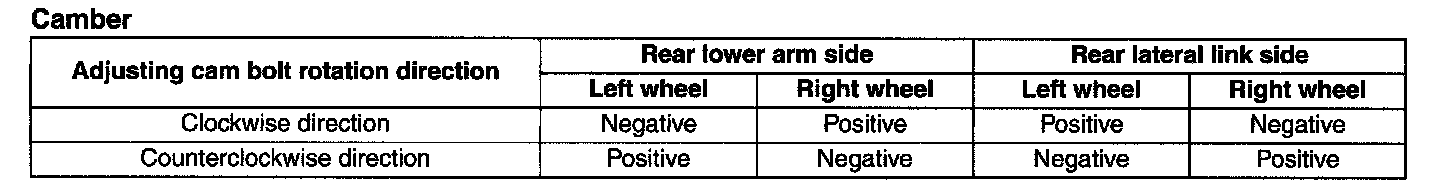

Camber:

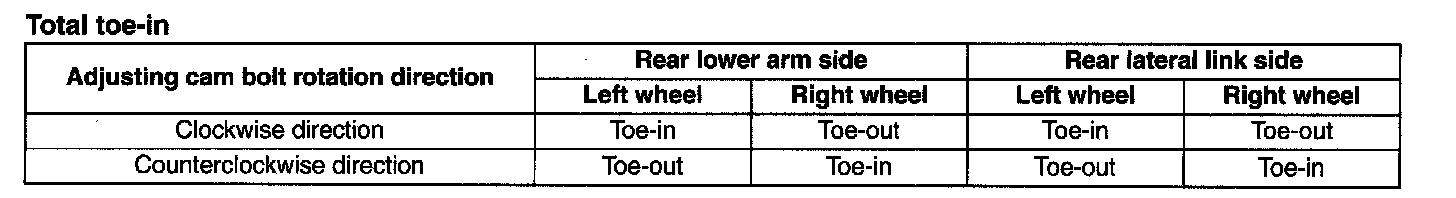

Total Toe-in:

3. Fix the adjusting cam bolt, and tighten the nut.

Tightening torque
^ 120 - 163 Nm (12.3 - 16.6 kgf-m, 89 - 120 ft-lbf)
