Ground Distribution

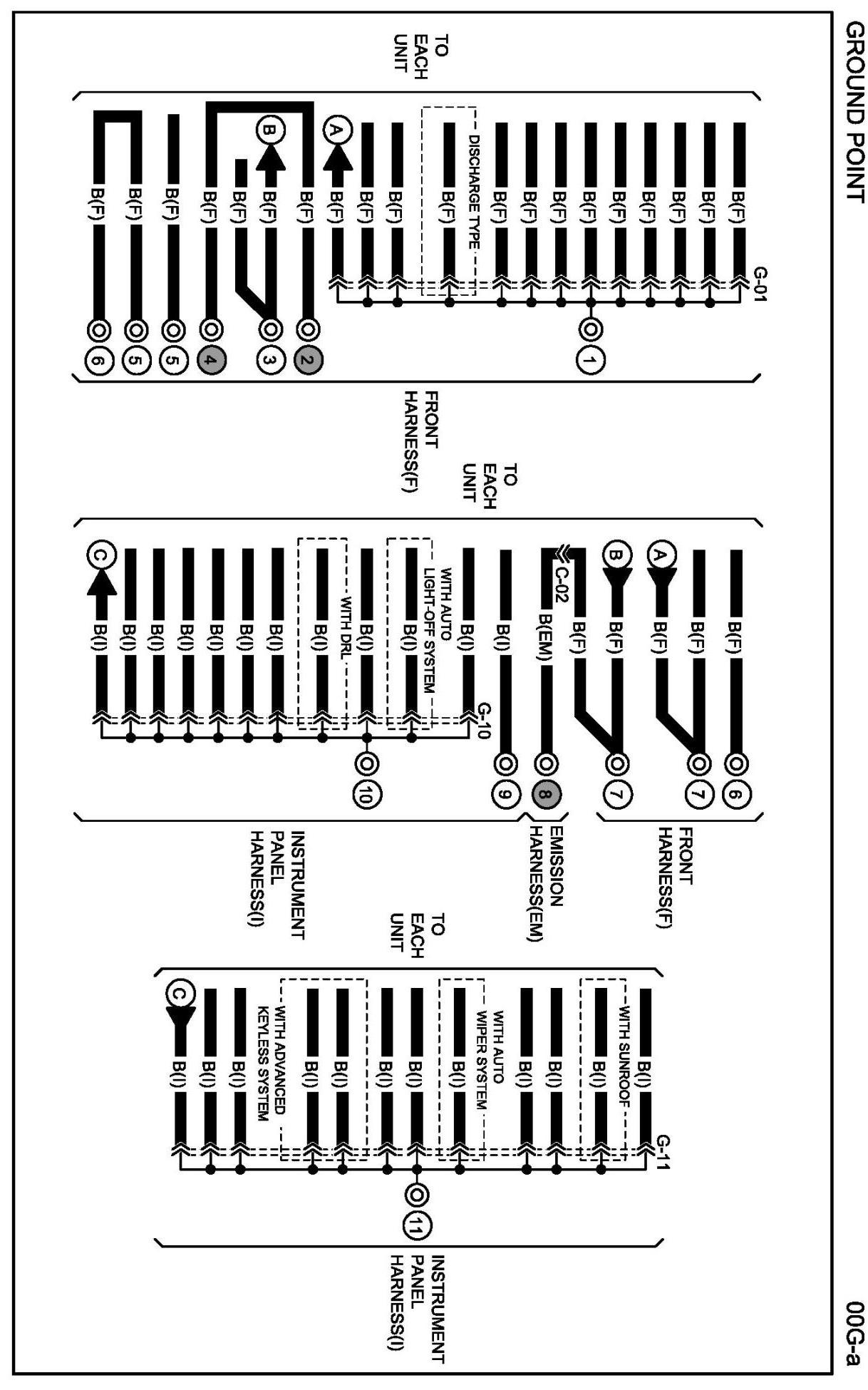

Diagram 00G-a:

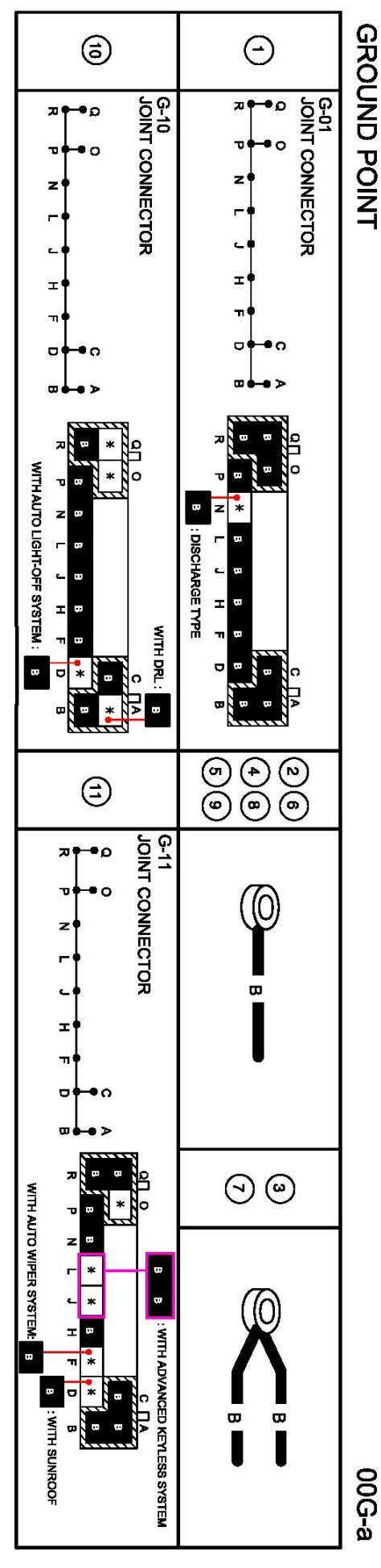

Connectors 00G-a:

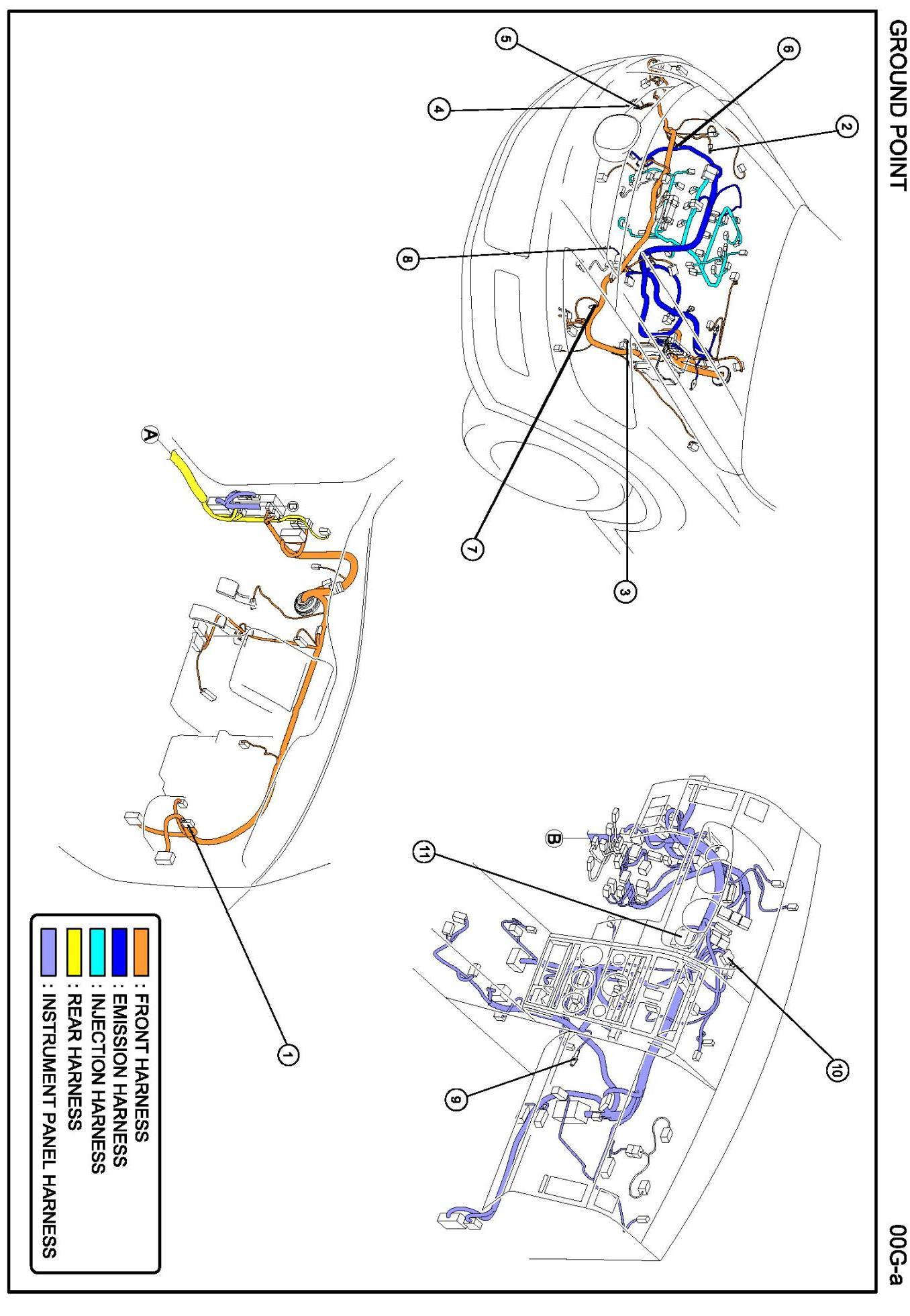

Routing View 00G-a:

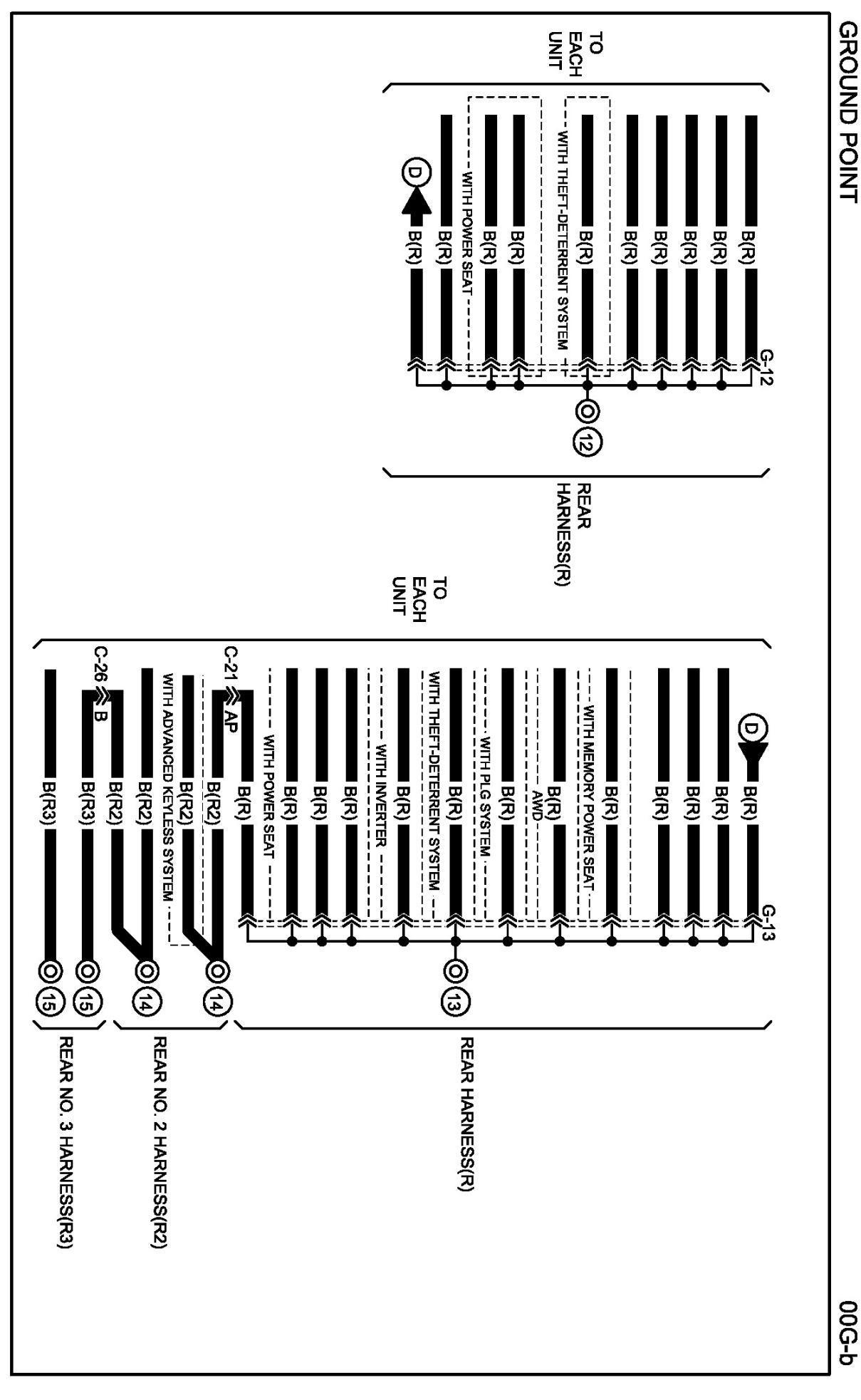

Diagram 00G-b:

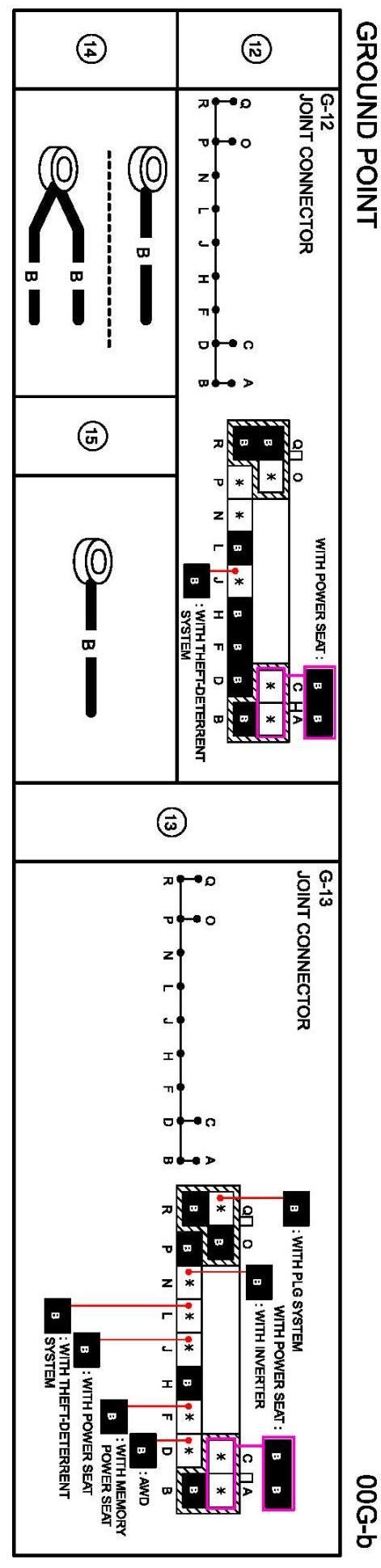

Connectors 00G-b:

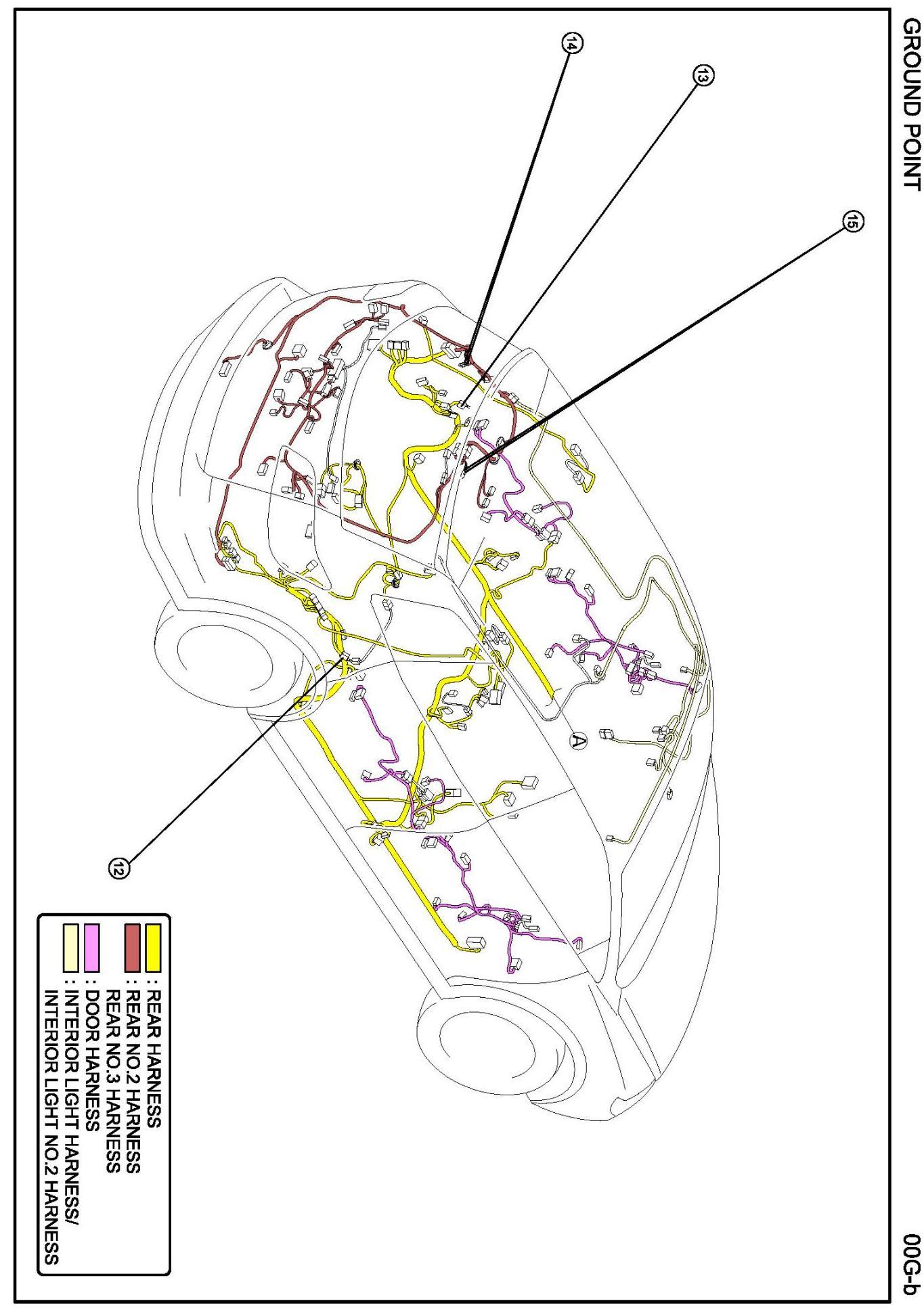

Routing View 00G-b:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by diagram Name. Diagrams By Diagram Name
