Air Flow Meter/Sensor: Service and Repair

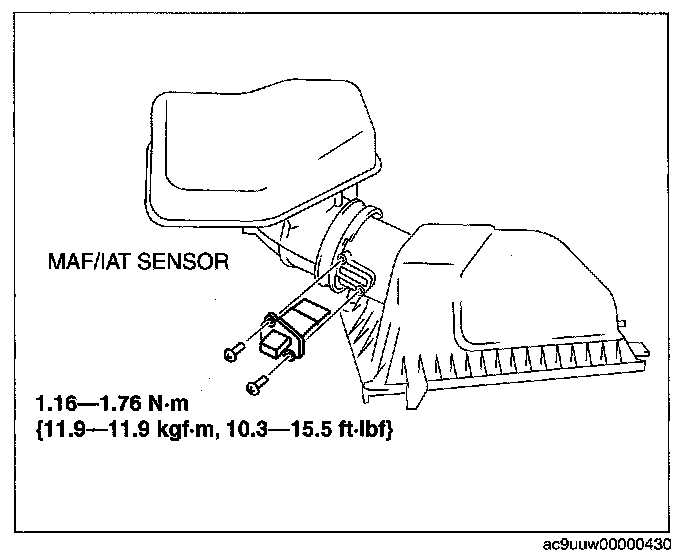

MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION [MZI-3.5]




1. Disconnect the negative battery cable.
2. Disconnect MAF/IAT sensor connector.
3. Remove the MAF/IAT sensor.
4. Install in the reverse order of removal.
