Programming and Relearning

PCM CONFIGURATION [MZI-3.5]

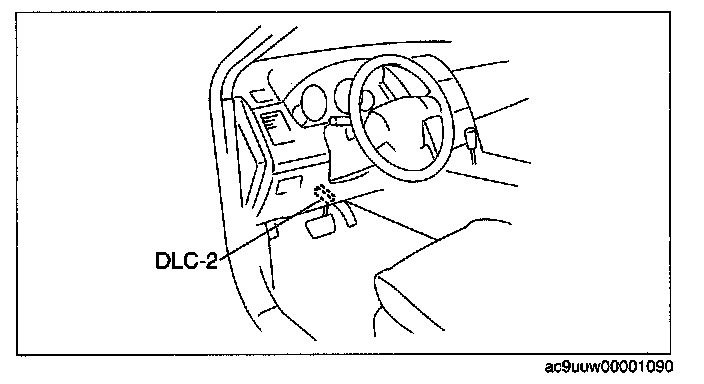

1. Connect the M-MDS to DLC-2.
2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.
- When using the IDS (laptop PC)
1. Select the "Toolbox" tab.
2. Select the "Module Programming".

- When using the PDS (Pocket PC)
1. Select "Programming".
2. Select "Module Programming".

3. Then, select the "Programmable Module Installation", "PCM" from the screen menu.
4. Select "PCM" and perform procedures according to directions on the M-MDS screen.
5. Retrieve DTCs by the M-MDS, then verify that there is no DTC present.
- If a DTC is present, perform the applicable DTC inspection.
