Ignition Coil: Service and Repair

IGNITION COIL REMOVAL/INSTALLATION [MZI-3.5]

1. Disconnect the negative battery cable.
2. Remove the engine cover.
3. Remove the dynamic chamber.

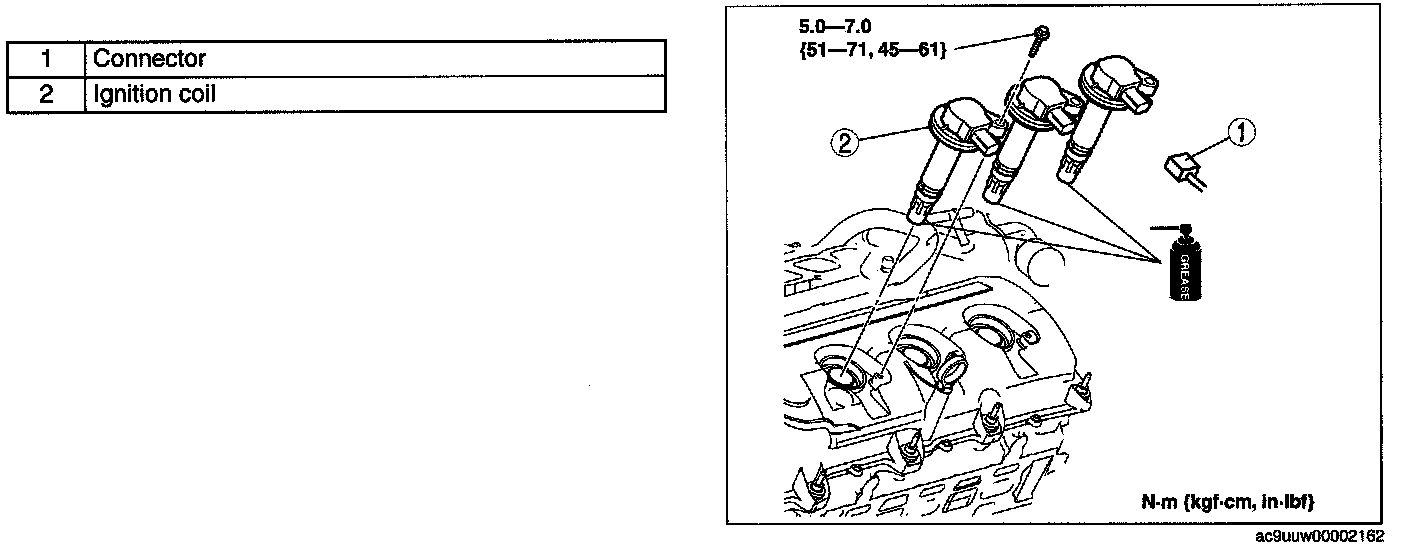

4. Remove in the order indicated in the table.

CAUTION: Apply small amount of the specified dielectric grease to the inside of the ignition coils, then Install the ignition coils to the spark plugs.
- Specified grease: Motorcraft XG-3A




5. Install in the reverse order of removal.
