Lighting Systems

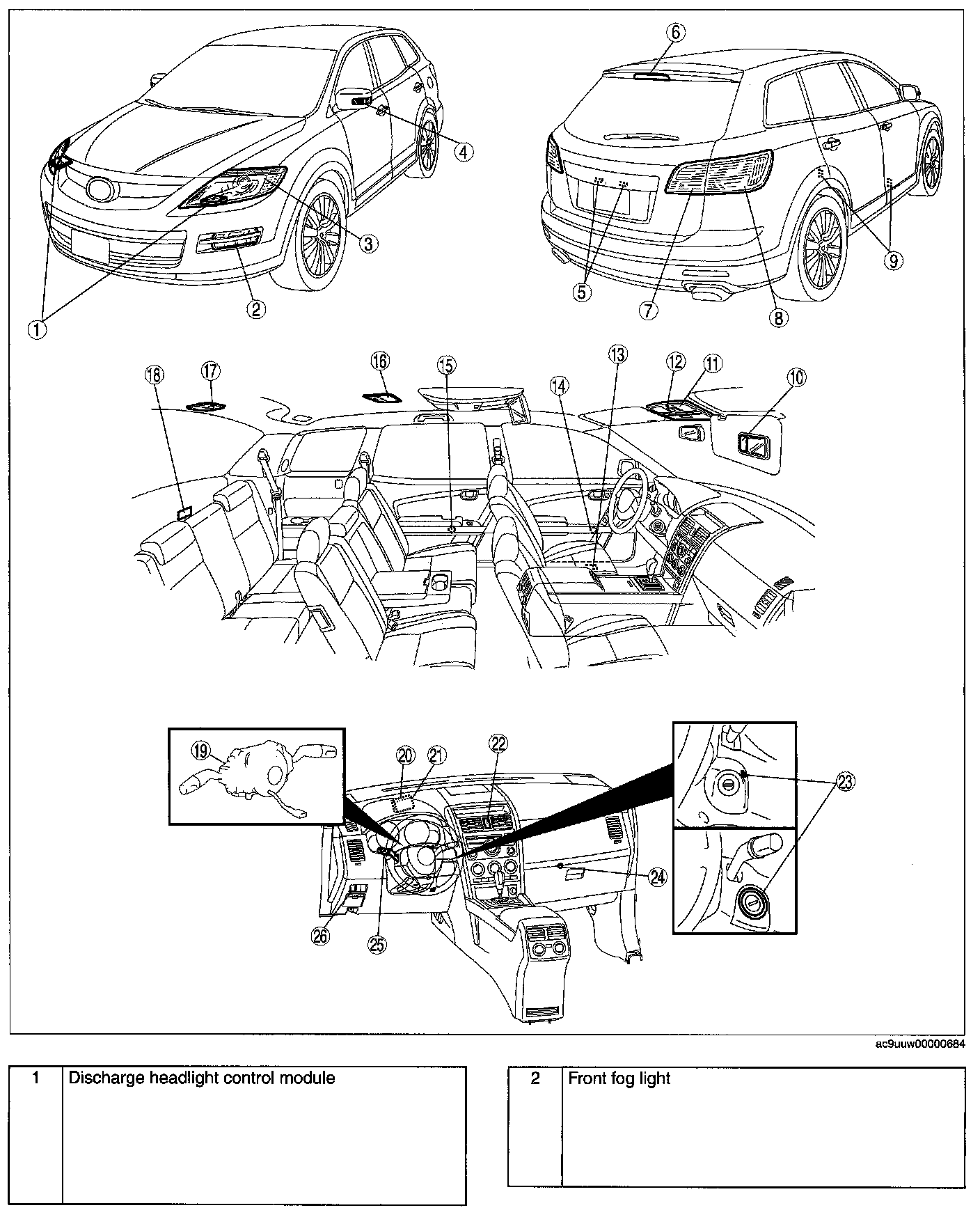

Lighting Systems Location Index (Part-1):

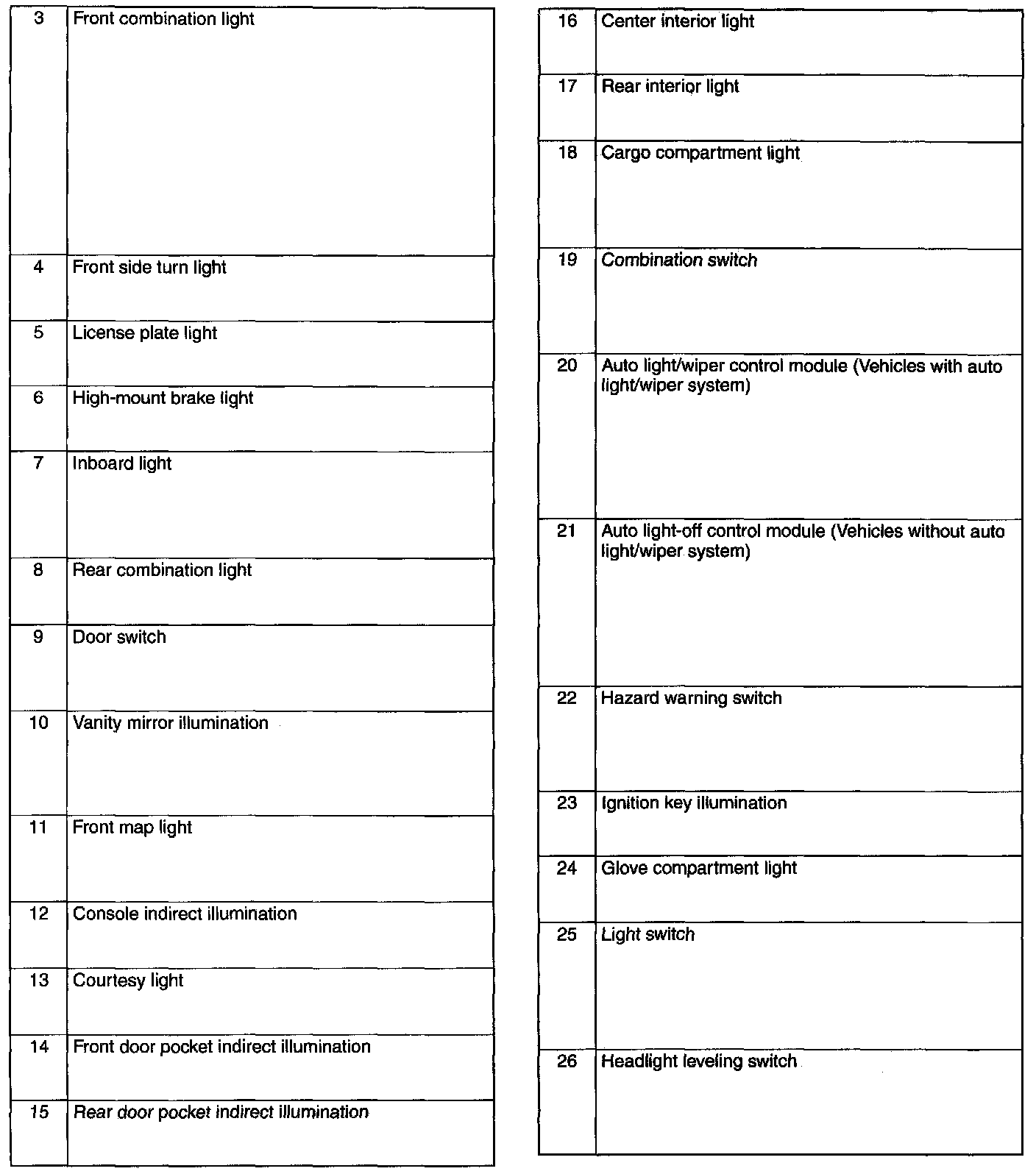

Lighting Systems Location Index (Part-2):
