Programming and Relearning

AUTO LIGHT/WIPER CONTROL MODULE CONFIGURATION

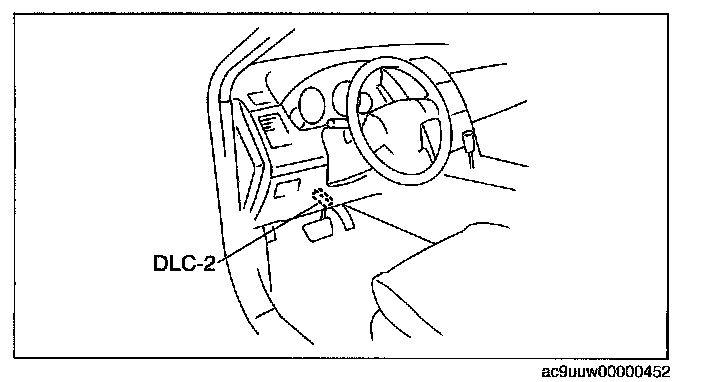

1. Connect the M-MDS to the DLC-2 connector.
2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
- When using the IDS (laptop PC)
1. Select the "Toolbox" tab.
2. Select "Module Programming".

- When using the PDS (Pocket PC)
1. Select "Programming".
2. Select "Module Programming".

3. Then, select items from the screen menu in the following order.
1. Select "Programmable Module Installation".
2. Select "LCM".

4. Configuration is performed in accordance with the screen instructions.
5. Retrieve DTCs using the M-MDS and verify that there is no DTC present.
- If any DTC is present, perform applicable DTC inspection. (See DTC TABLE [AUTO LIGHT/WIPER CONTROL MODULE]) Diagnostic Trouble Code Descriptions
