Oxygen Sensor: Service and Repair

HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION[L3 WITH TC]

WARNING: A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

1. Remove the battery cover.
2. Disconnect the negative battery cable.

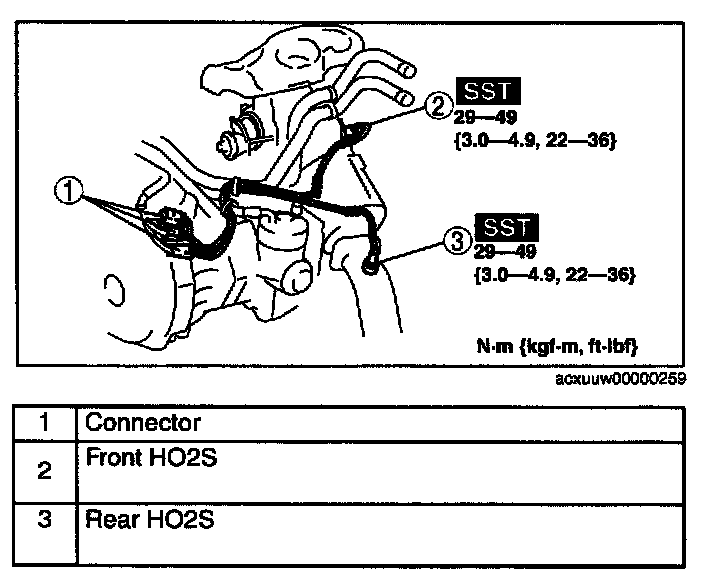

3. Remove in the order indicated in the table.




4. Install in the reverse order of removal.

H02S Removal Note

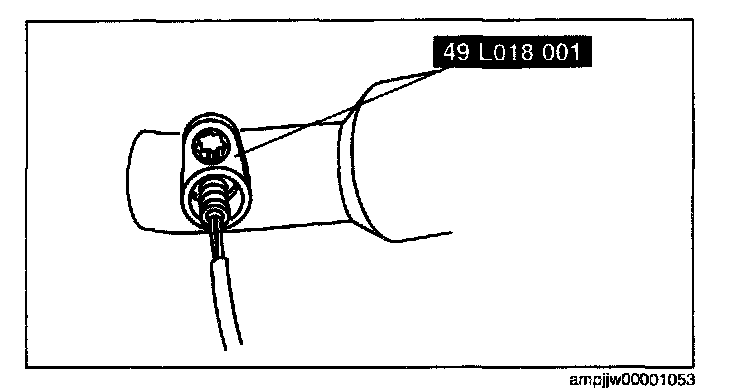

1. Remove the HO2S using the SST.
