Vehicle Speed Sensor: Testing and Inspection

VEHICLE SPEED SENSOR INSPECTION (WITHOUT ABS) [G36M-R]
1. Remove the vehicle speed sensor.

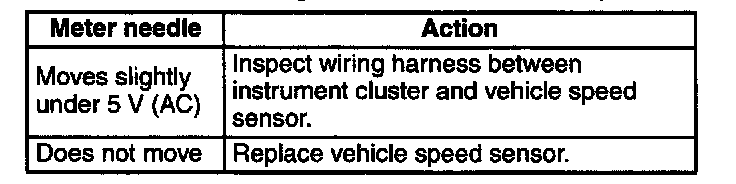

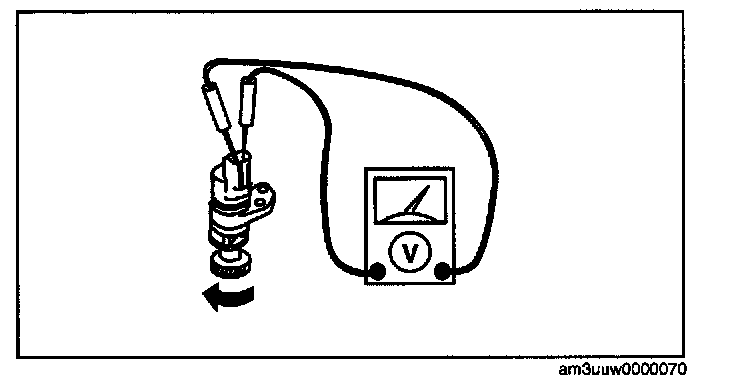

2. Measure the voltage between the vehicle speed sensor terminals while the gear is turning.








3. Install the vehicle speed sensor.
