Oil Pan, Engine

Oil Pan

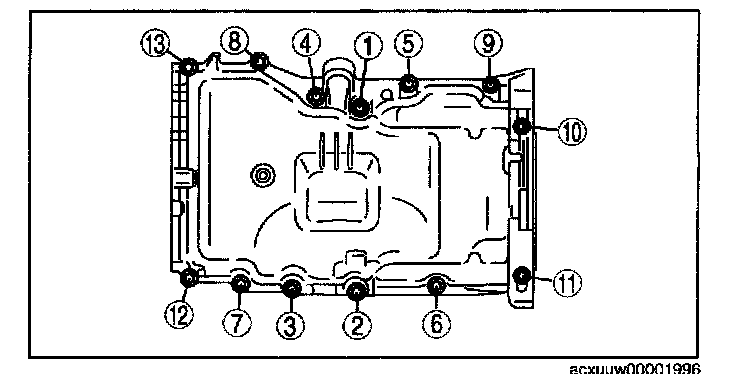

Tighten the bolts in the order shown in the figure.
Tightening torque 17 - 23 Nm (1.8 - 2.3 kgf-m, 12.6 - 16.9 ft-lbf)

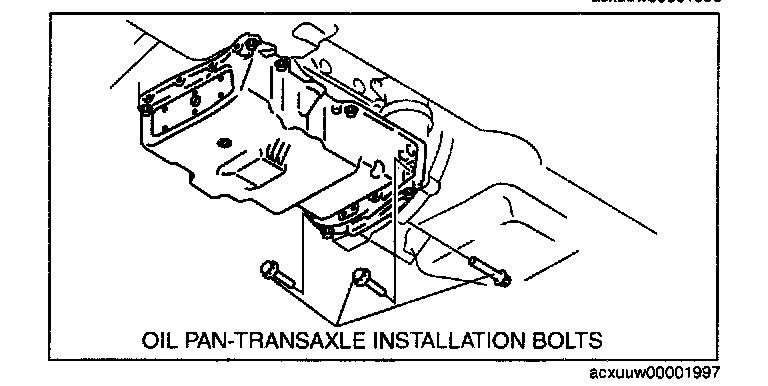

Tighten the oil pan-transaxle installation bolts.
Tightening torque 37 - 52 Nm (3.8 - 5.3 kgf-m, 28 - 38 ft-lbf)
