Body Control Systems: Description and Operation

MULTIPLEX COMMUNICATION SYSTEM[MULTIPLEX COMMUNICATION SYSTEM (L3 WITH TC)]

Outline
- If the controller area network (CAN) system is malfunctioning, read the DTCs of the following modules, using the M-MDS to determine the malfunctioning system.
- PCM
- DSC HU/CM
- AWD control module
- Keyless control module
- Instrument cluster

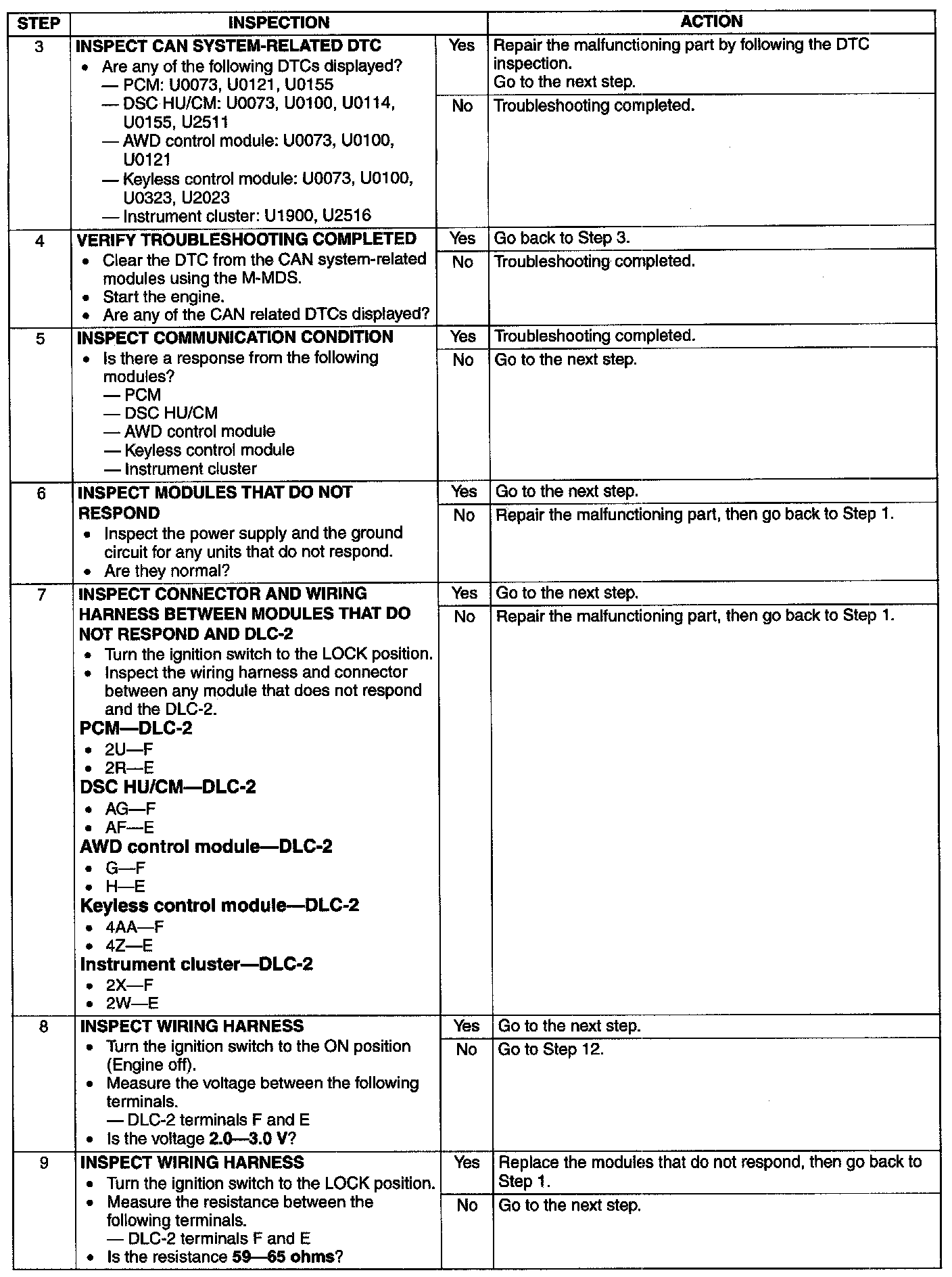

Step 1-Step 2:

Step 3-Step 9:

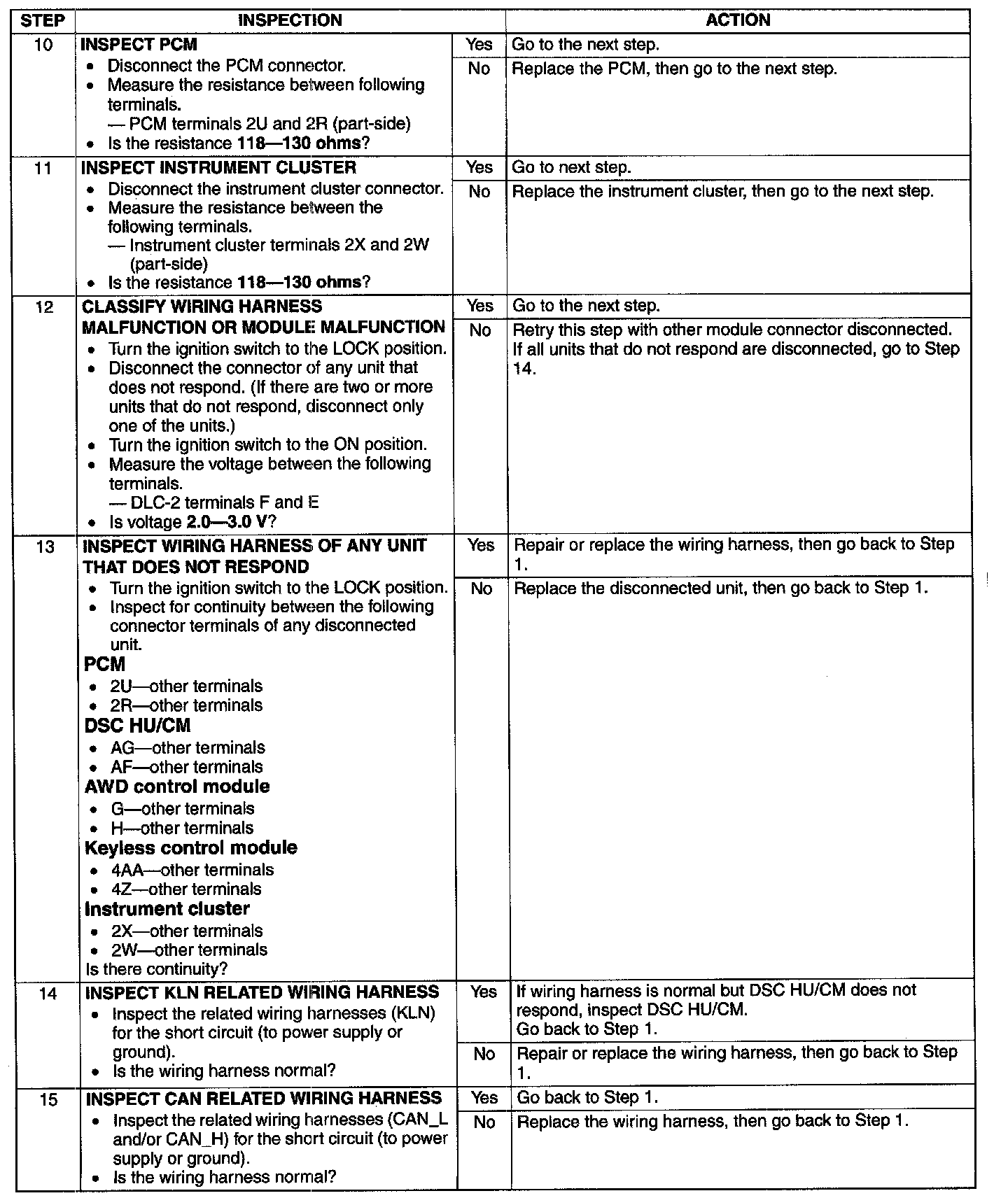

Step 10-Step 15:

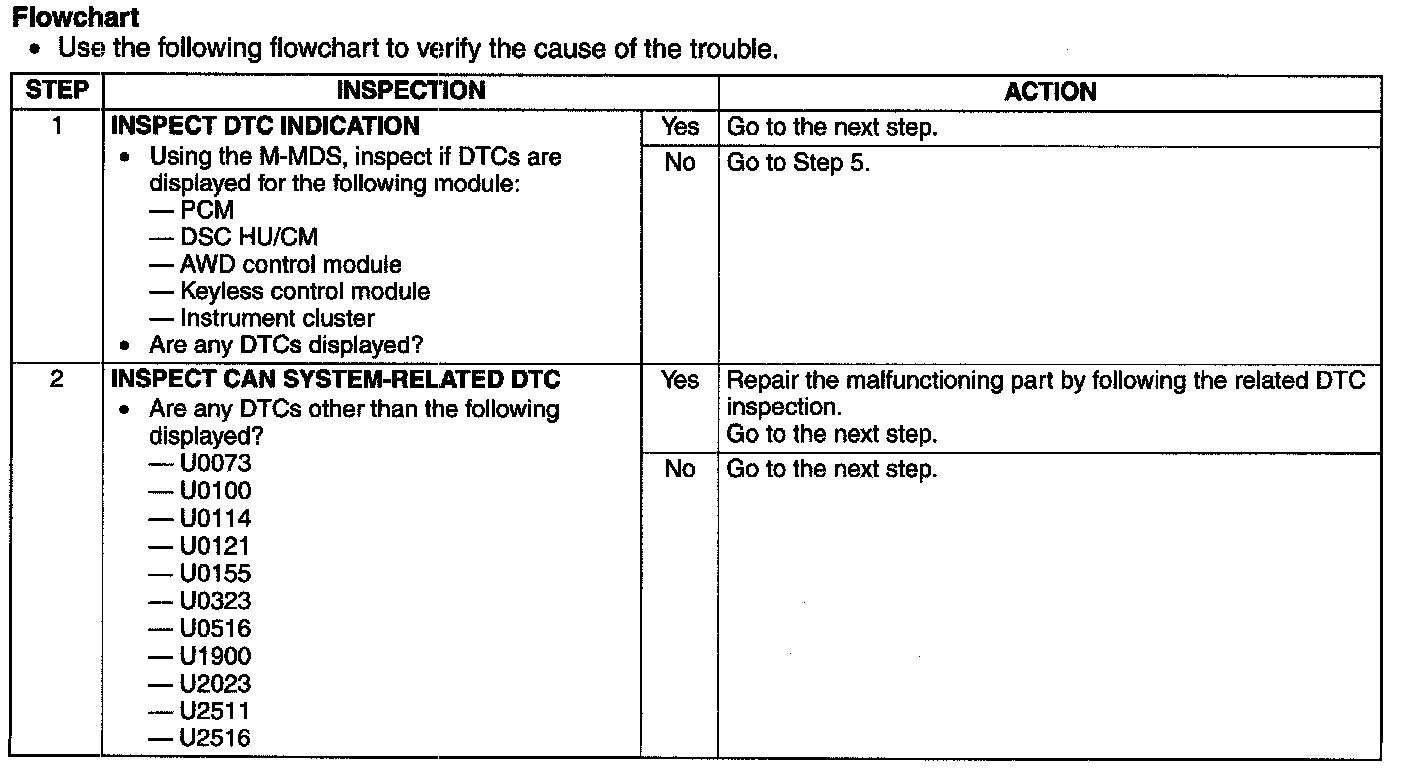

Flowchart
