Engine Control Module: Service and Repair

PCM REMOVAL/INSTALLATION[L3 WITH TC]

NOTE: For PCM replacement, set up the M-MDS and perform the PCM configuration. (See PCM CONFIGURATION[L3 WITH TC].)

1. Disconnect the negative battery cable.

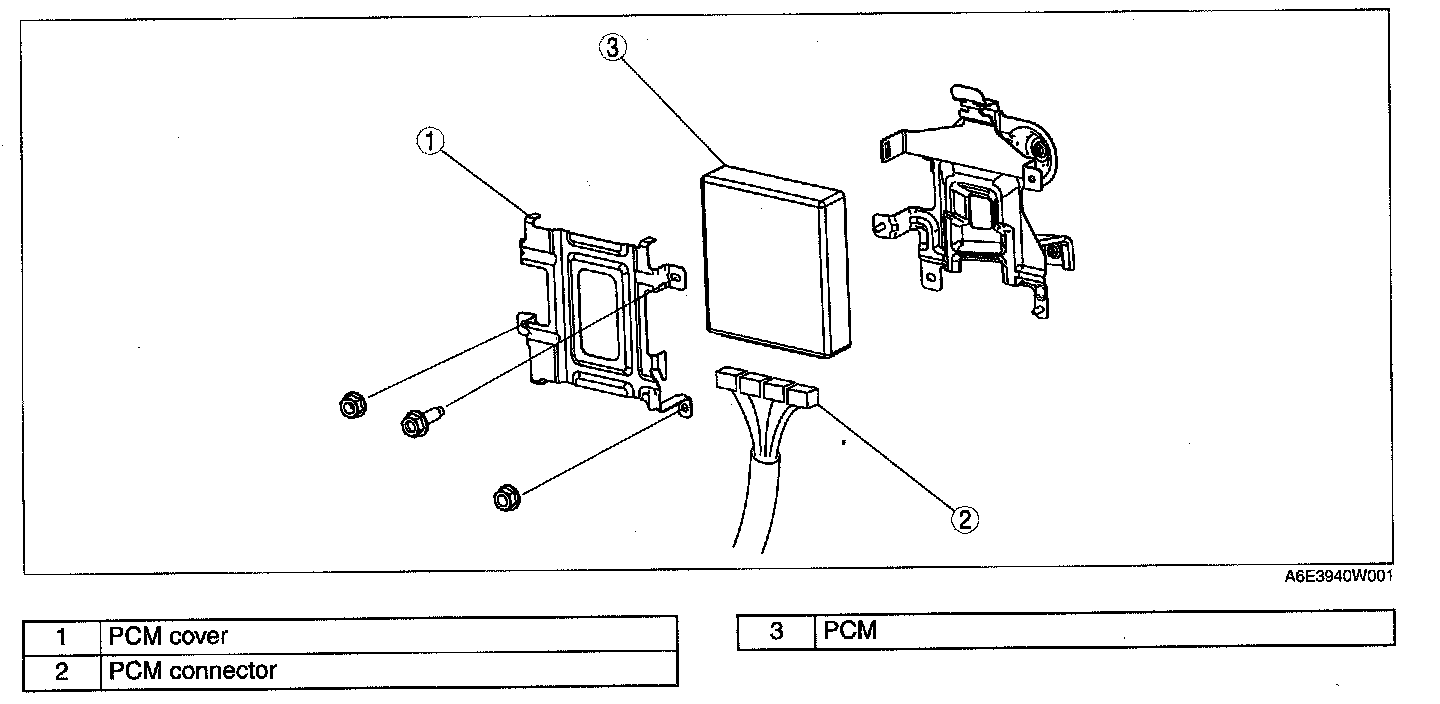

2. Remove in the order indicated in the table.




3. Install in the reverse order or removal.
