Pinout Values and Diagnostic Parameters

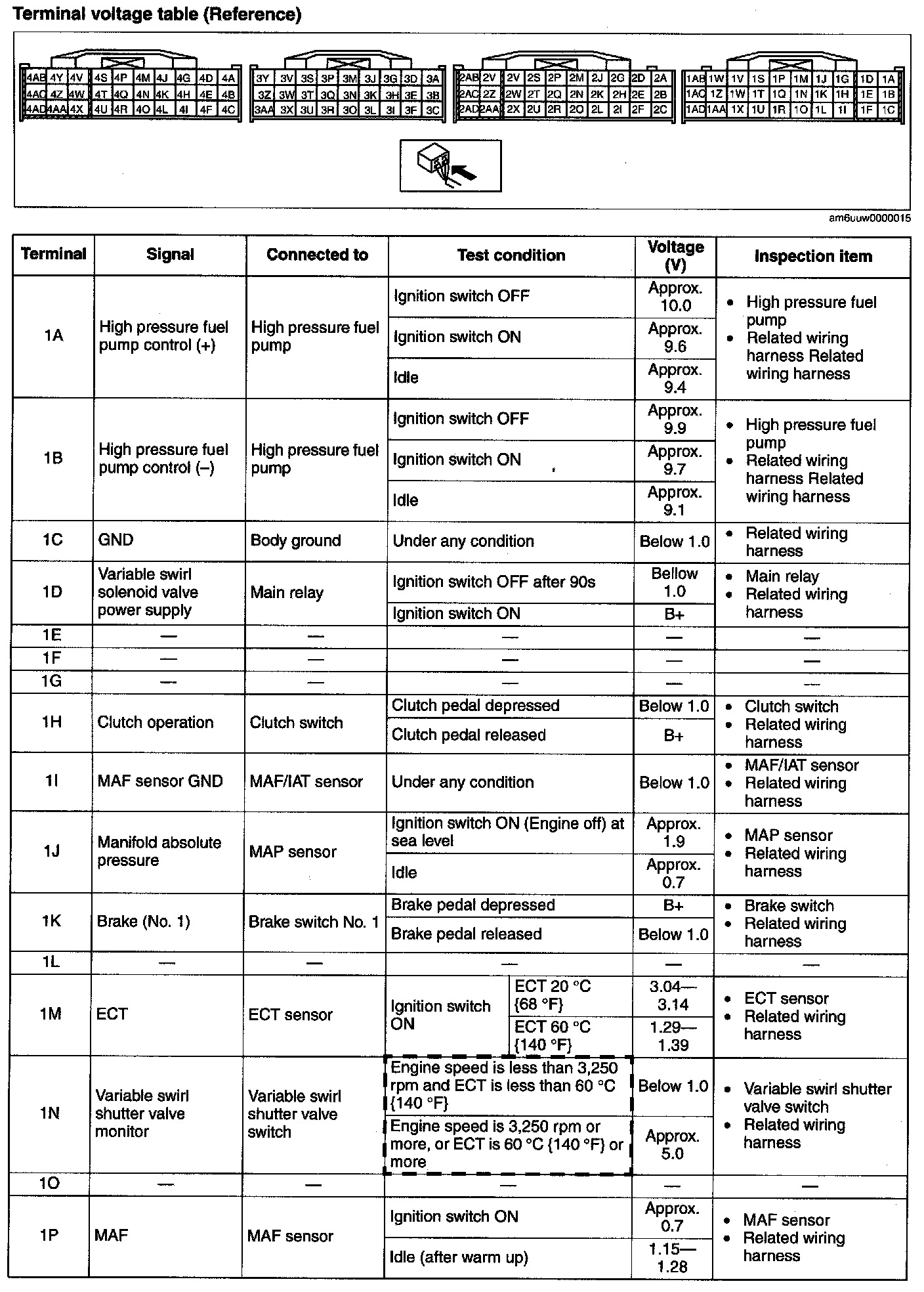

Terminal Voltage Table(Reference)-Terminal(1A-1P):

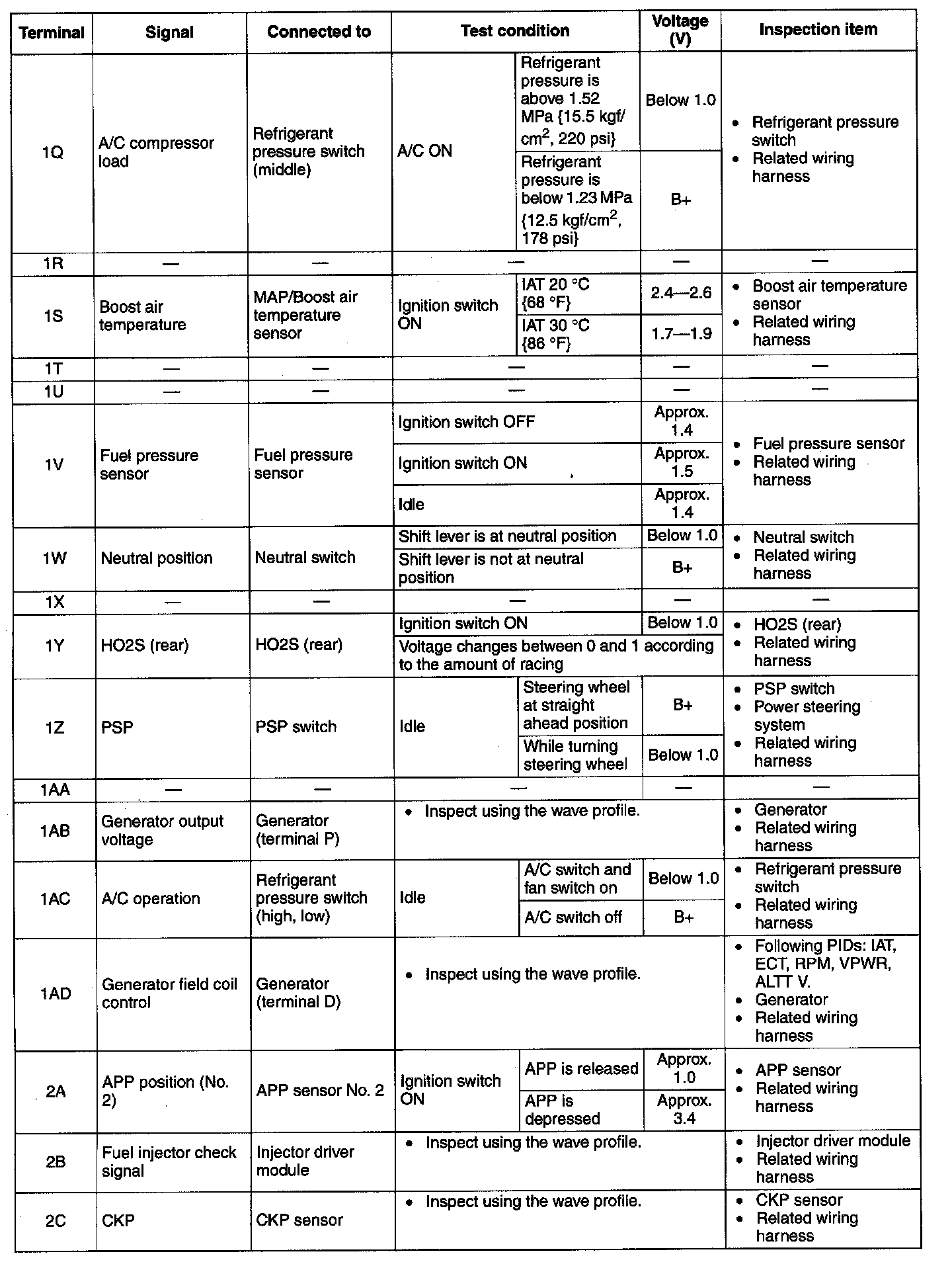

Terminal Voltage Table(Reference)-Terminal(1Q-2C):

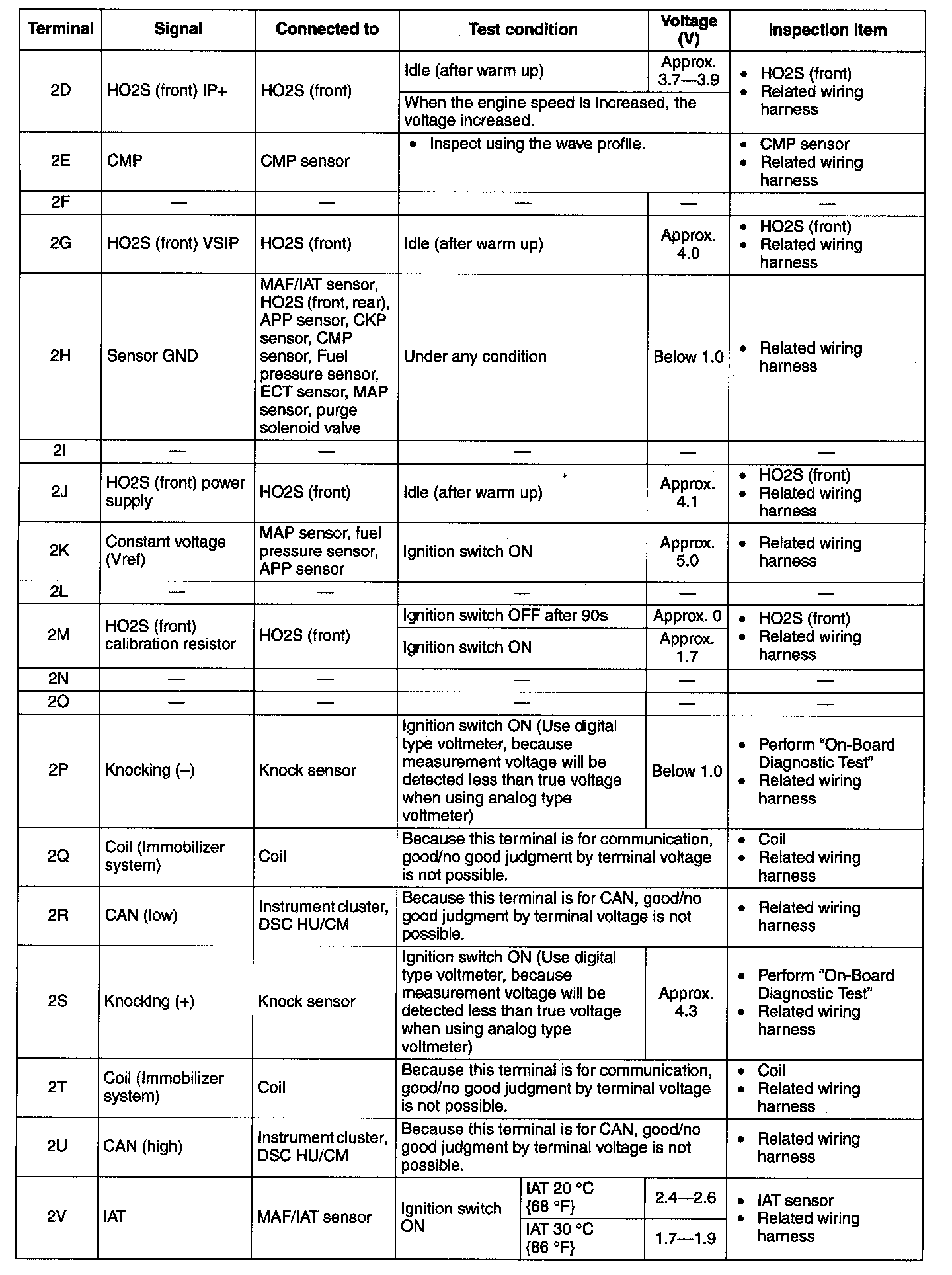

Terminal Voltage Table(Reference)-Terminal(2D-2V):

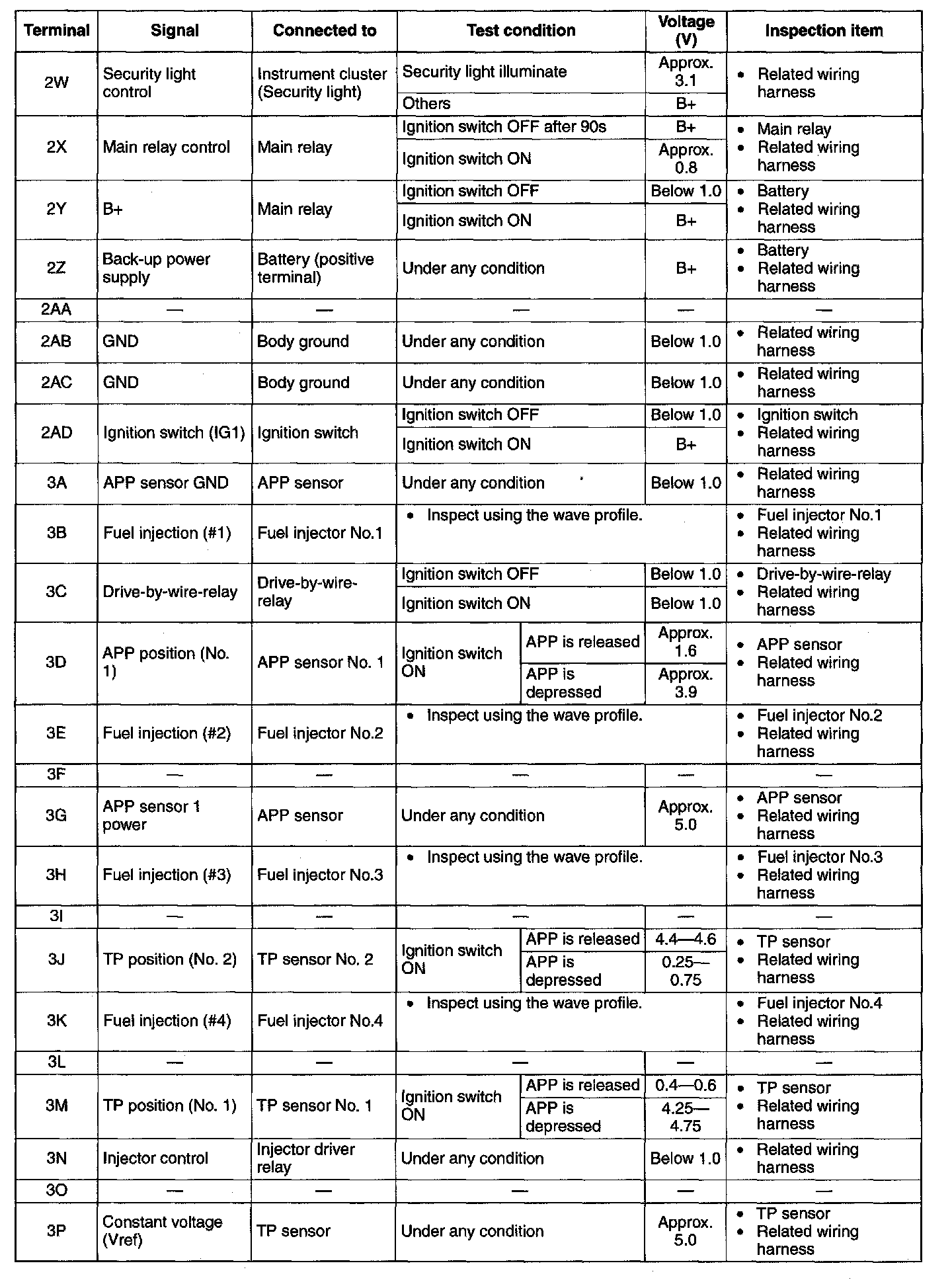

Terminal Voltage Table(Reference)-Terminal(2W-3P):

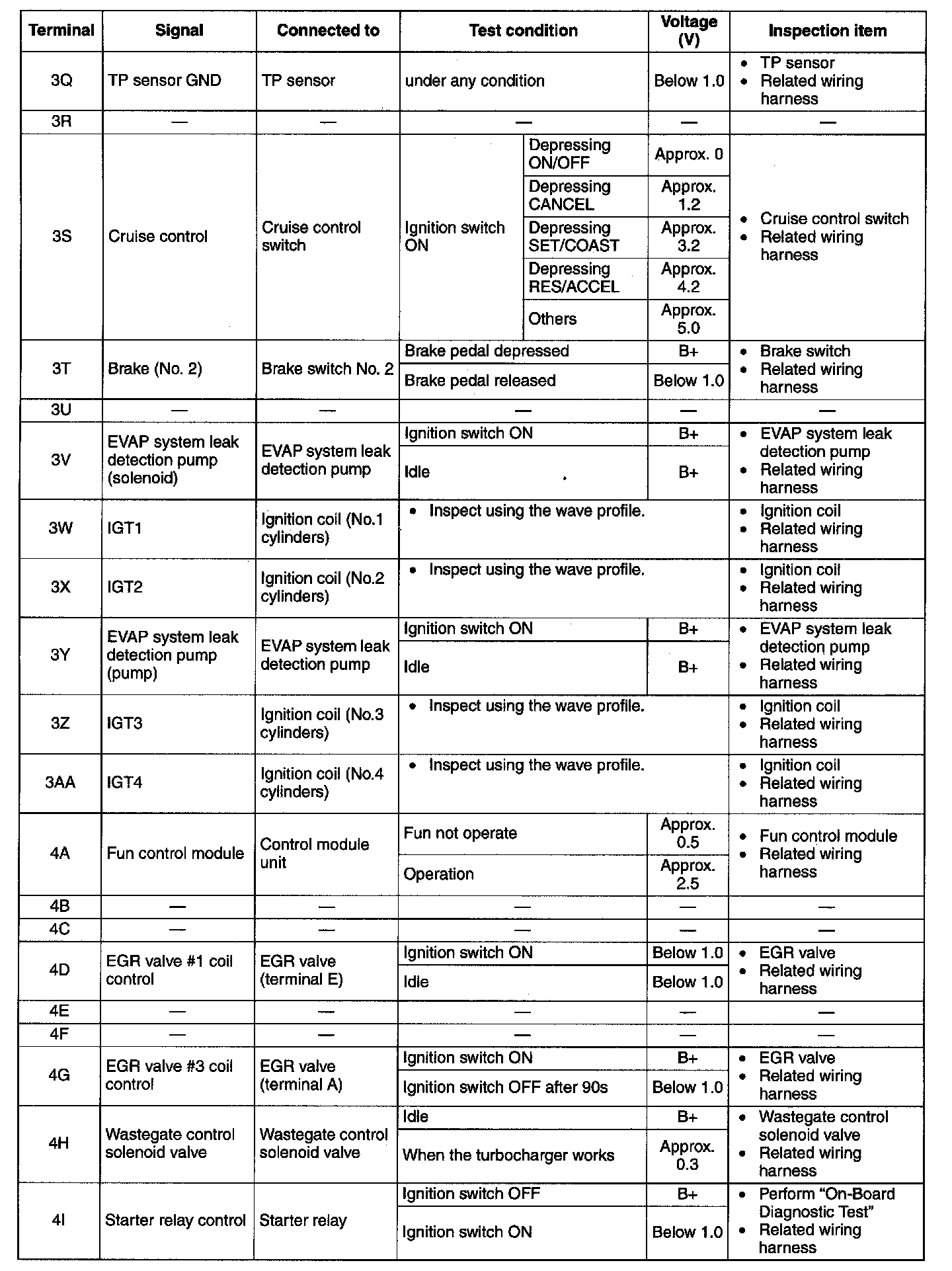

Terminal Voltage Table(Reference)-Terminal(3Q-4I):

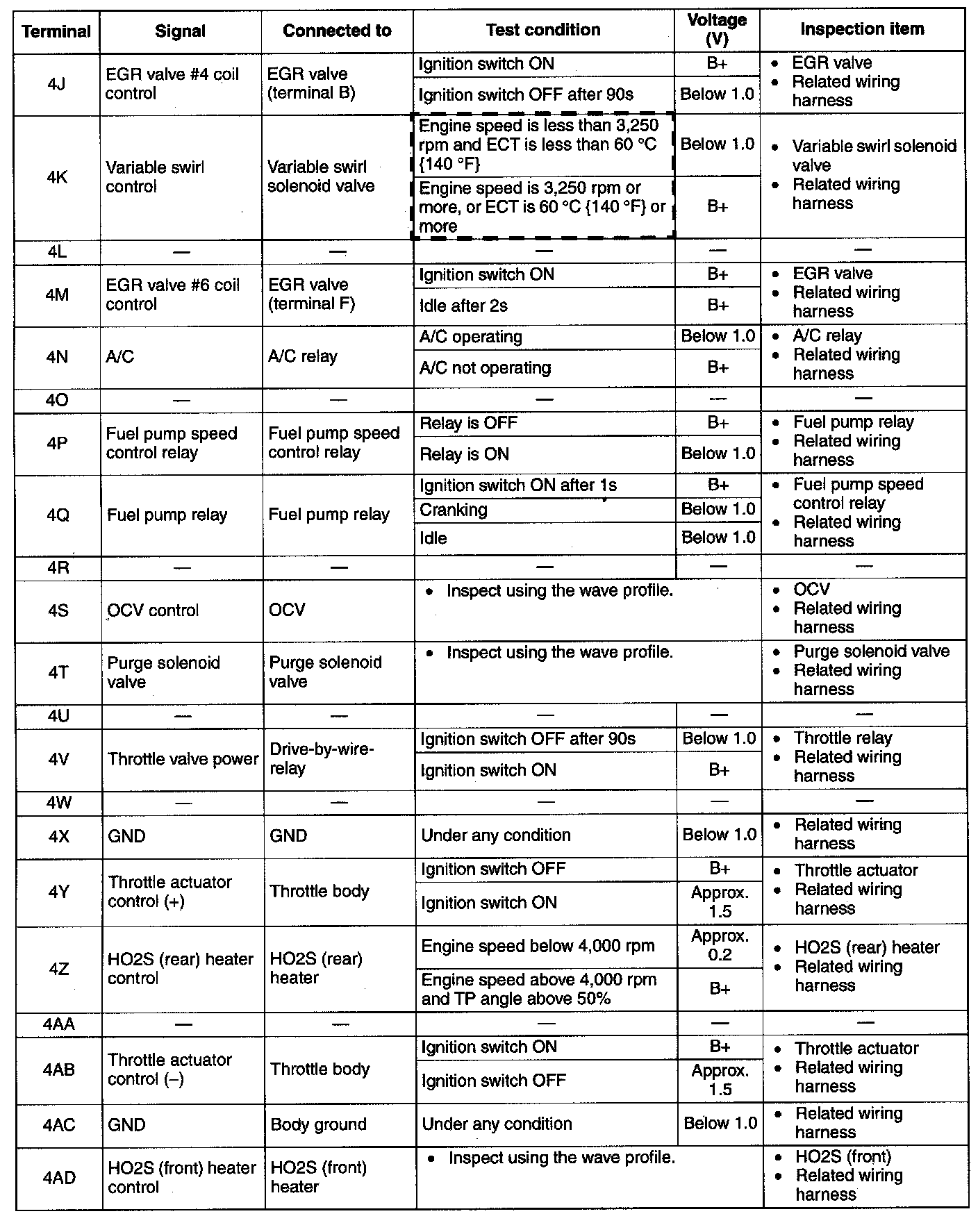

Terminal Voltage Table(Reference)-Terminal(4J-4AD):
