Oil Pan, Engine

Oil Pan

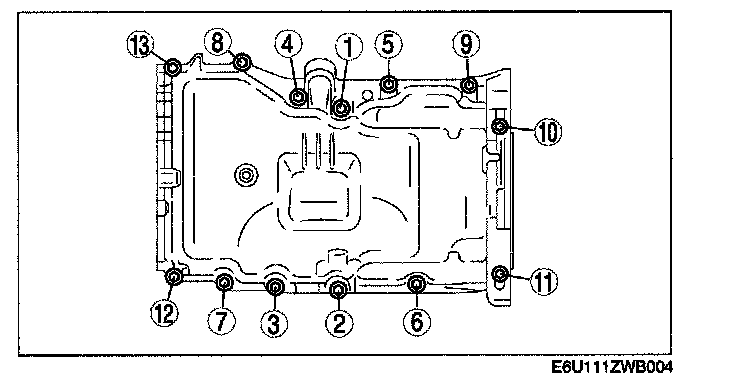

Tighten the bolts in the order shown in the figure.
Tightening torque 17 - 23 Nm (1.8 - 2.3 kgf.m, 12.6 - 16.9 ft. lbf)
