Timing Cover









Engine Front Cover

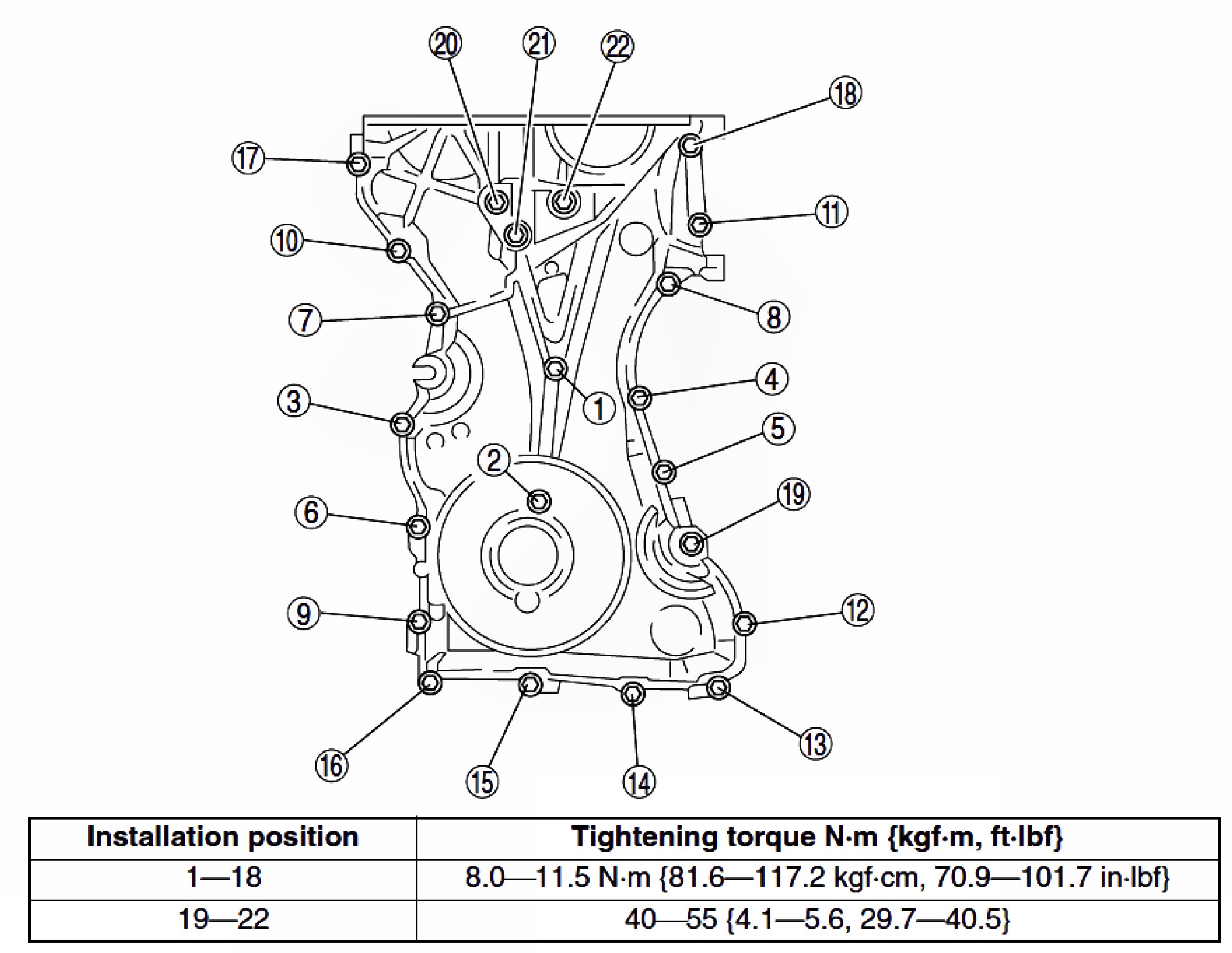

Tighten the engine front cover installation bolts in the order shown in the figure.
