Engine Disassembly/Assembly

ENGINE DISASSEMBLY/ASSEMBLY
1. Remove the engine from the transmission.
2. Remove the following parts:
(1) The clutch unit (MT)
(2) The drive plate (AT)
(3) The intake-air system
(4) The exhaust system
(5) The primary fuel injector and wiring harness

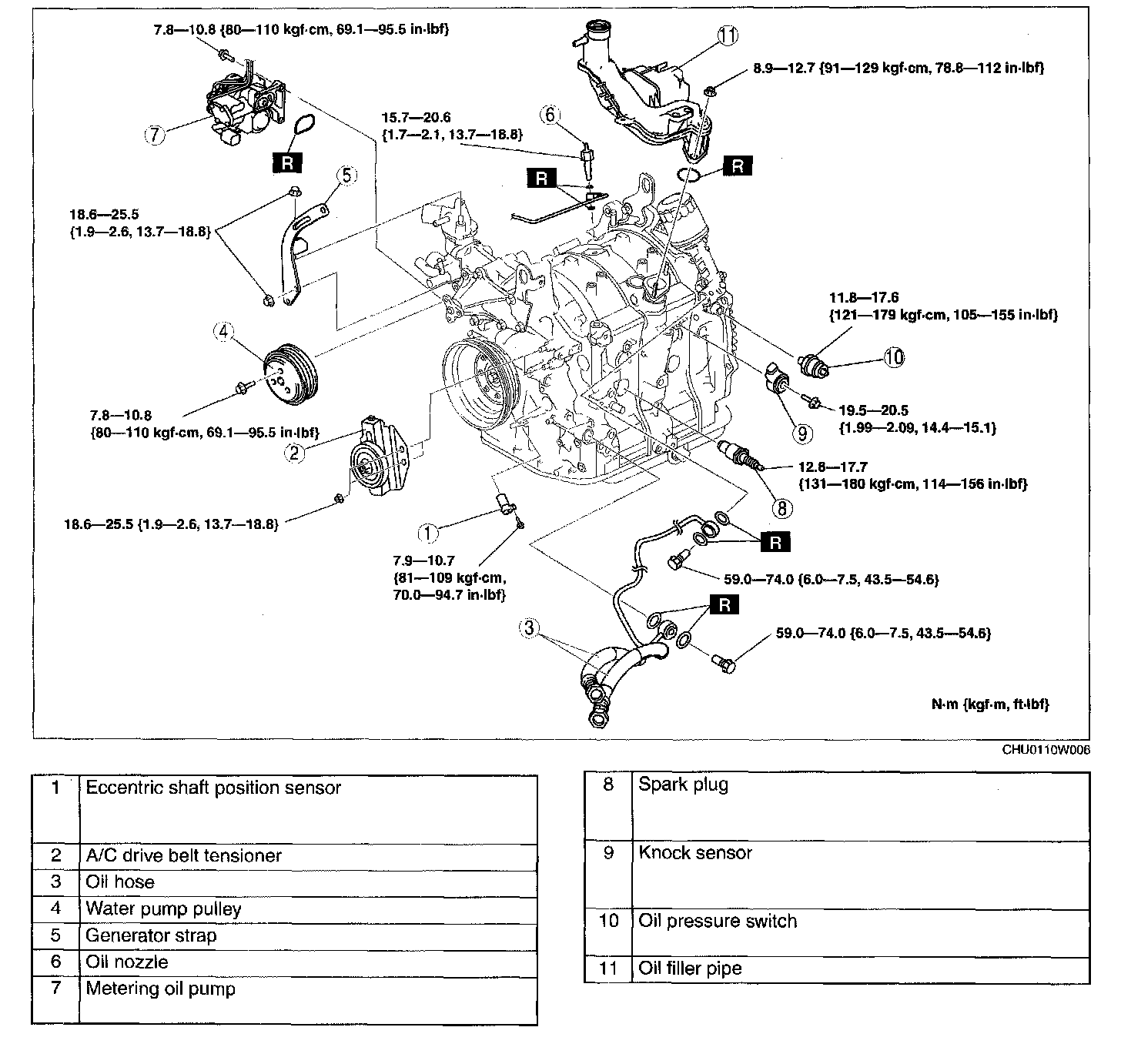

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
