Specification (Unloaded Condition)

Specification (Unloaded Condition)
Front wheel alignment [Standard suspension]

Front Wheel Alignment [Standard Suspension]:

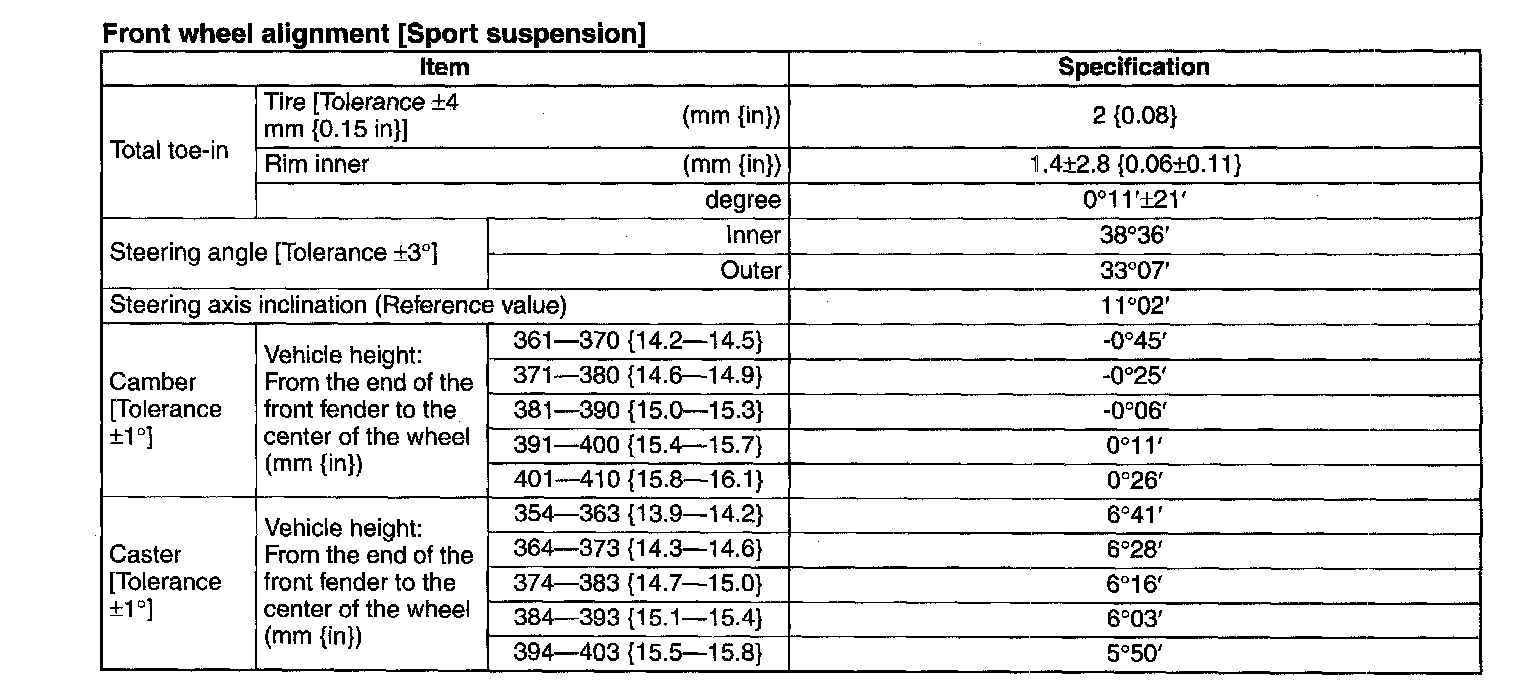

Front wheel alignment [Sport suspension]

Front Wheel Alignment [Sport Suspension]:

Note:
^ Unloaded vehicle: Fuel tank is full. Engine coolant and engine oil are at specified level. Jack and tools are in designated position.
^ Difference between the left and right dimension for camber and caster is within 1°.
