Camber Adjustment

Camber Adjustment

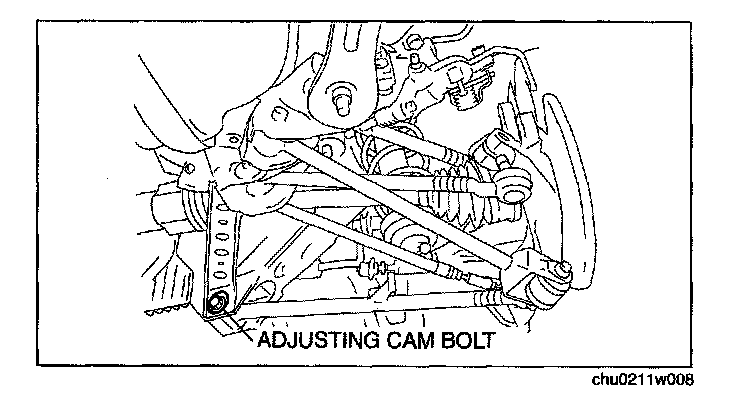

1. Loosen the fixing nut of the adjusting cam bolt (rear lateral link (lower)).

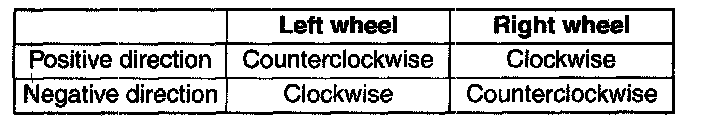

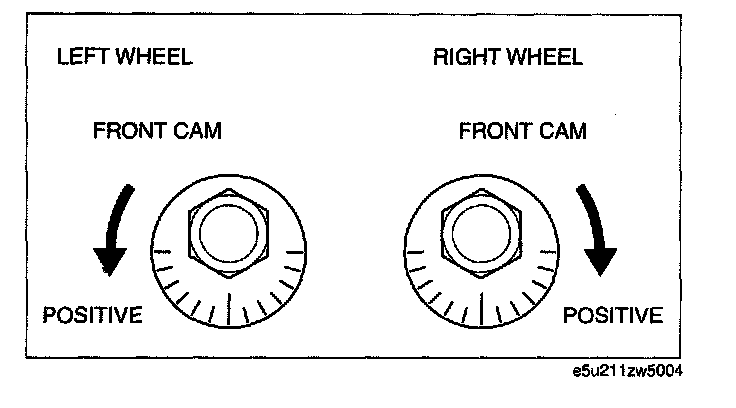

2. Rotate the adjusting cam bolt in either direction to adjust the camber.

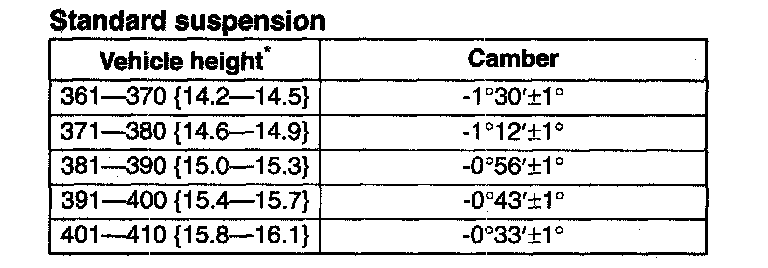

Standard Suspension:

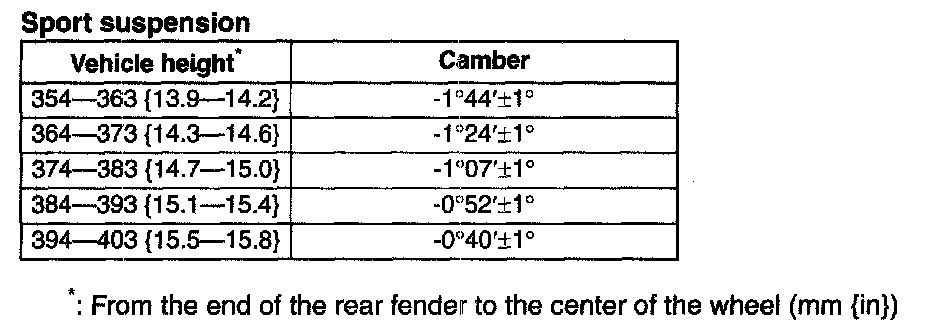

Sports Suspension:

Note:

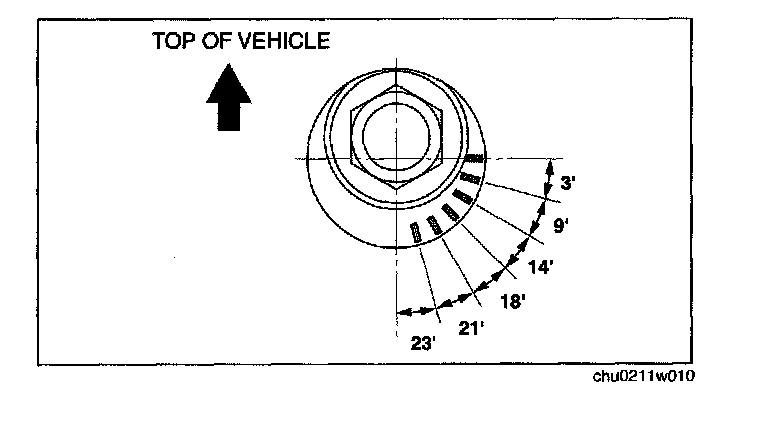

^ Refer to the figure for the adjusting angle per one graduation.

3. Tighten the nut.
Tightening torque 117.7-137.3 N-m (12.1-14.0 kgf-m, 86.9-101.2 ft-lbf)
