Total Too-In Adjustment

Total Too-in Adjustment

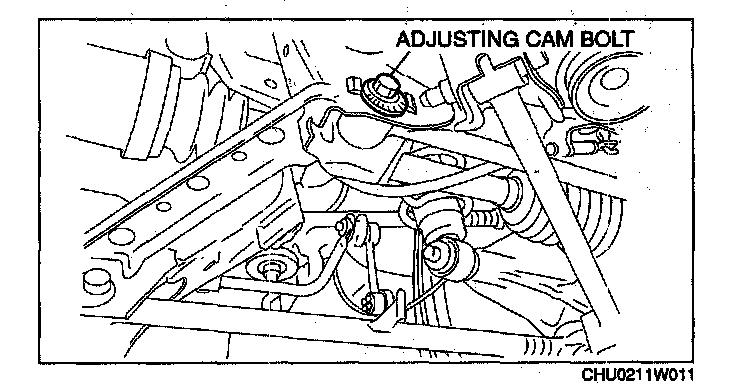

1. Loosen the installation nut of the adjusting cam bolt.





2. Rotate the adjusting cam bolt in either direction to adjust the toe-in.
Standard 2±4 mm (0.08±0.15 in) (0°16'±20')





Note:

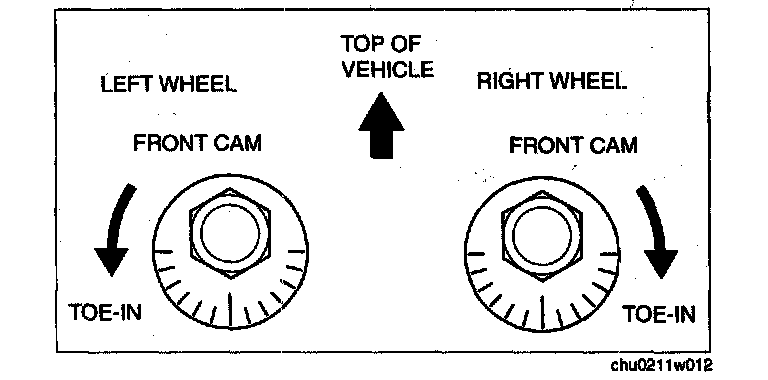

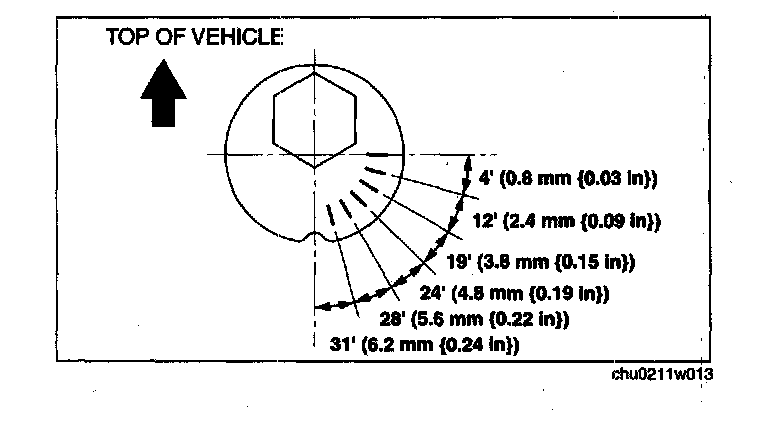

^ Refer to the following figure for the adjusting angle per one graduation of the toe-in gauge.

3. Tighten the nut.
Tightening torque 70-95 N-m (7.2-9.6 kgf.m, 52-70 ft-lbf)
