Air Flow Meter/Sensor: Service and Repair

MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION
1. Remove the MAF/IAT sensor connector.

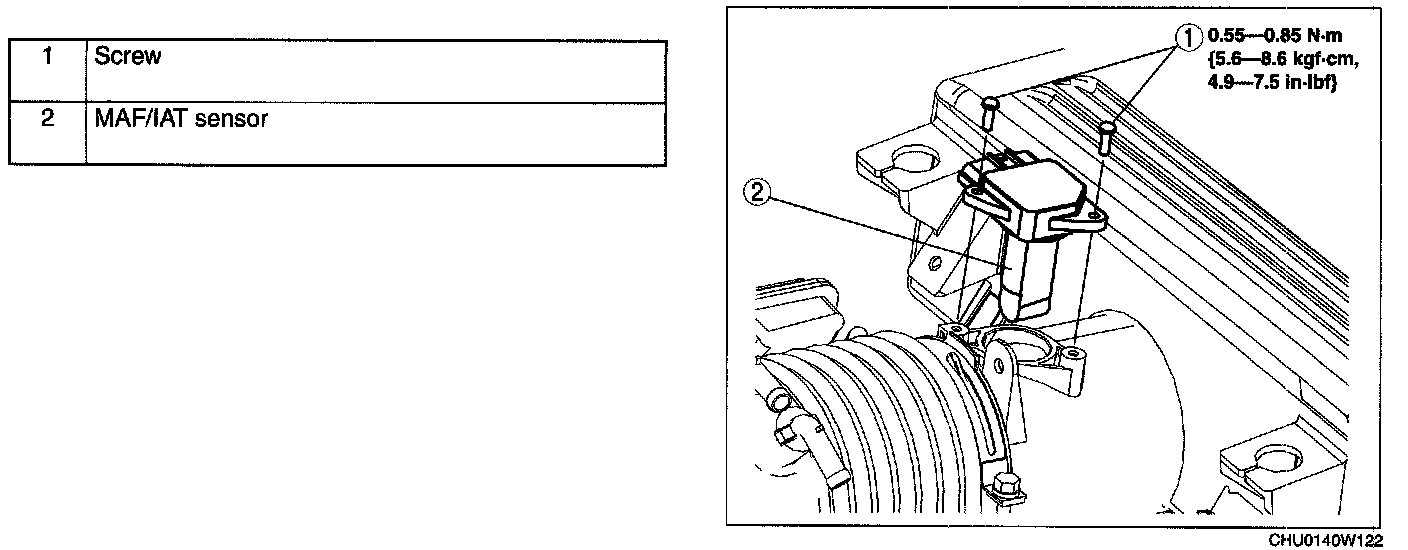

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

MAF/IAT Sensor Installation Note

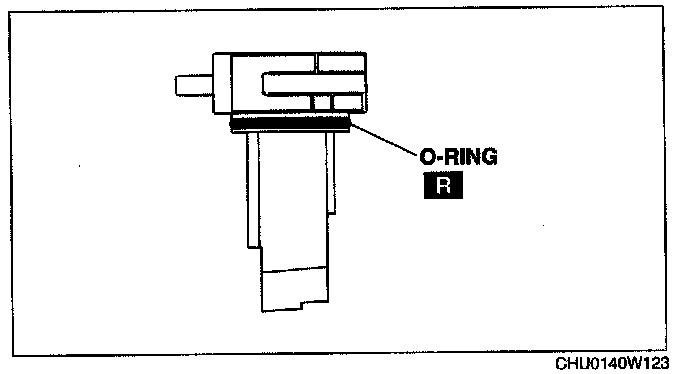

1. Before installation of the MAF/IAT sensor, replace the O-ring.

Screw installation Note
1. After installation of the screws, verify that the MAF/IAT sensor is installed securely.
