Simulation Function Procedure

Simulating Function Procedure

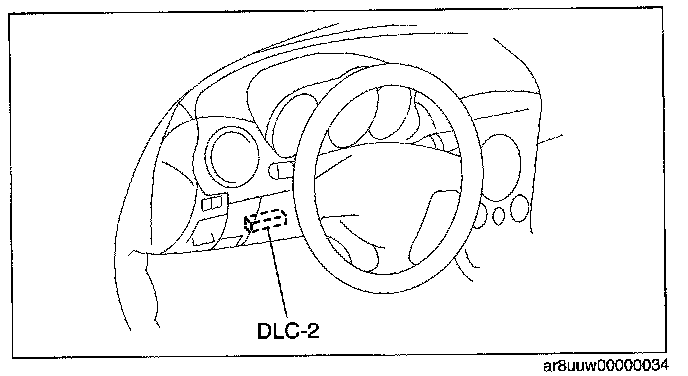

1. Connect the M-MDS to the DLC-2.
2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
- When using the IDS (laptop PC)
1. Select the "Toolbox" tab.
2. Select "DataLogger".
3. Select "Modules".
4. Select "PCM".

- When using the PDS (Pocket PC)
1. Select "Module Tests".
2. Select "PCM".
3. Select "DataLogger".

3. Select the simulating items from the PID table.
4. Perform the simulating function, inspect the operation for each parts.
- If there is no operation sound from the relay, motor, and solenoid after the simulation tunction inspection is performed, it is possible that there is an open or short circuit in the wiring harness, relay, motor or solenoid, or sticking and operation malfunction.
