Mechanical Specifications

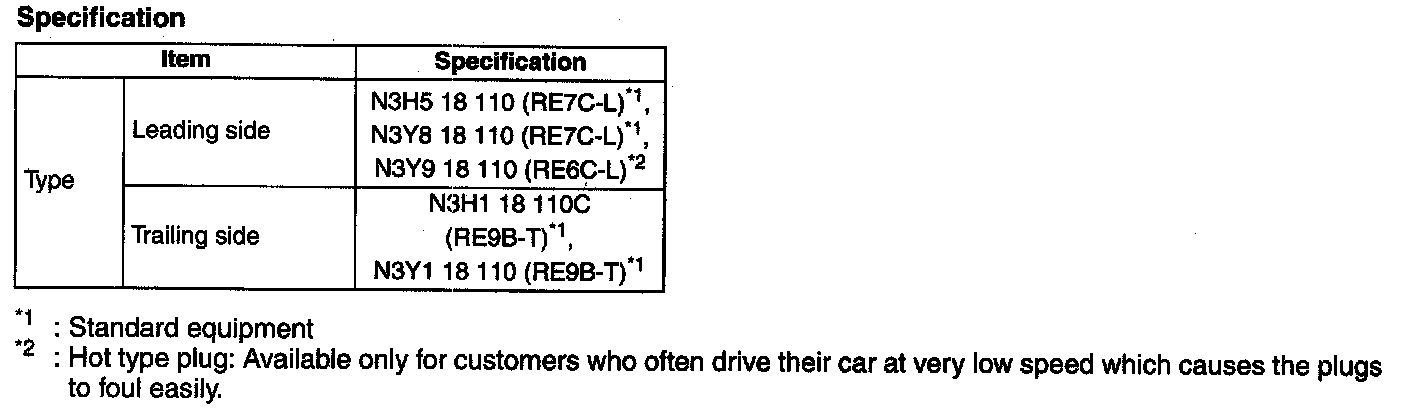

Specification

Spark Plug Inspection:

Standard plug gap 1.15-1.25 mm (0.046-0.049 in)

Maximum plug gap
Leading side 1.5 mm {0.059 in}
Trailing side 1.4 mm {0.055 in}

Tightening torque 12.8-17.7 N.m {131-180 kgf-cm, 114 - 156 in-lbf}
