Fuel Injector

Fuel Injector

Resistance
Approx. 13.8 ohms [20 °C (68 °F}]

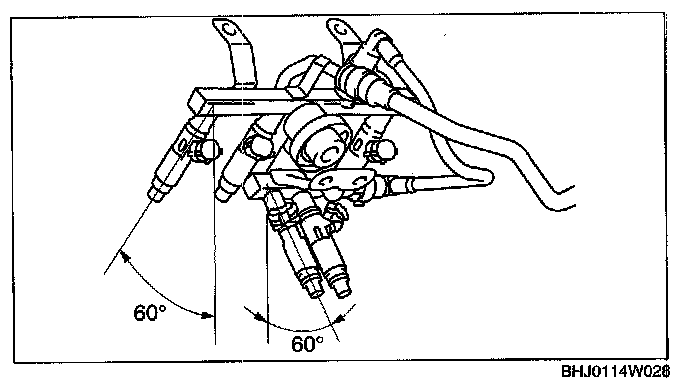

Tilt the fuel injector at an angle of 60° to inspect for leakage.

Test condition
- Fuel pressure: 392 kPa {4.00 kgf/sq.cm, 56.9 Psi}

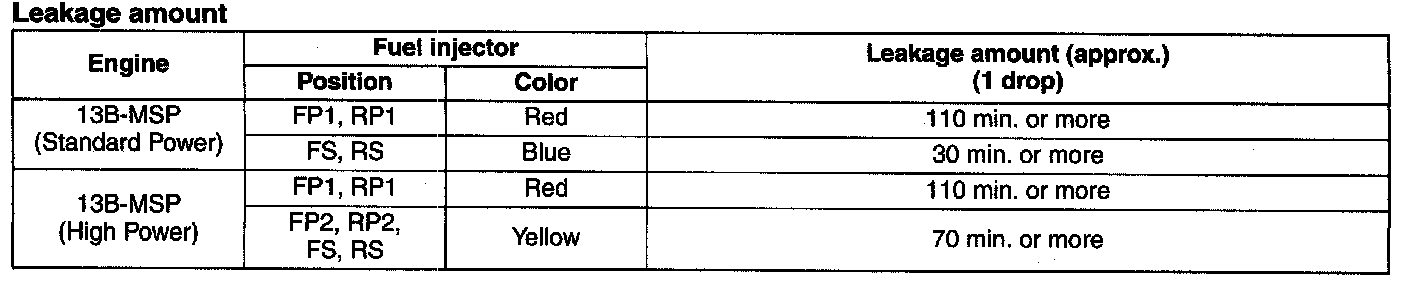

Leakage Amount:

- Atmosphere temperature: Normal temperature

Wait 5 min and measure the fuel hold pressure.

Fuel hold pressure
200 kPa {2.0 kgf/sq.cm, 29 psi}
