Transmission/Transaxle Technical Data

TRANSMISSION/TRANSAXLE TECHNICAL DATA

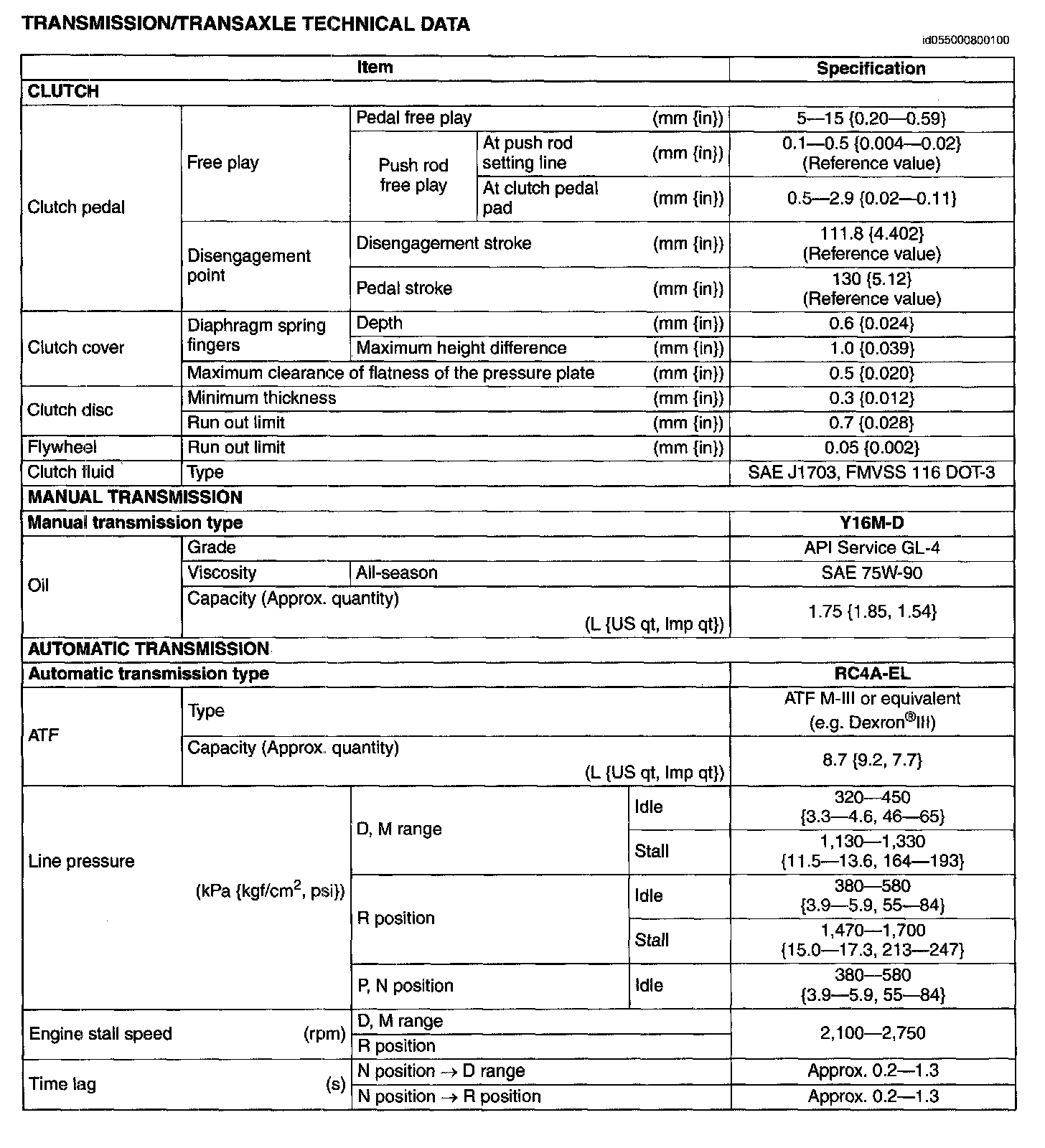

TRANSMISSION/TRANSAXLE TECHNICAL DATA (Part 1):

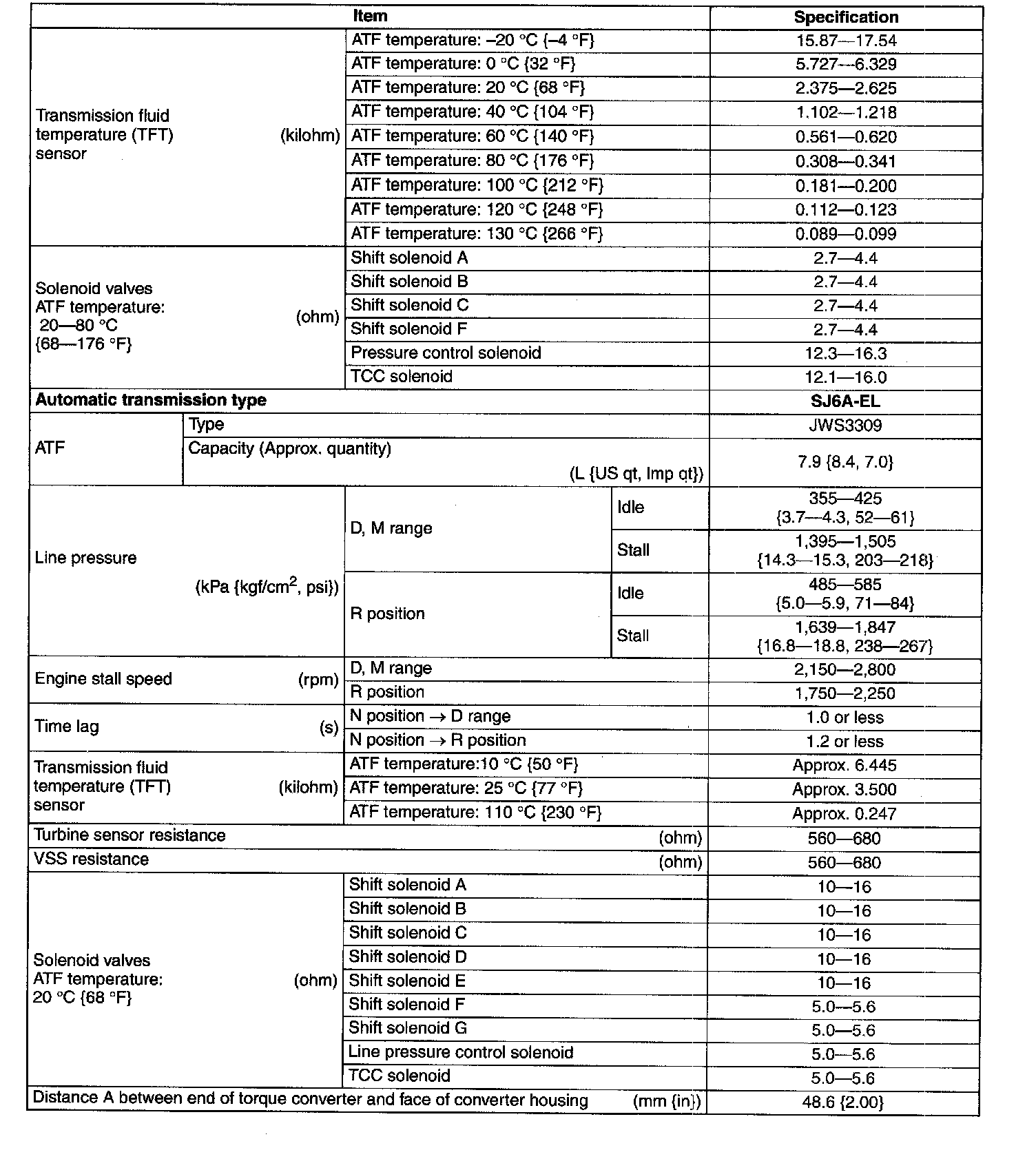

TRANSMISSION/TRANSAXLE TECHNICAL DATA (Part 2):

[RC4A-El] Automatic Transmission/Transaxle

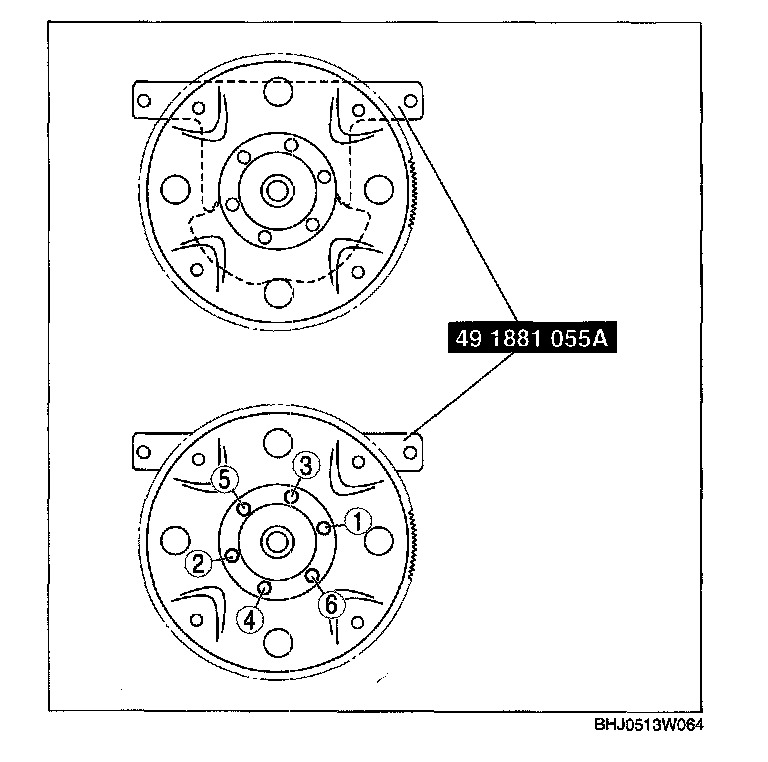

Drive Plate
Tightening torque 41.2-56.8 N-m (4.2-5.7 kgf-m, 30.4-41.8 ft-lbf)

Transmission Pan
Tightening torque 7.0-9.0 N-m (72-91 kgf-cm, 63-78 in-lbf)

[SJ6A-El] Automatic Transmission/Transaxle





Drive Plate
Tightening torque 41.2-56.8 N-m (4.2-5.7 kgf-m, 30.4-41.8 ft-lbf)

Transmission Pan
Tightening torque 3.9-4.9 N-m (40-49 kgf-cm, 35-42 in-lbf)
