System Specifications

TRANSMISSION/TRANSAXLE TECHNICAL DATA (Part 1):




TRANSMISSION/TRANSAXLE TECHNICAL DATA (Part 2):





TRANSMISSION/TRANSAXLE TECHNICAL DATA





Clutch Disc

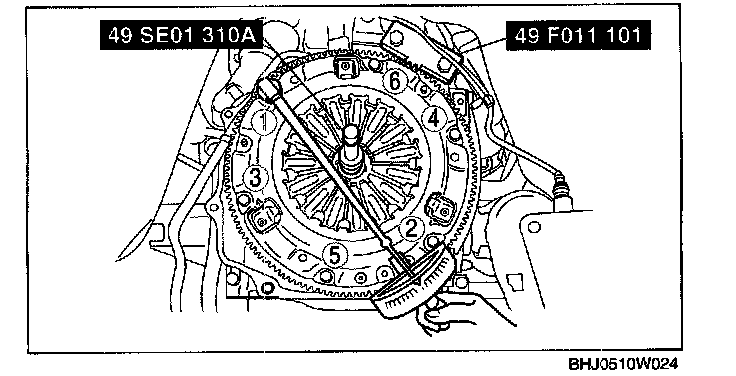

Tighten the bolts evenly and gradually in the order shown in the figure.
Tightening torque 22.1-33.1 N-m (2.26-3.37 kgf-m, 16.3-24.4 ft-lbf)
