Symptom Related Diagnostic Procedures

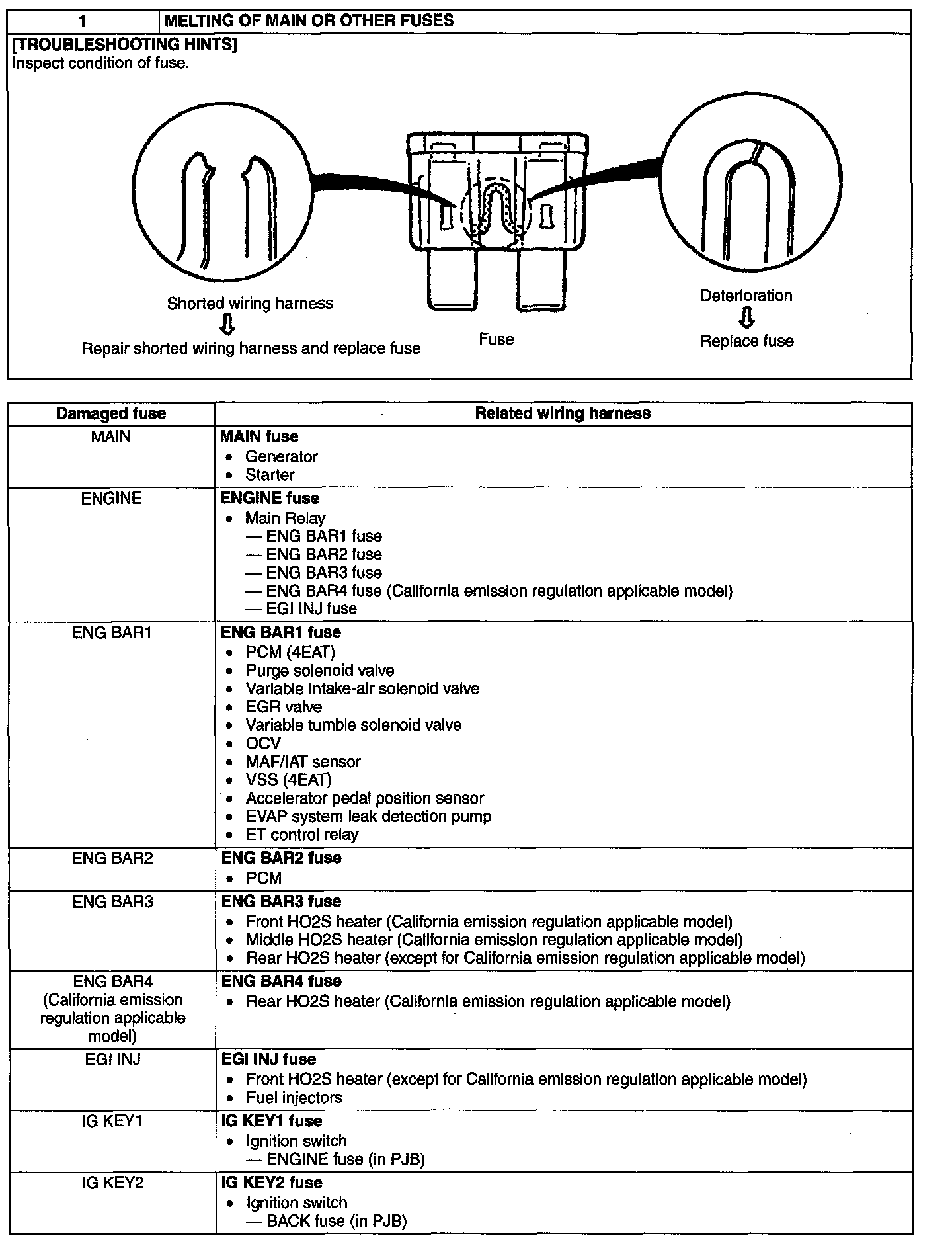

No.1 Melting Of Main Or Other Fuses [LF, L3] (Part 1):

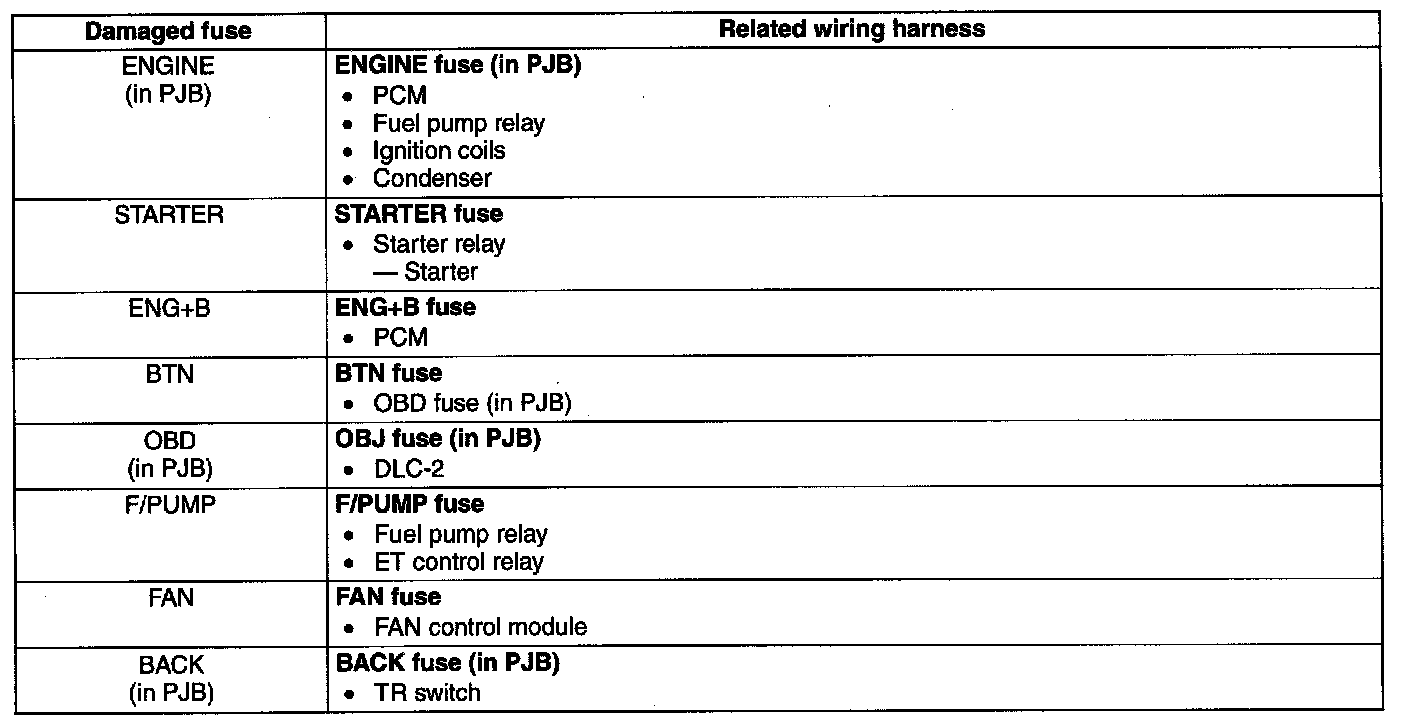

No.1 Melting Of Main Or Other Fuses [LF, L3] (Part 2):
