System Schematic

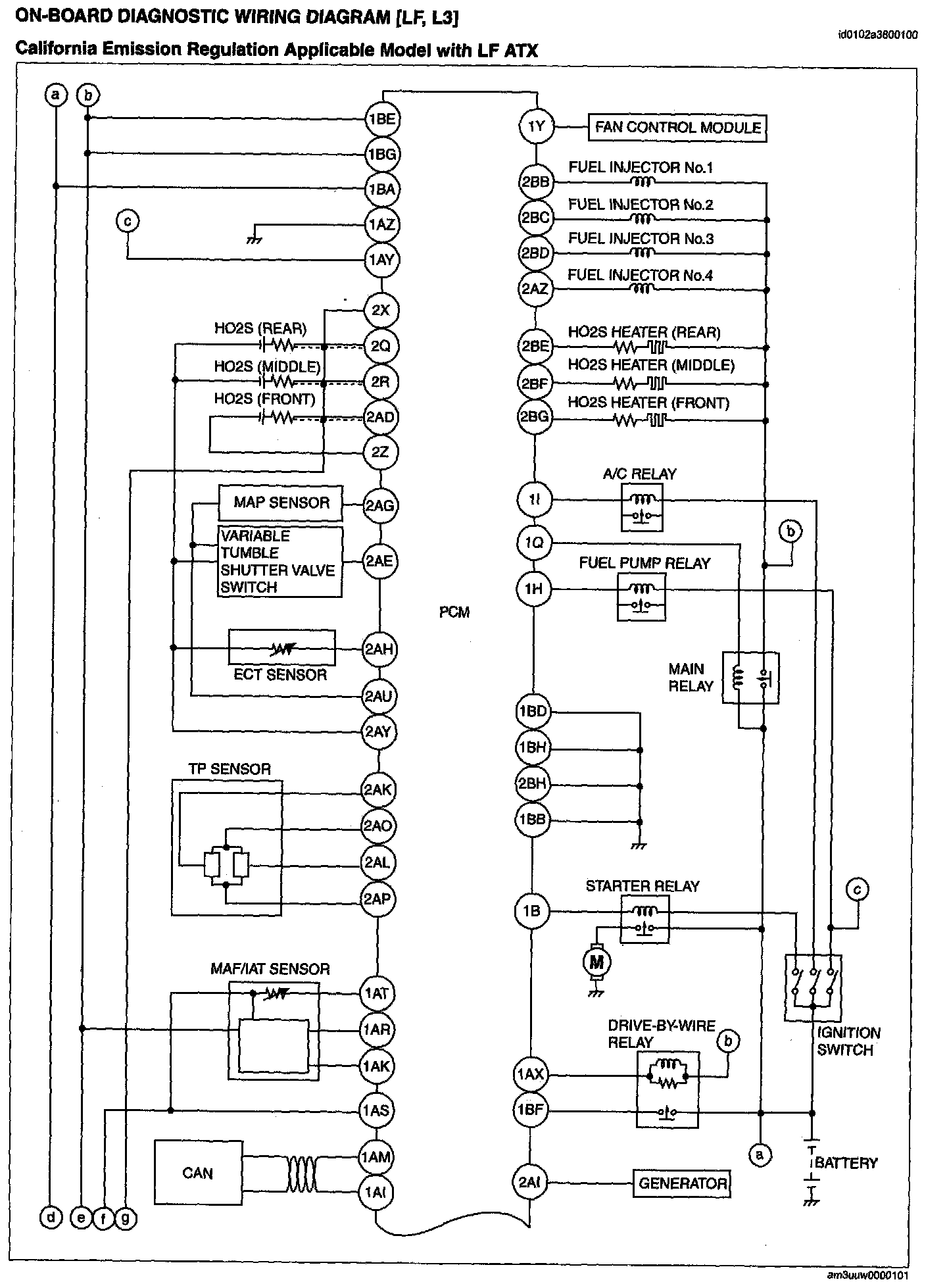

California Emission Regulation Applicable Model With LF ATX (Part 1):

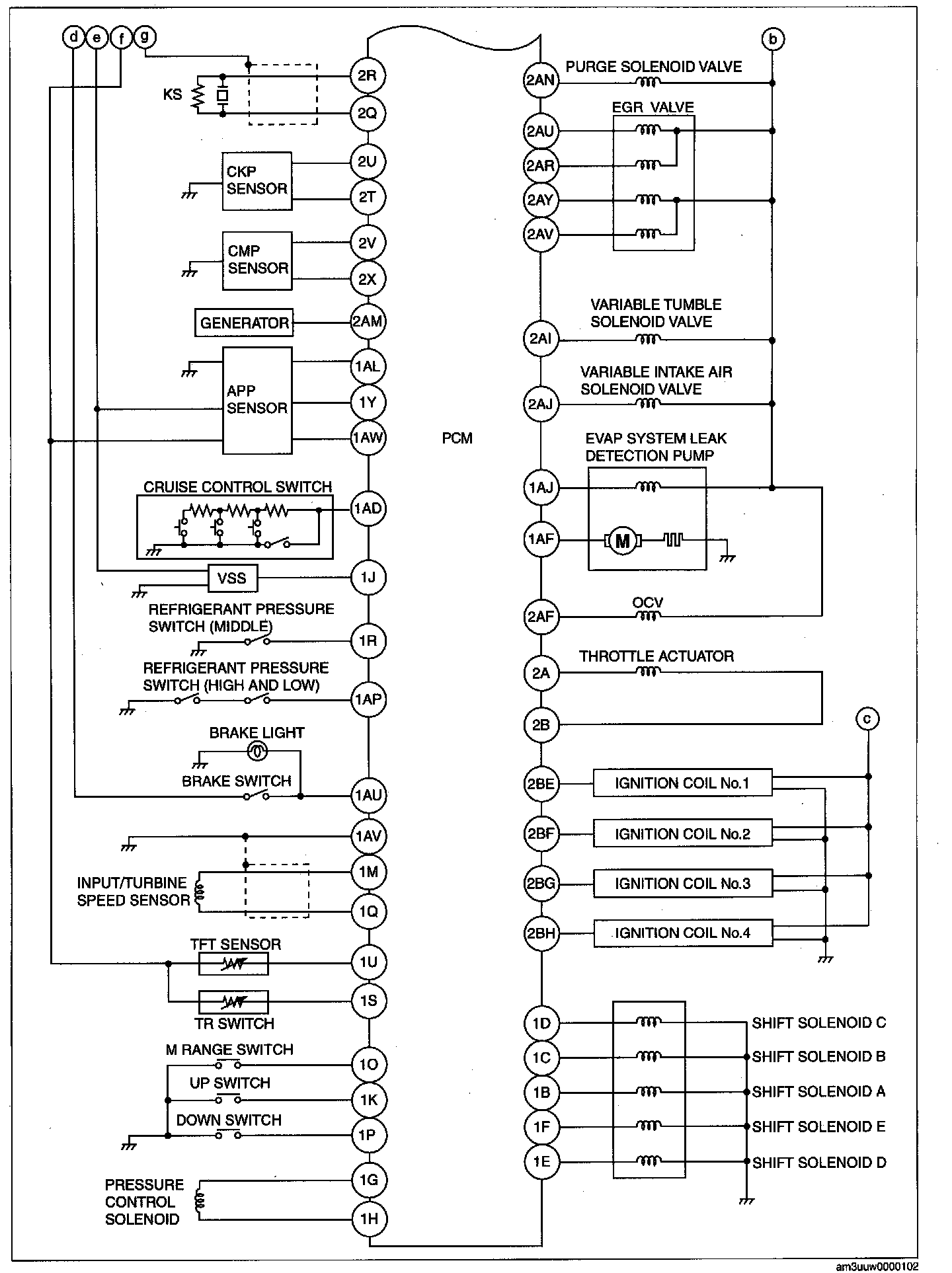

California Emission Regulation Applicable Model With LF ATX (Part 2):

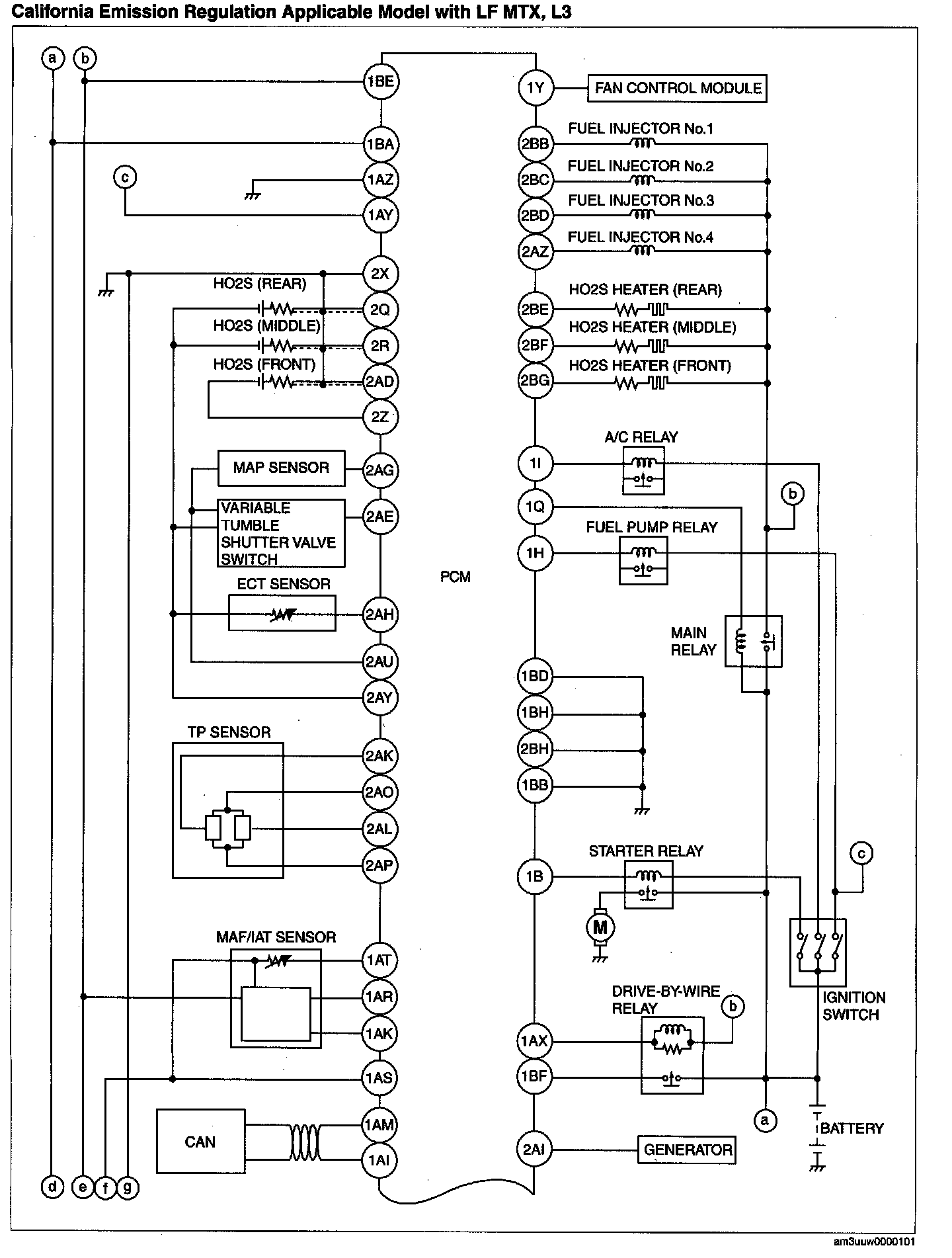

California Emission Regulation Applicable Model With LF MTX, L3 (Part 1):

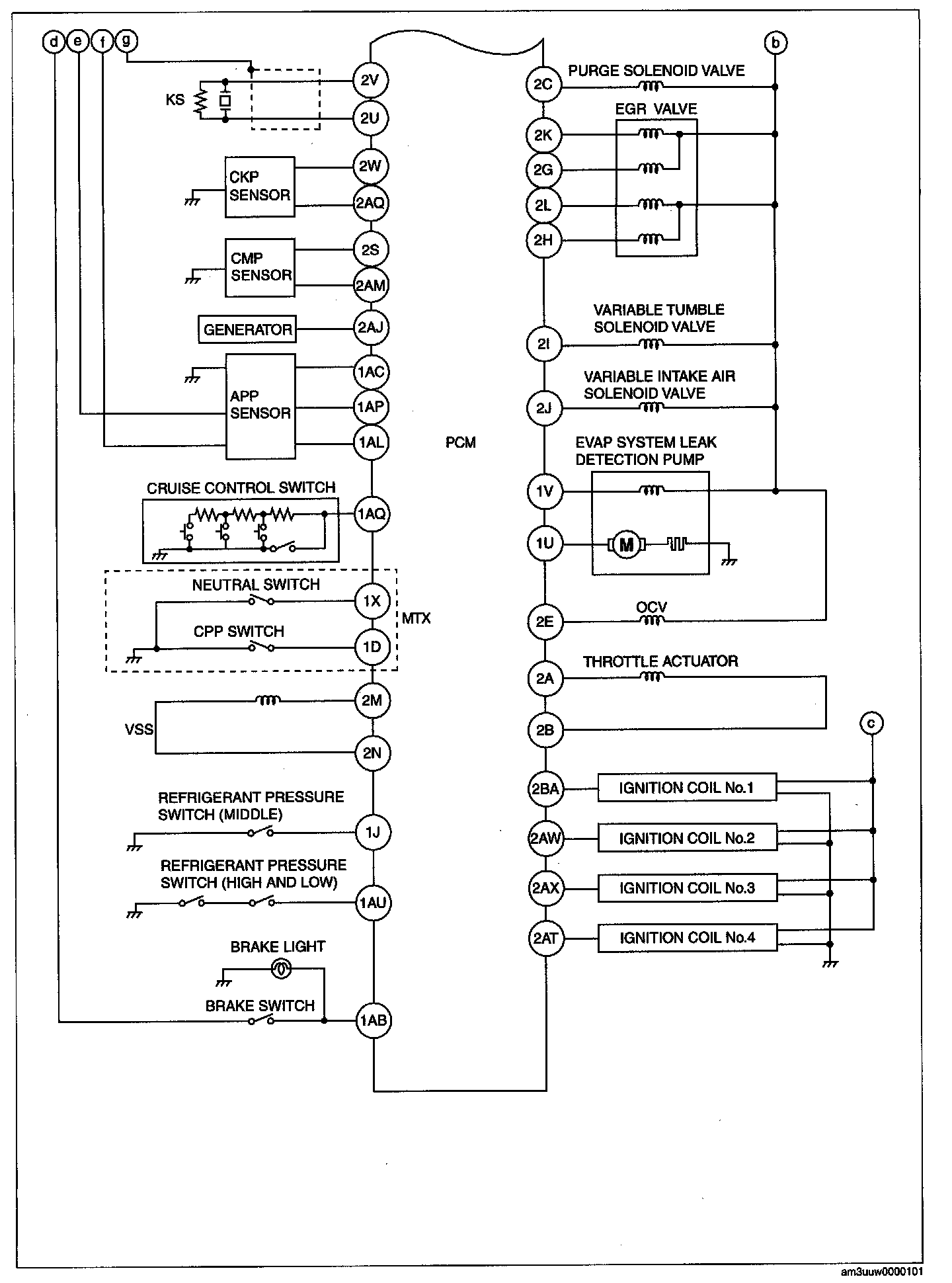

California Emission Regulation Applicable Model With LF MTX, L3 (Part 2):

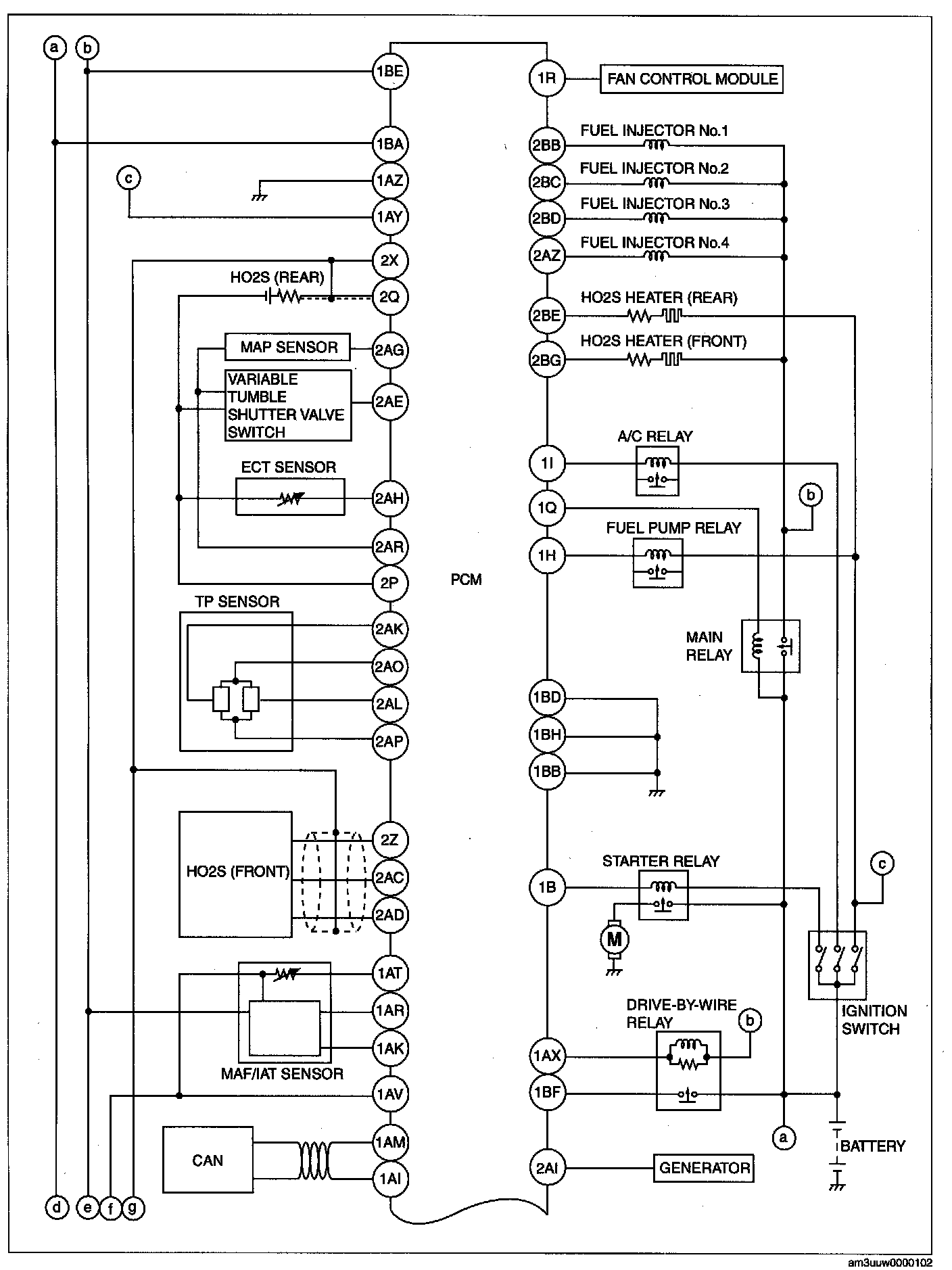

Except For California Emission Regulation Applicable Model With LF ATX (Part 1):

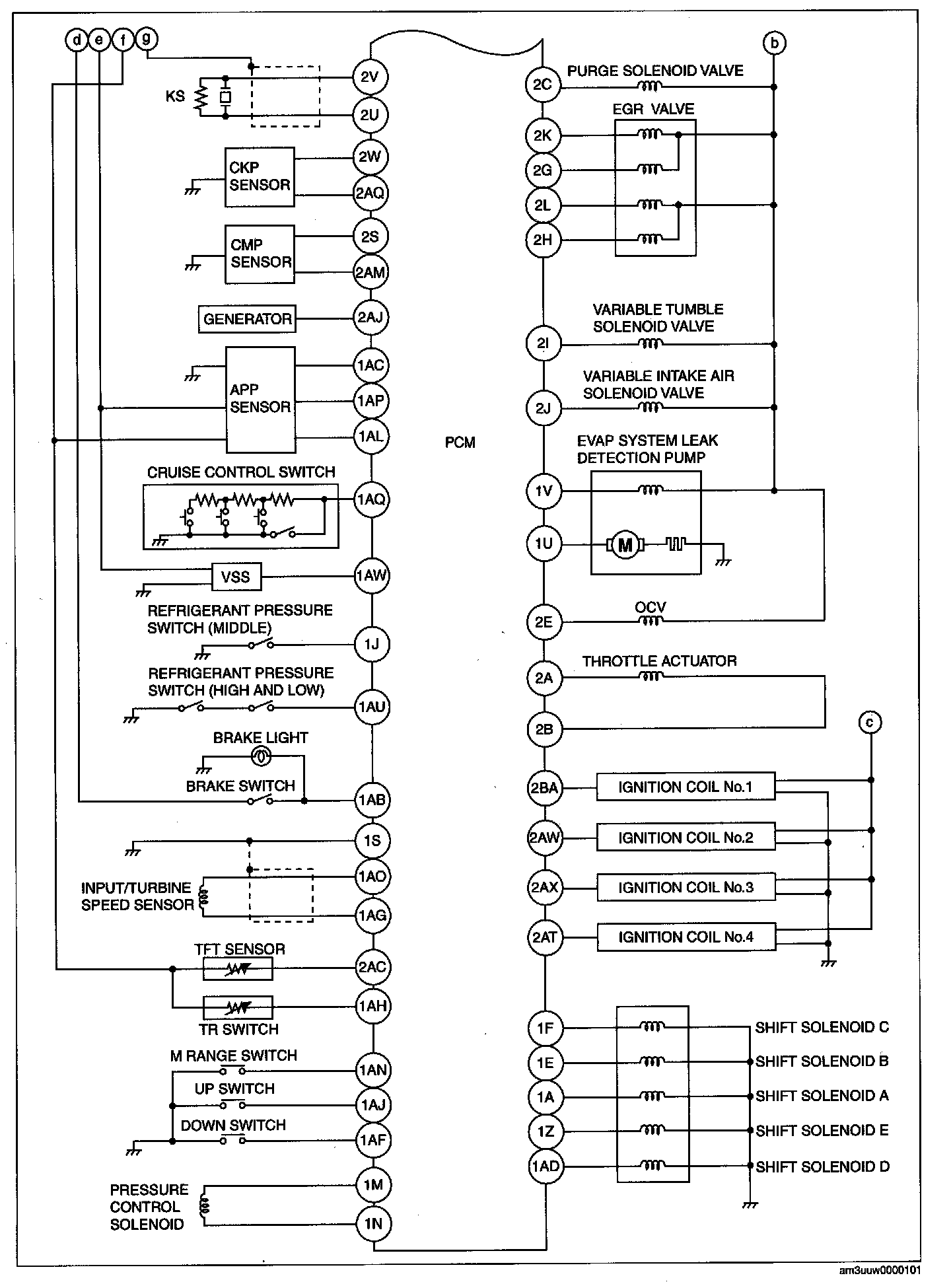

Except For California Emission Regulation Applicable Model With LF ATX (Part 2):

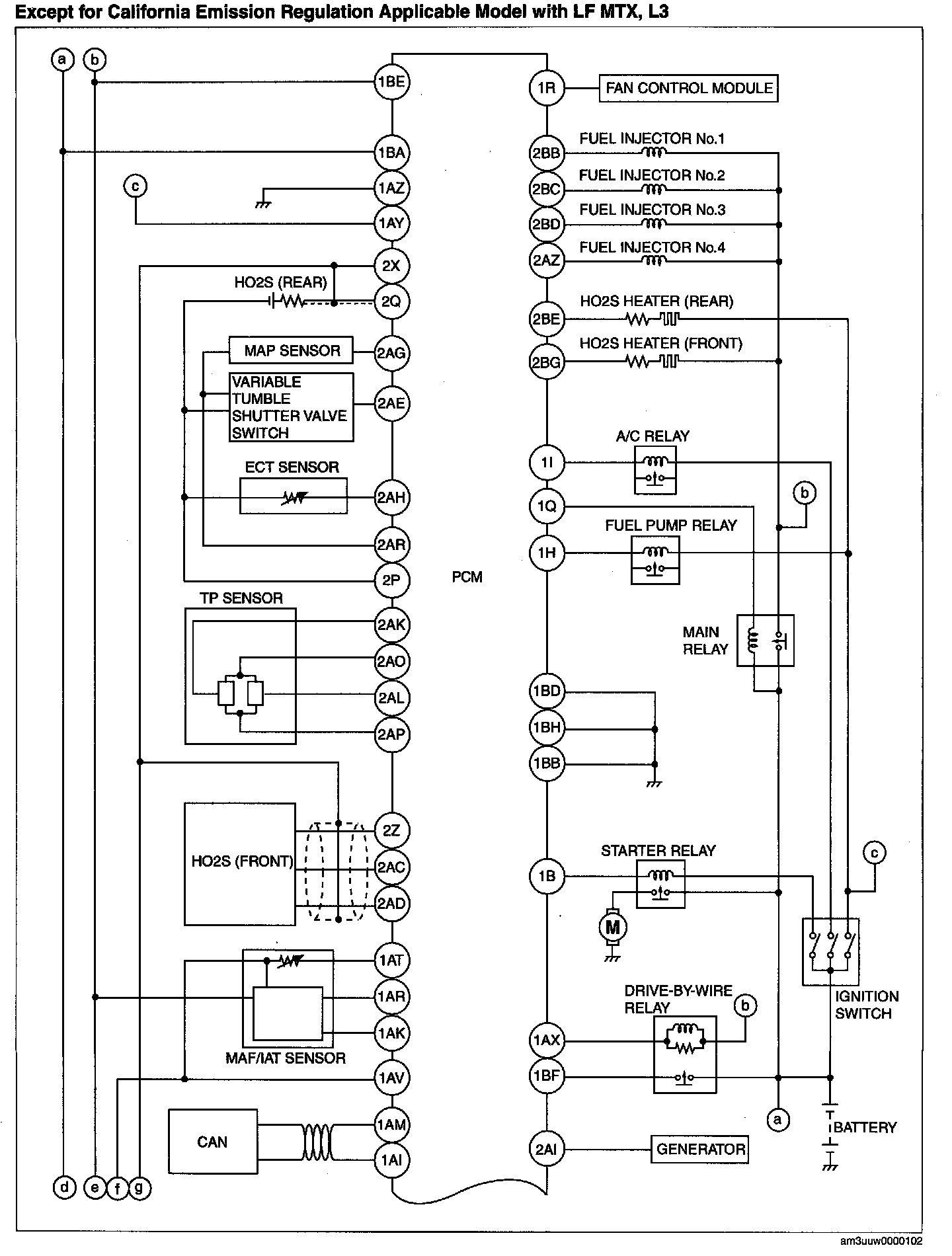

Except For California Emission Regulation Applicable Model With LF MTX, L3 (Part 1):

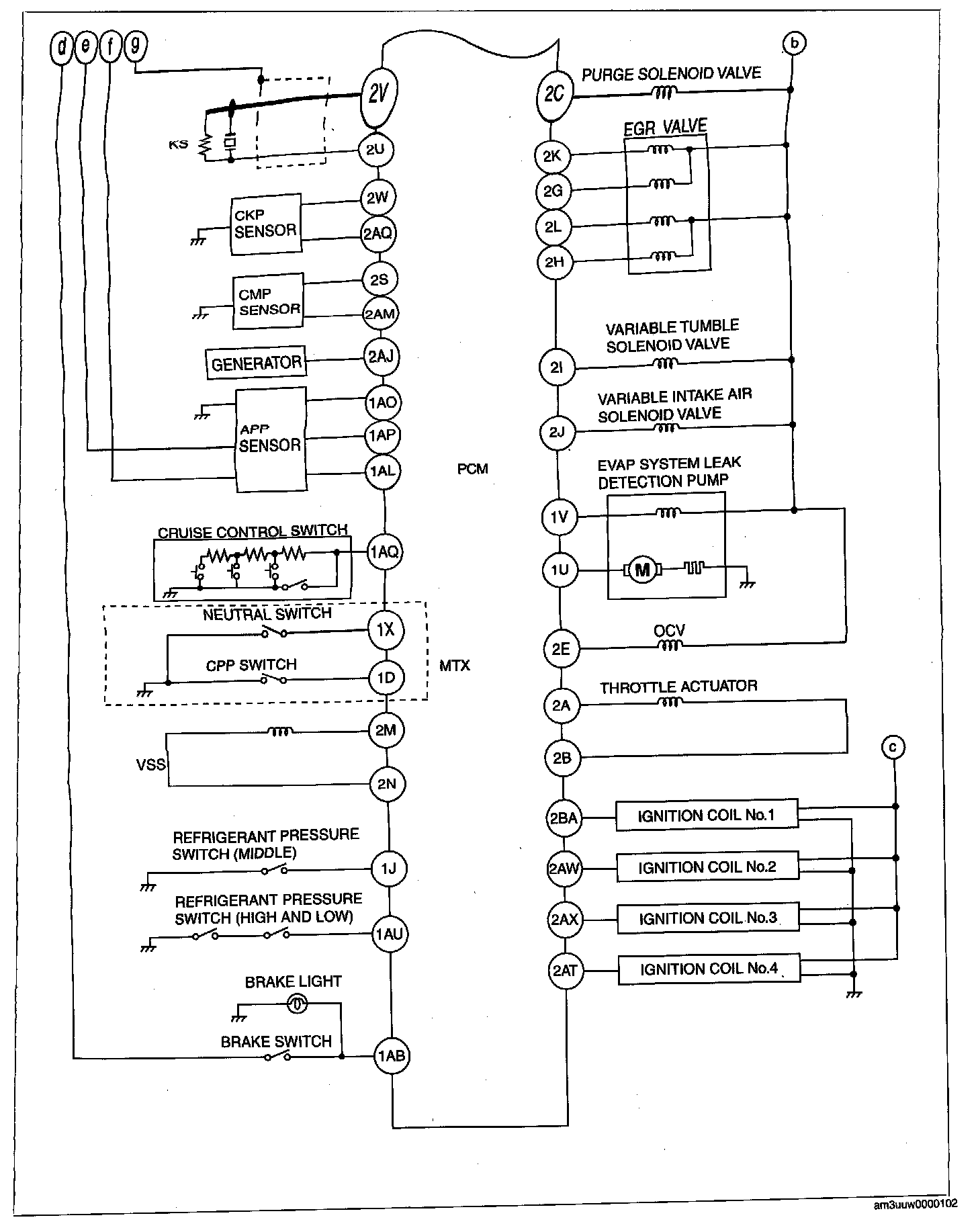

Except For California Emission Regulation Applicable Model With LF MTX, L3 (Part 2):
