Keyless Entry Transmitter: Testing and Inspection

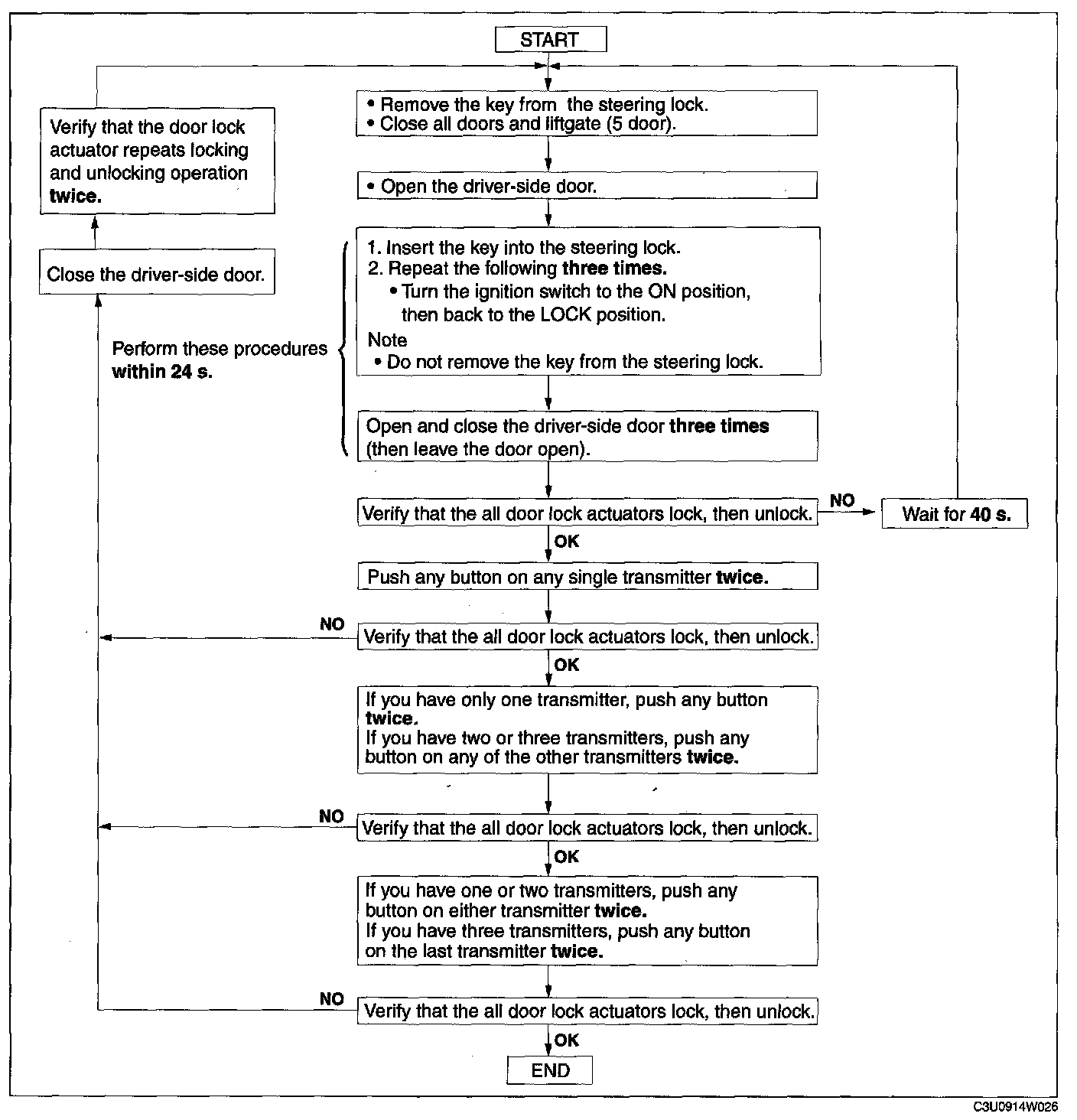

TRANSMITTER ID CODE REGISTRATION

NOTE:
- When registering the ID code into a keyless control module, verify that other transmitters are not being operated in the vicinity.
- After ID code registering, remove the key from the steering lock and verify that all doors lock/unlock normally using the transmitter.
