[Full-Auto Air Conditioner]

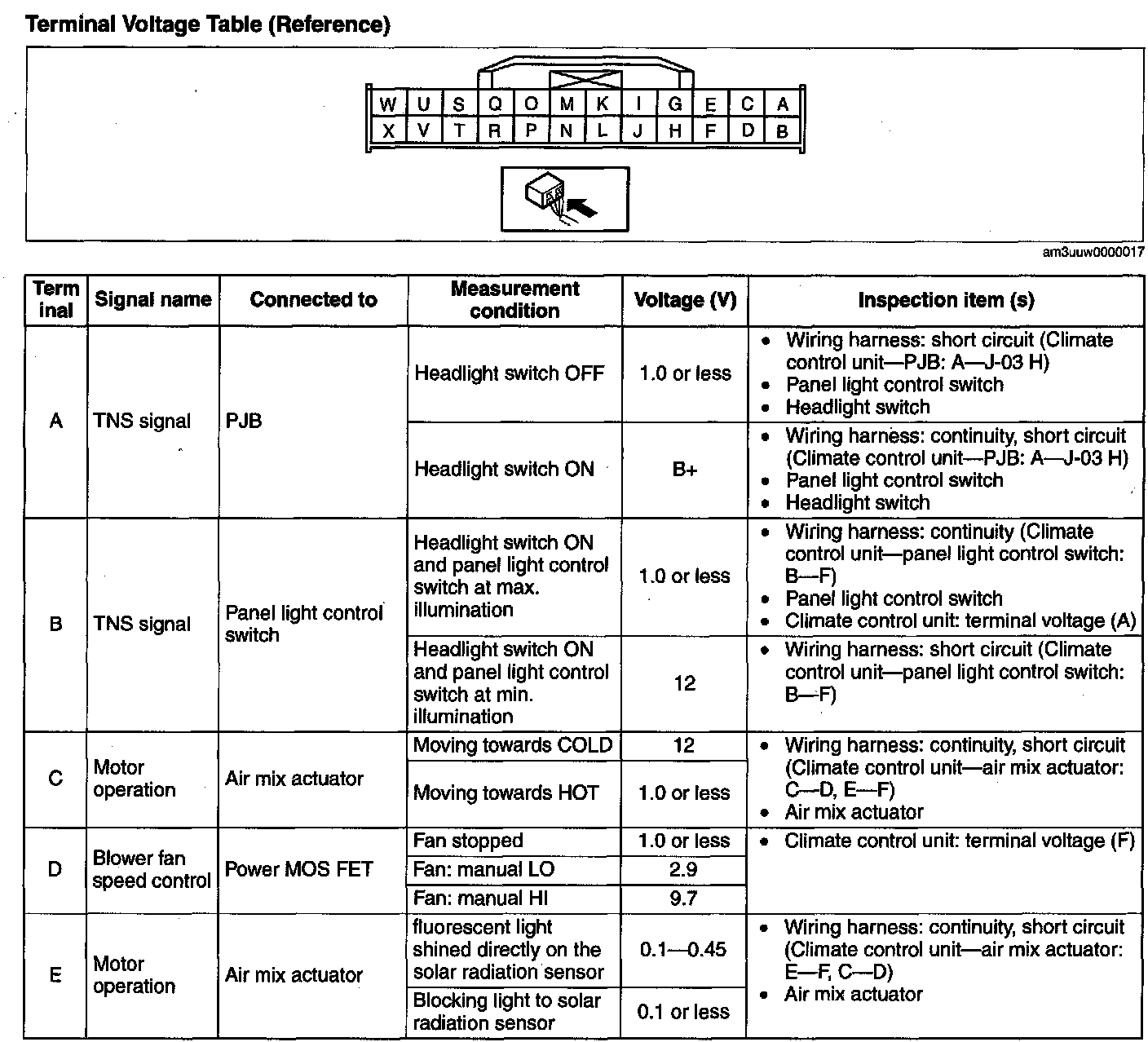

Terminal Voltage Table (Reference) (Part 1):

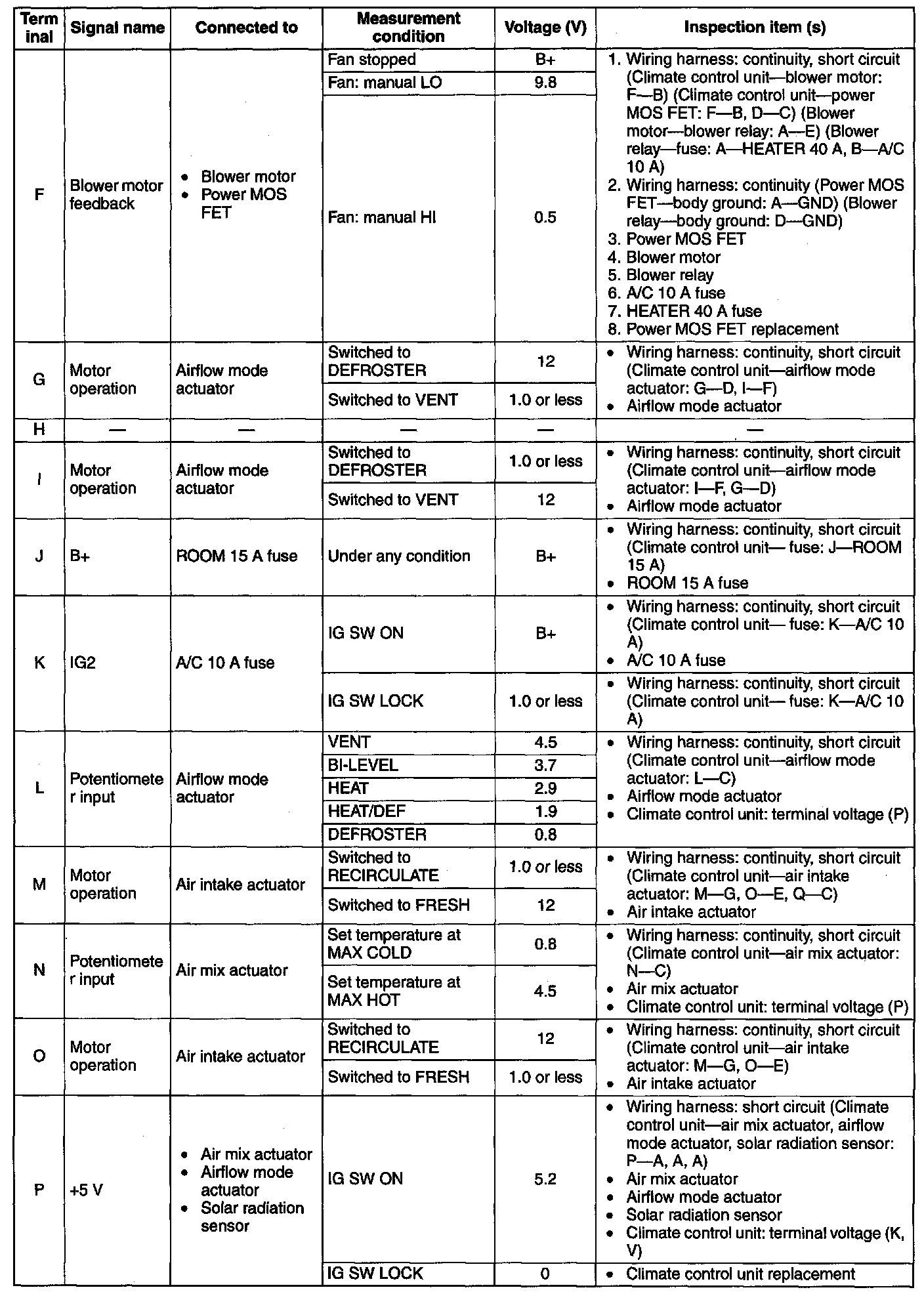

Terminal Voltage Table (Reference) (Part 2):

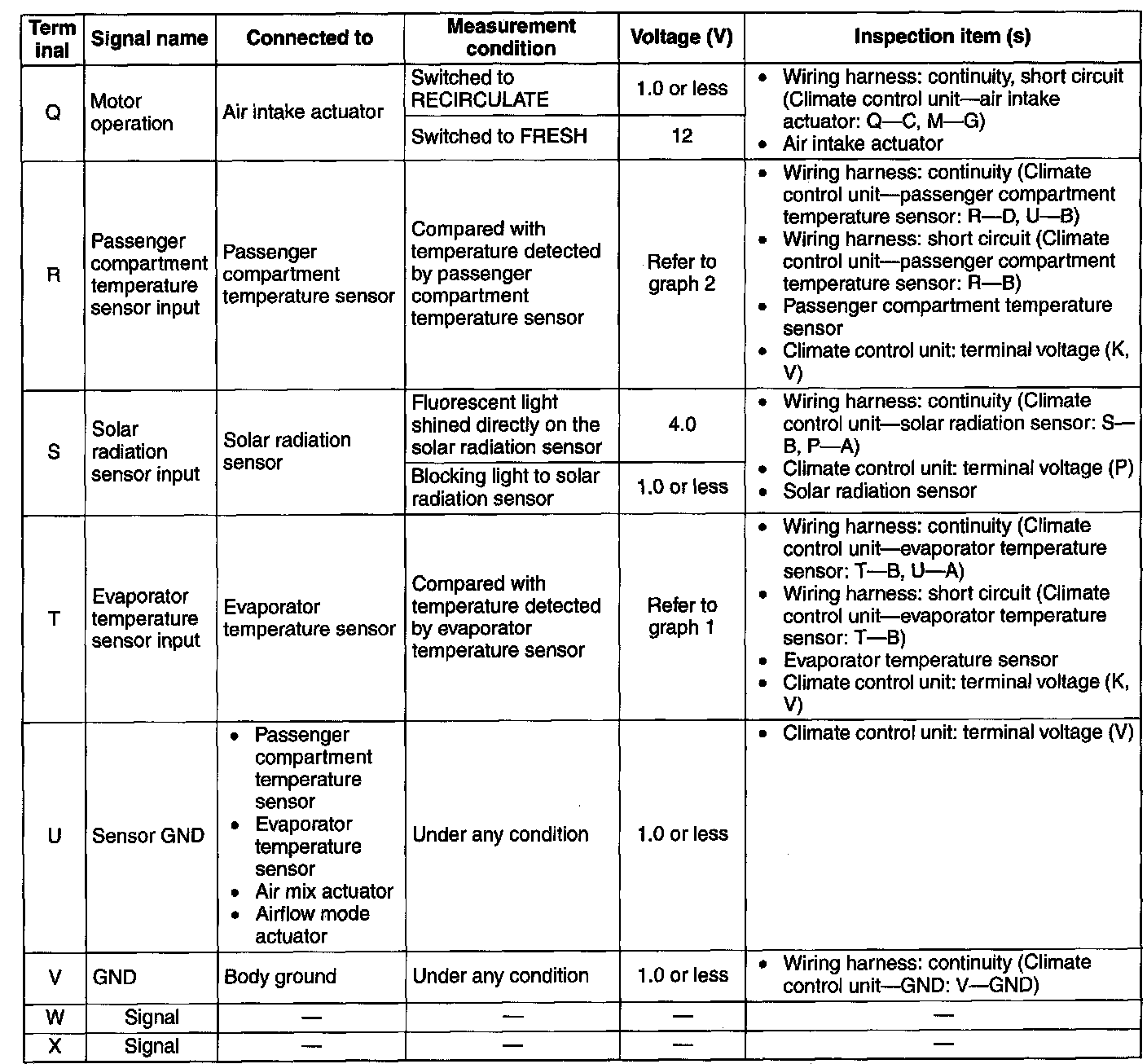

Terminal Voltage Table (Reference) (Part 3):

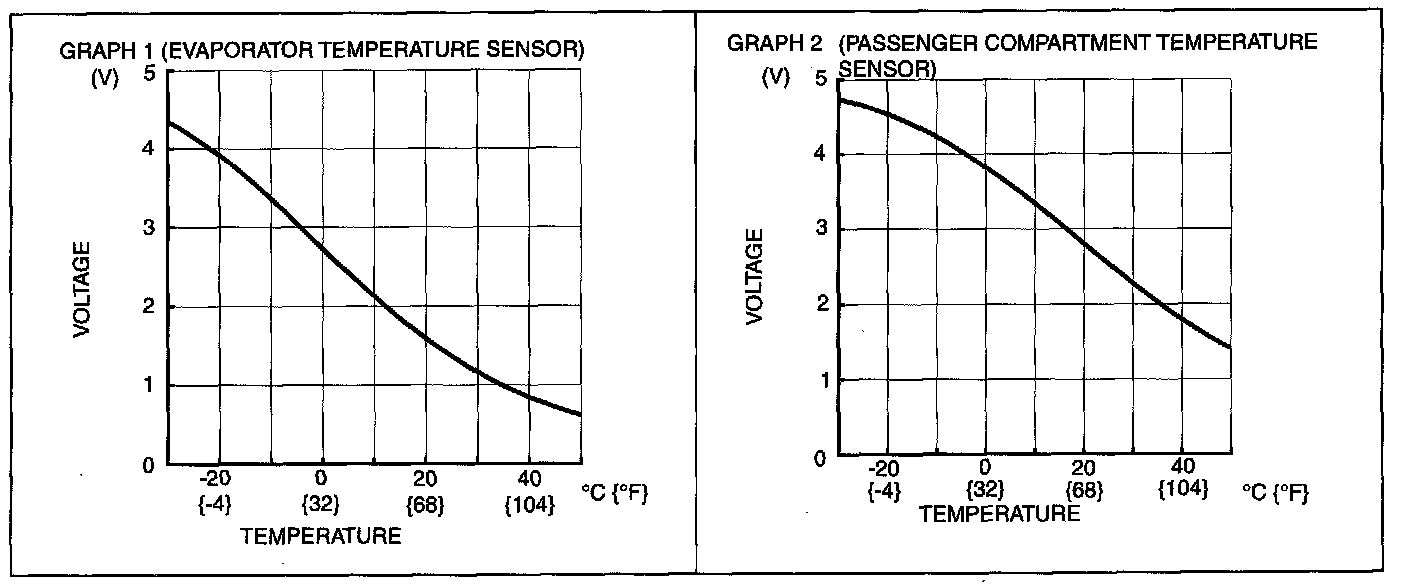

Terminal Voltage Table (Reference) (Part 4):
