Relay Box: Service and Repair

PASSENGER JUNCTION BOX (PJB) REMOVAL/INSTALLATION
1. When replacing the PJB, perform the following:
- PJB configuration

2. Disconnect the negative battery cable.

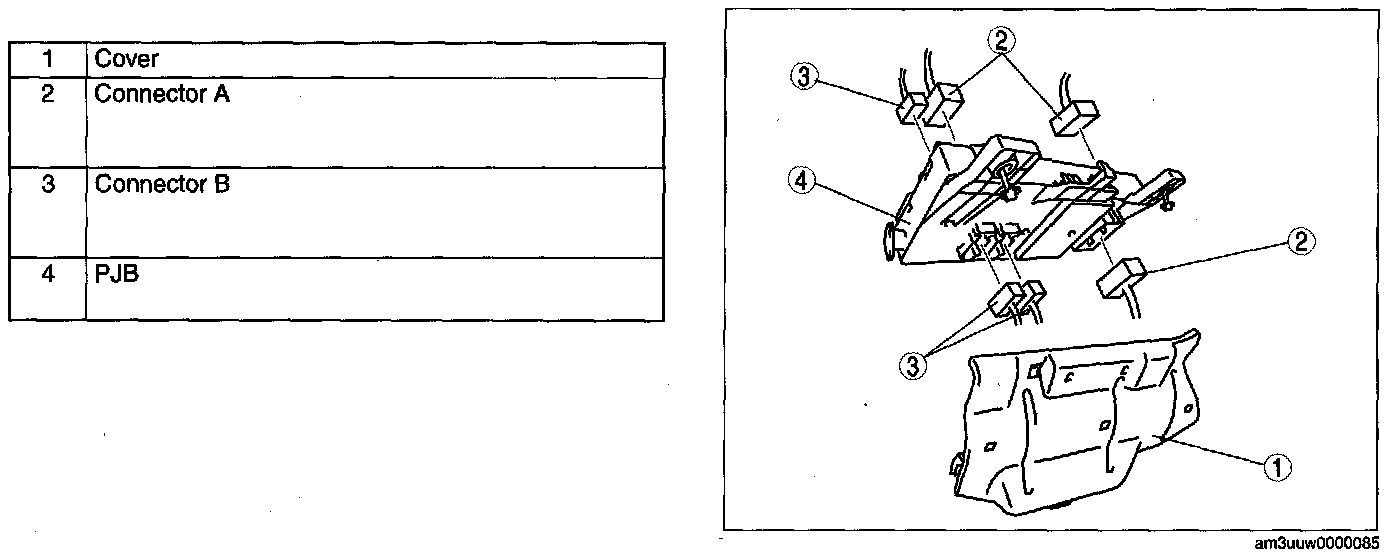

3. Remove in the order indicated in the table.






4. Install in the reverse order of removal.

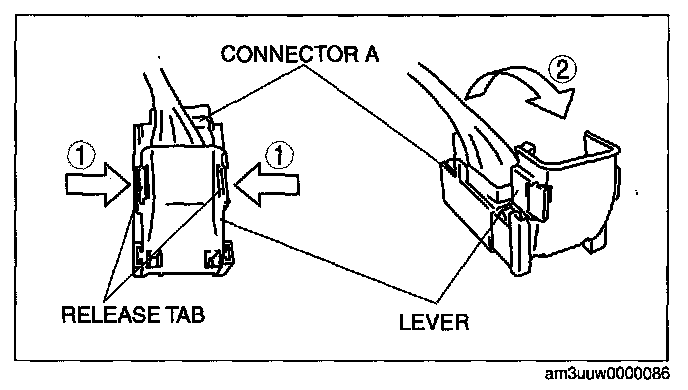

Connector A Removal Note




1. Push the release tab in the direction of the arrow.
2. Rotate the lever in the direction of the arrow and remove connector A.

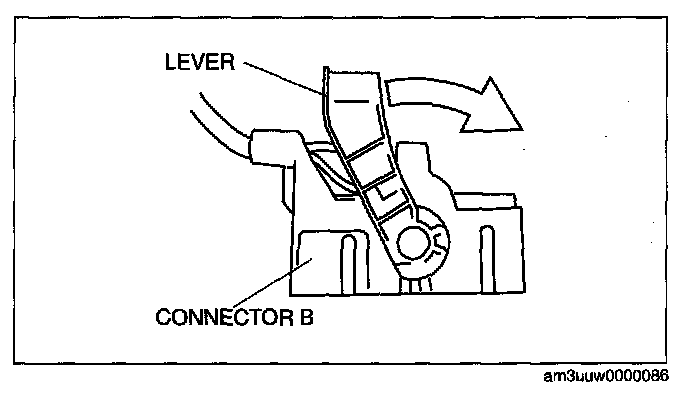

Connector B Removal Note




1. Rotate the lever in the direction of the arrow and remove connector B.

PJB Removal Note

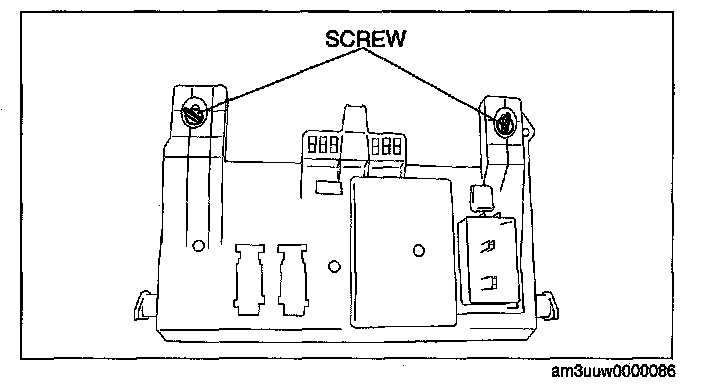

1. Turn the screws counterclockwise to remove the PJB.

NOTE: Screws cannot be removed from the PJB

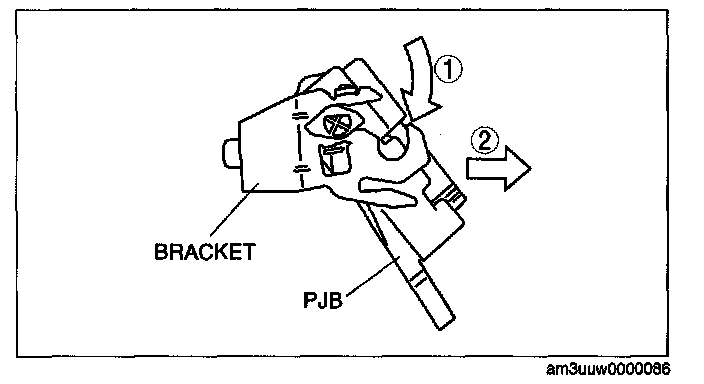

2. Remove the PJB as shown in the figure.

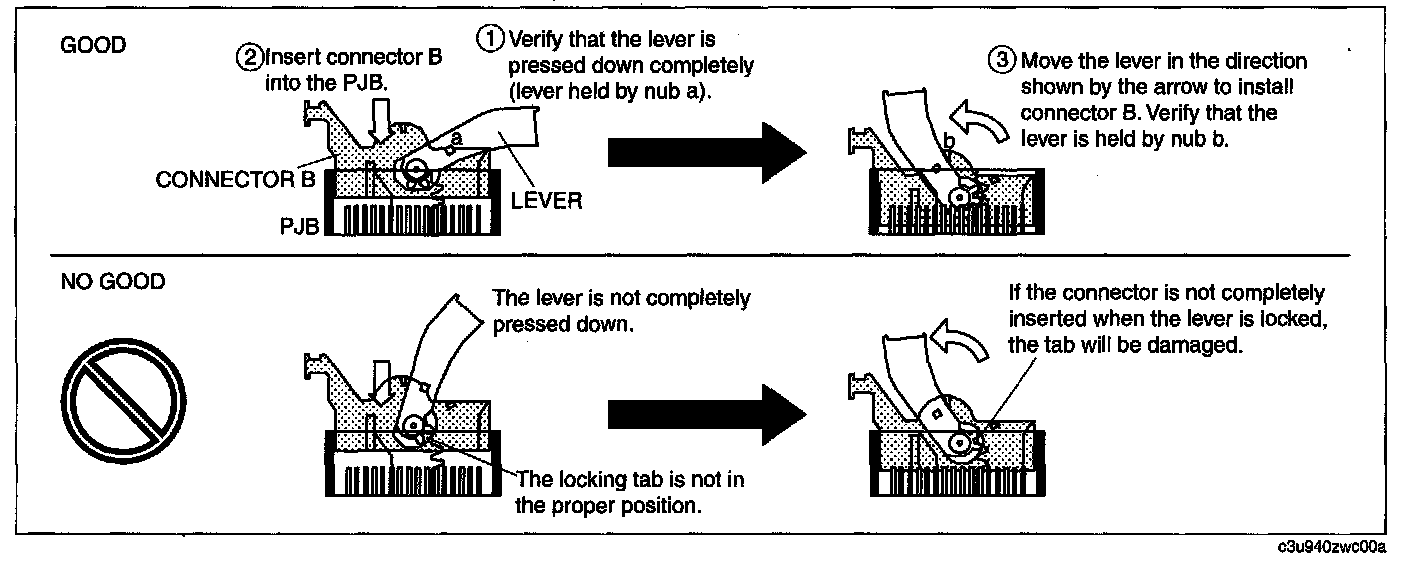

Connector B Installation Note
1. Install the connector B as shown in the figure.

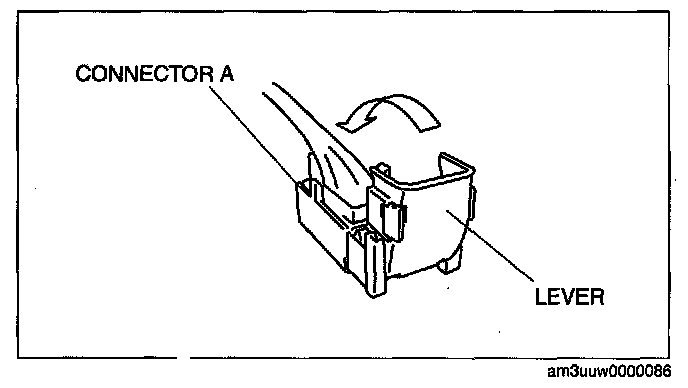

Connector A Installation Note




1. After connecting the connector, rotate the lever in the direction of the arrow to install connector A.
