Control System Device and Control Relationship Chart

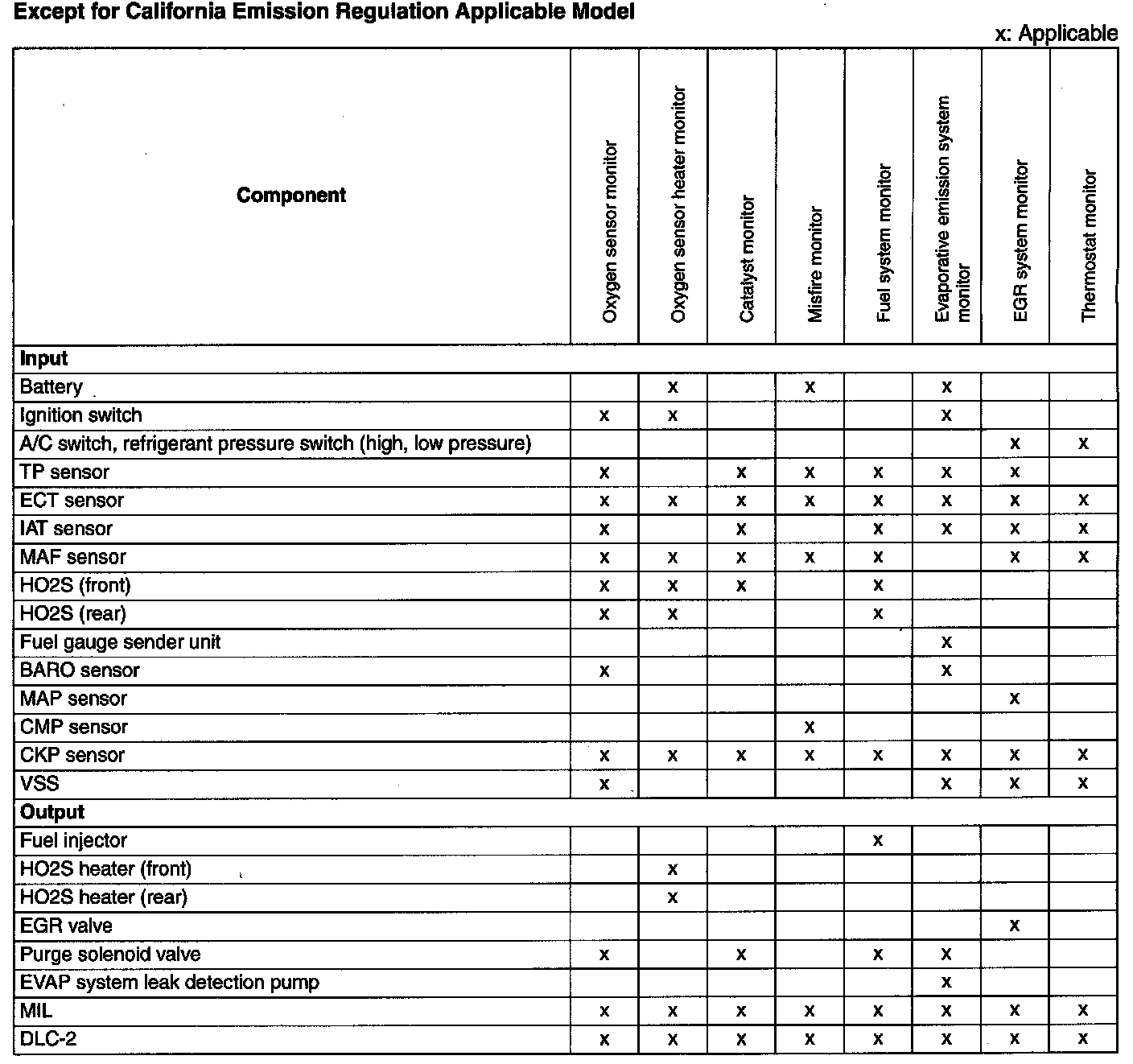

Monitoring System And Control System Device Relationship Chart(LF, L3) (Part 1):

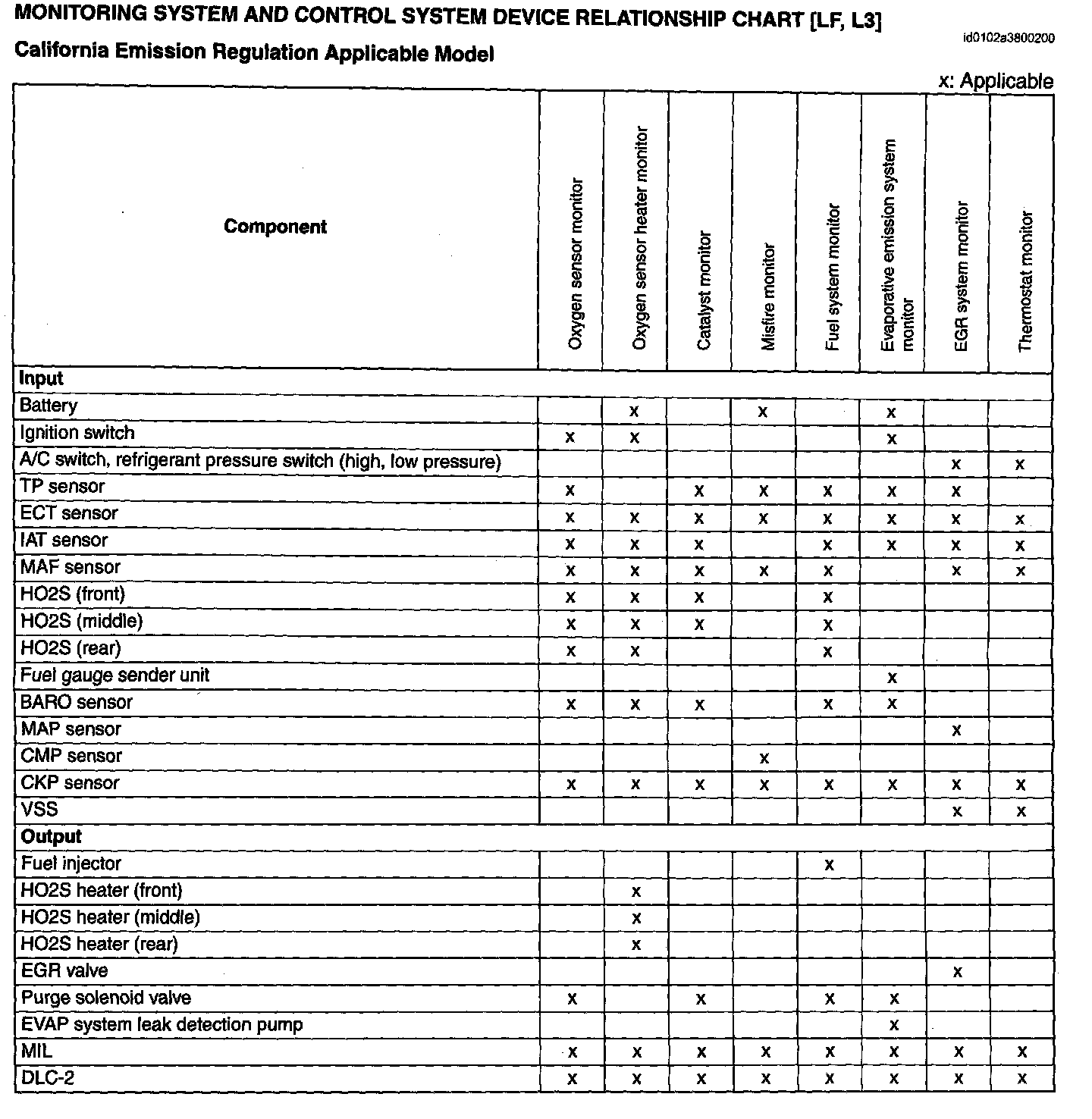

Monitoring System And Control System Device Relationship Chart(LF, L3) (Part 2):
