[FS5A-El] Automatic Transaxle/Transaxle

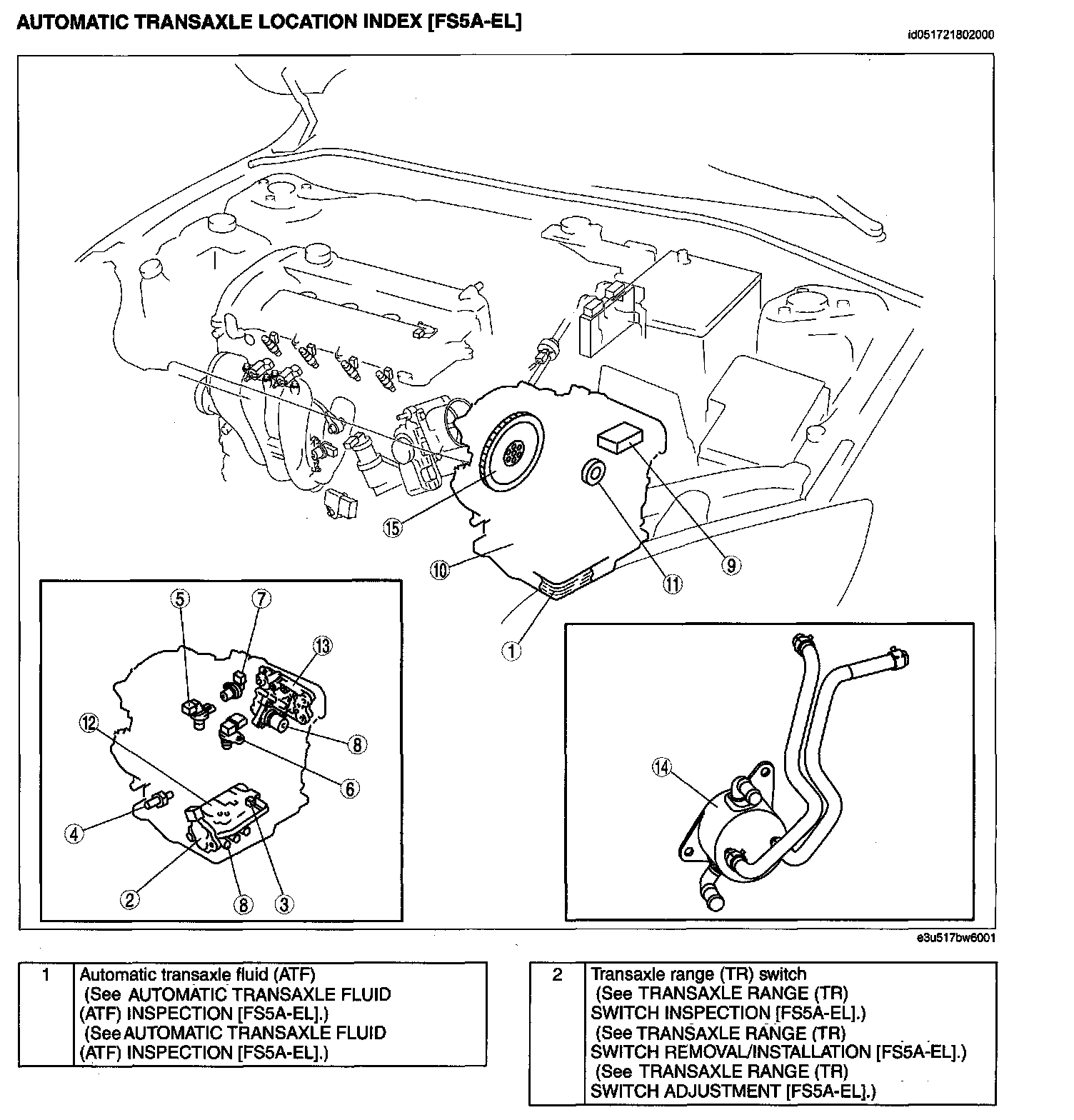

Automatic Transaxle Location Index [FS5A-EL]:



Automatic Transaxle Location Index [FS5A-EL] 3-15:
