Navigation Module: Service and Repair

CAR-NAVIGATION UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Side wall.
2. Front console.
3. Climate control unit.

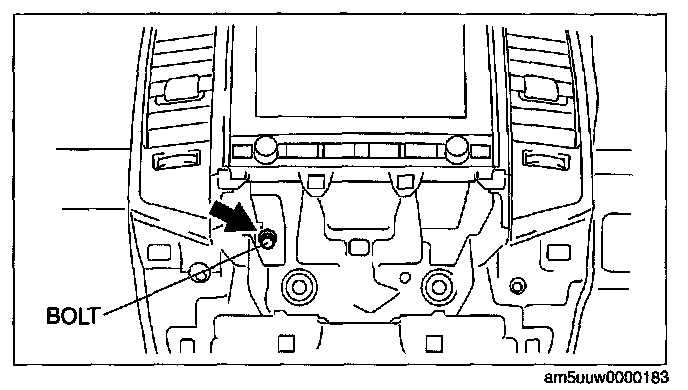

3. Remove the car-navigation unit installation bolt.

Tightening torque
8-10 N.m {80-110 kgf.cm, 70-95 in.lbf}

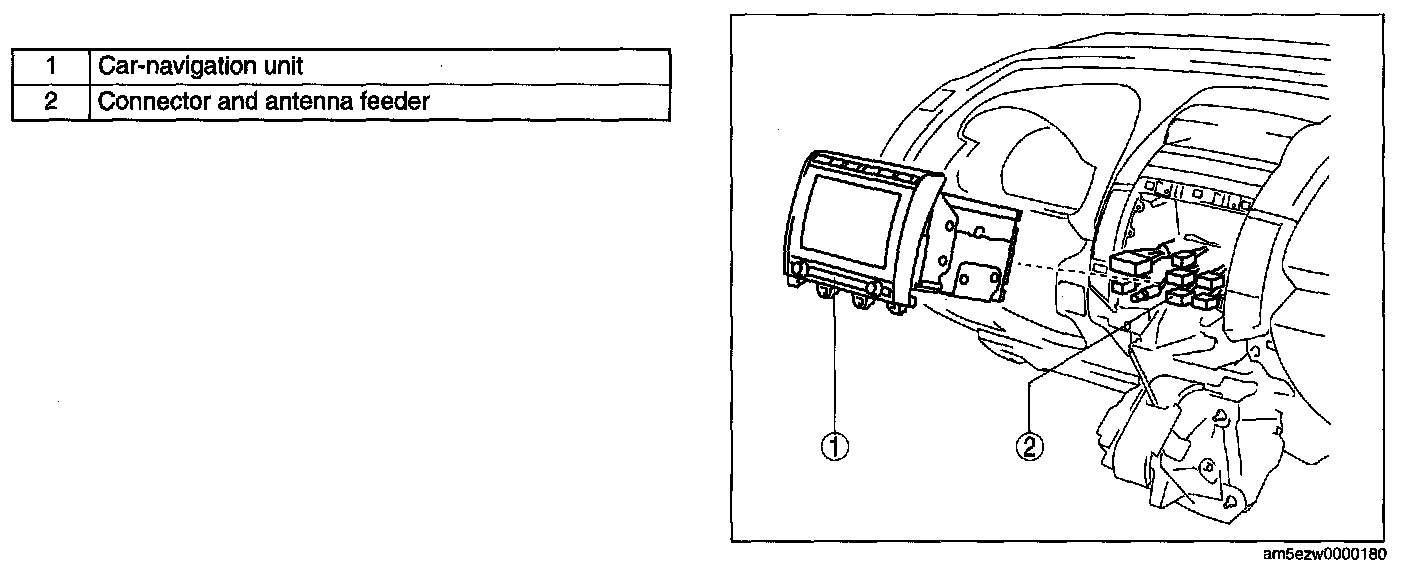

4. Remove in the order indicated in the table.






5. Install in the reverse order of removal.
