Diagram 0940-d

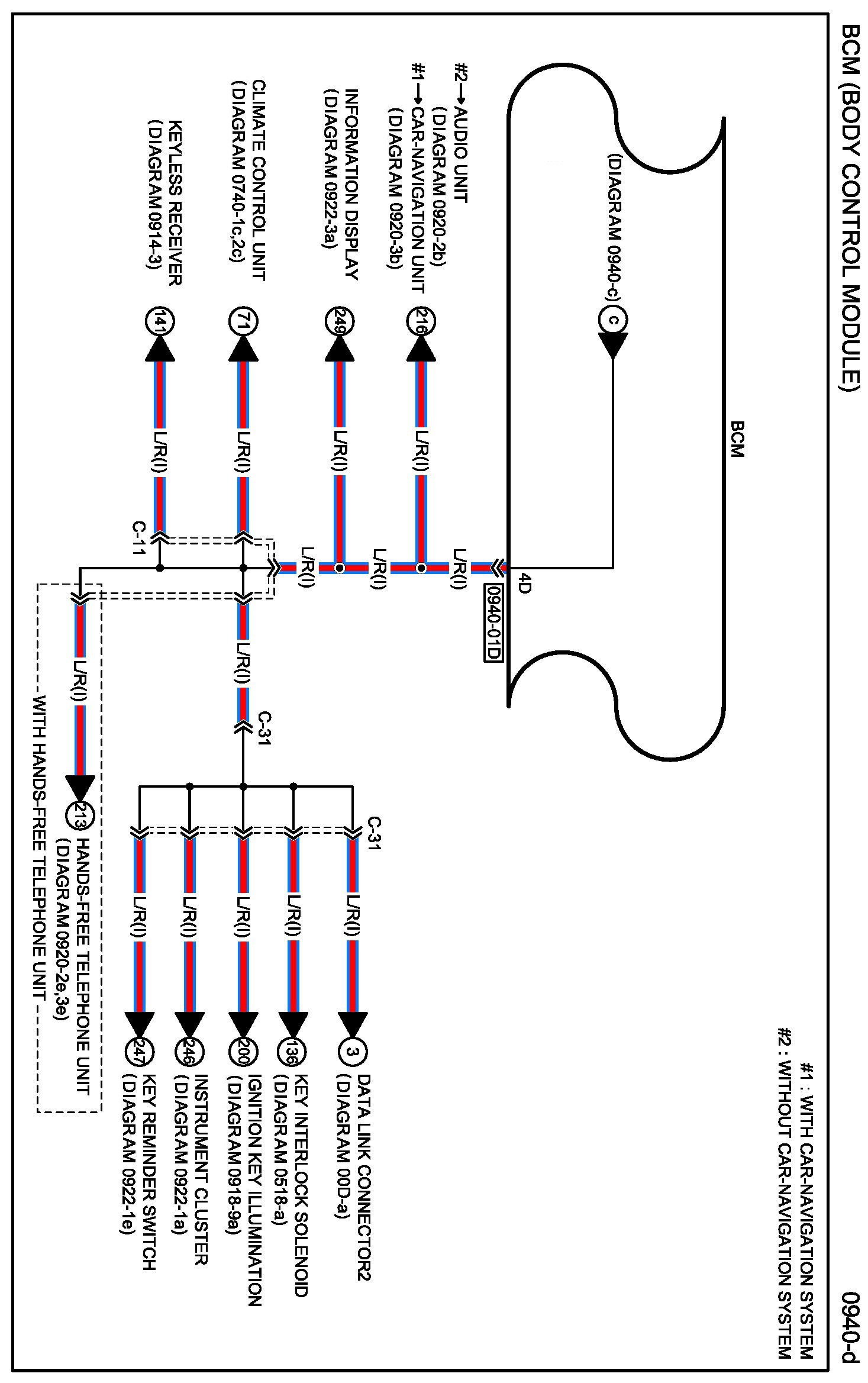

Diagram 0940-d:

Connectors 0940-d:

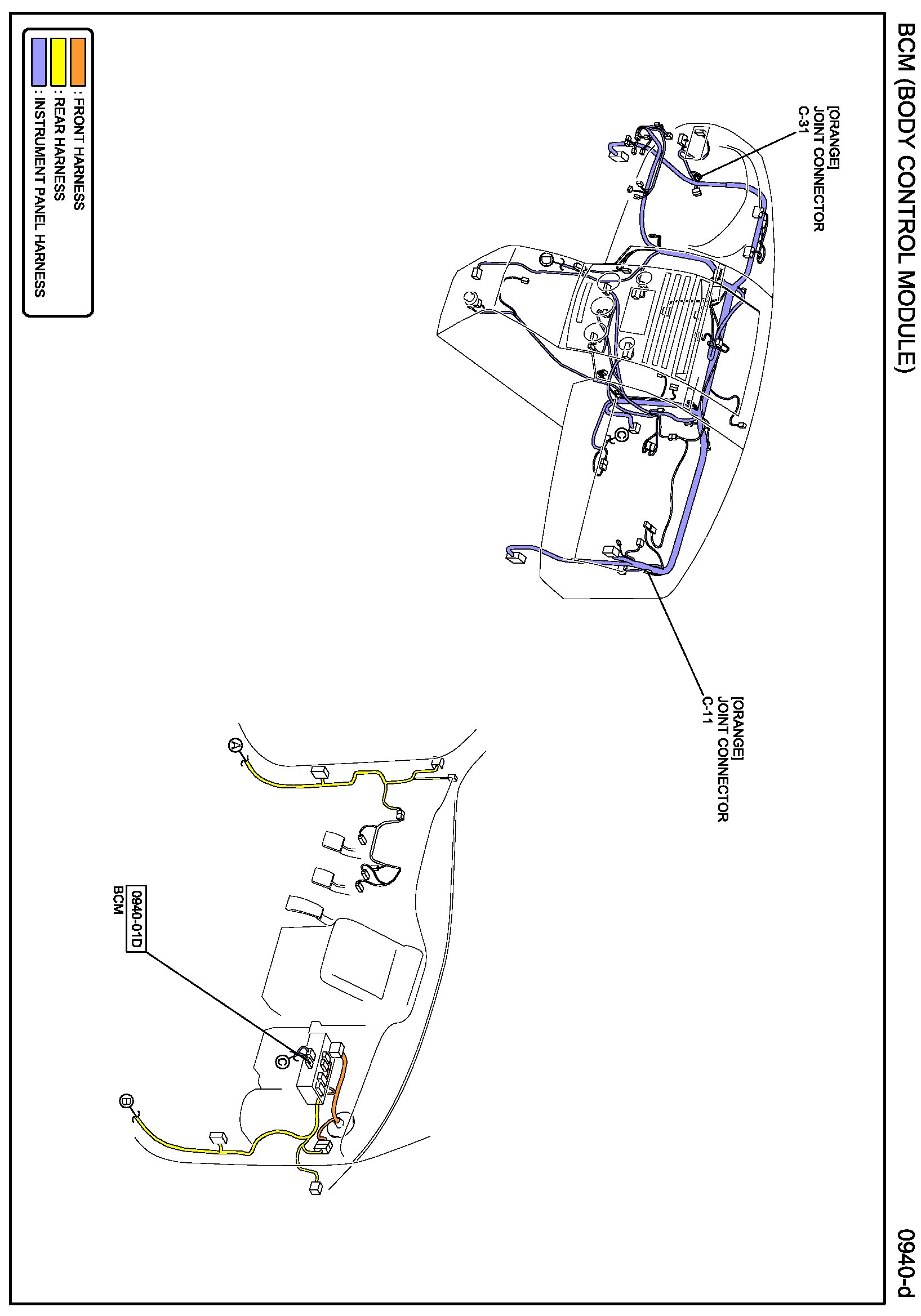

Routing View 0940-d:

Next Diagram Diagram 0940-e


Previous diagram Diagram 0940-c


Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
