Climate Control Unit Disassembly/Assembly [Full-Auto Air Conditioner]

CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY (FULL-AUTO AIR CONDITIONER]

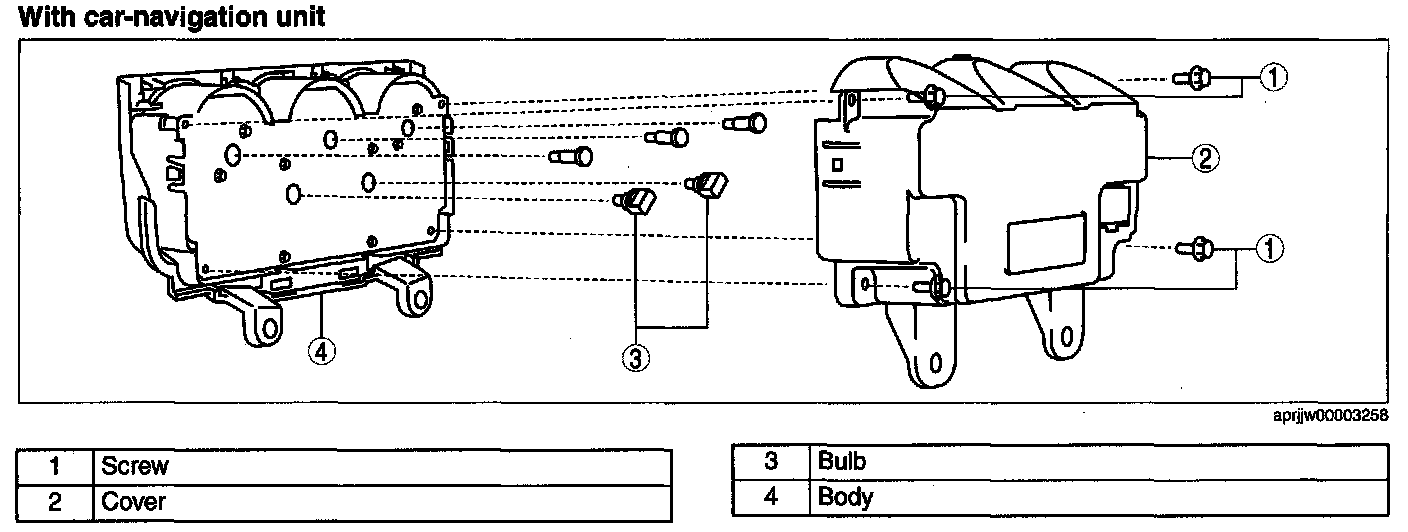

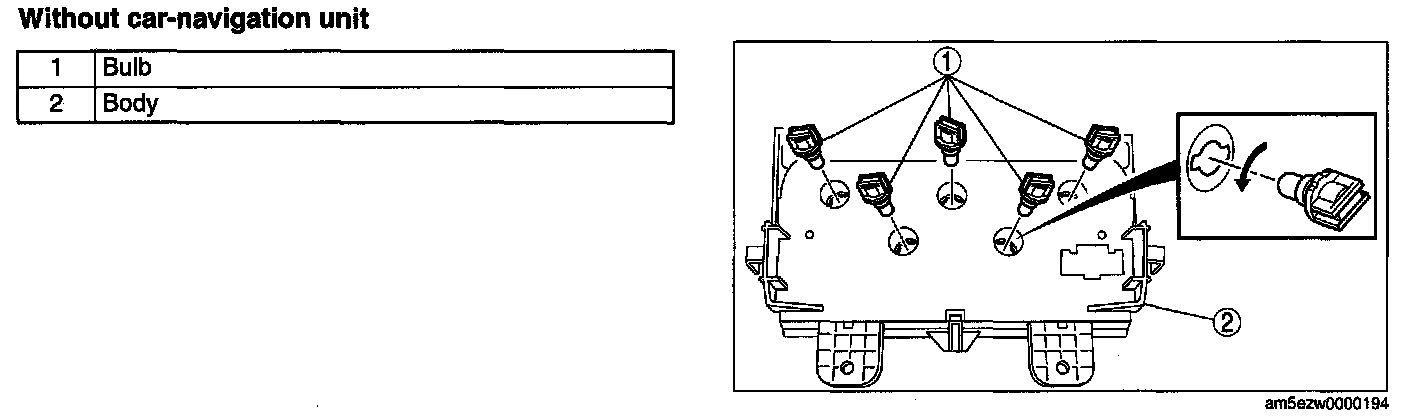

1. Disassemble in the order indicated in the table.









2. Assemble in the reverse order of disassembly.
