Total Toe-In Adjustment

Total Toe-in Adjustment

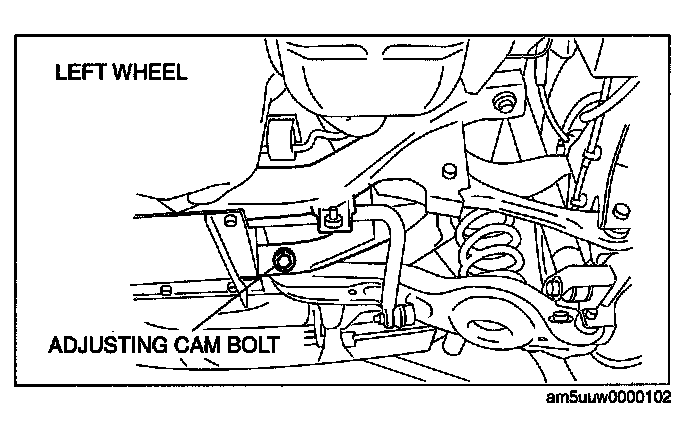

1. Loosen the securing nut of the adjusting cam bolt.

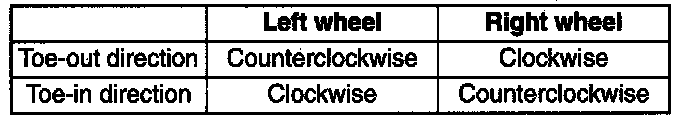

2. Rotate the adjusting cam bolt in either direction to adjust the toe-in.





3. Tighten the nut.
Tightening torque 80-105 N-m (8.2-10.7 kgf-m, 59.1-77.4 ft-lbf)
