LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Mazda
>>
2008
>>
5 L4-2.3L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Diagrams
>>
00F-3
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
00F-3

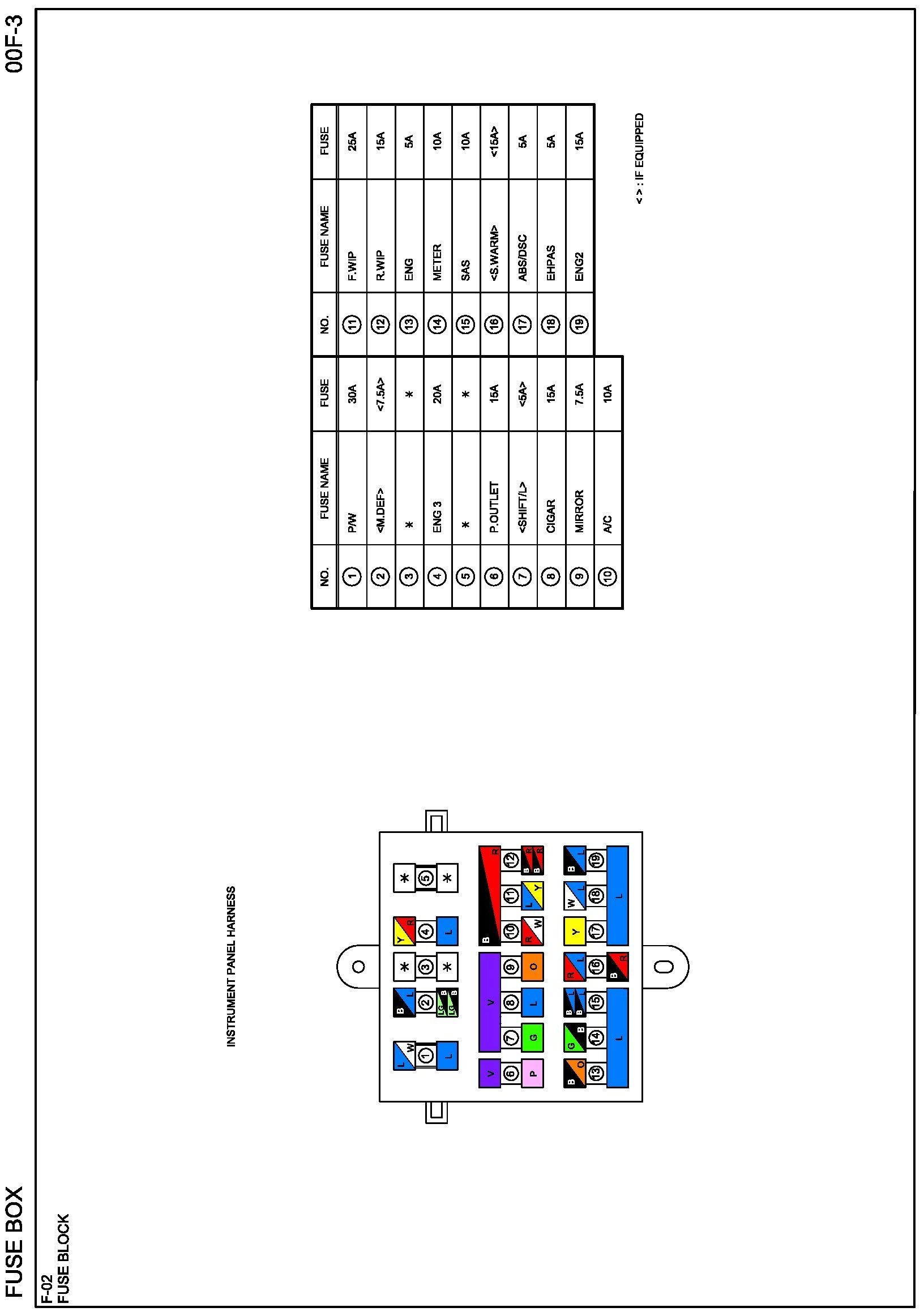

Diagram 00F-3:
