Power and Ground Distribution: Testing and Inspection

RELAY INSPECTION

Relay Inspection:

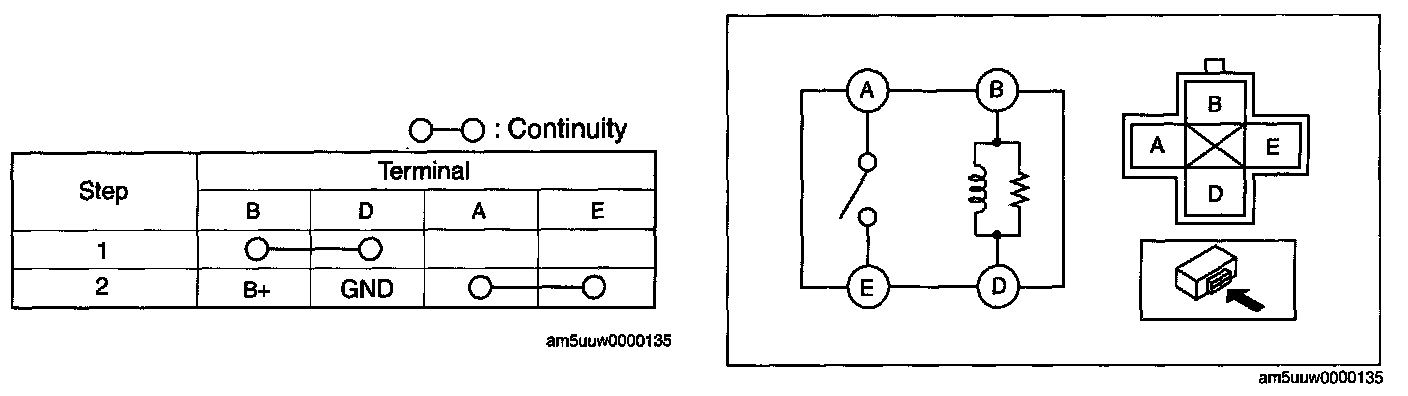

Type A
1. Verify the continuity between the relay terminals.
- If not as indicated in the table, replace the relay.

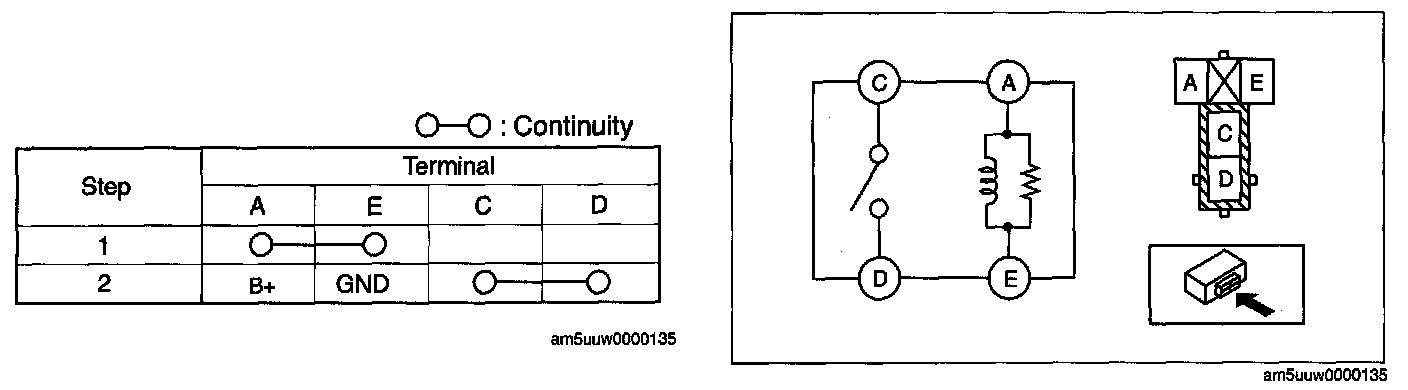

Type B
1. Verify the continuity between the relay terminals.
- If not as indicated in the table, replace the relay.
