Accelerator Pedal Position Sensor: Testing and Inspection

ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [L3]

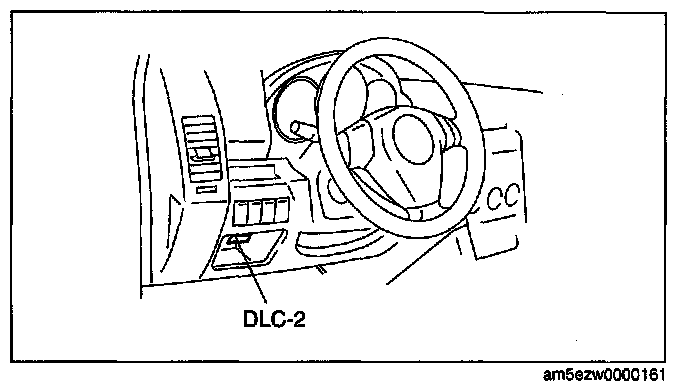

1. Connect the M-MDS to the DLC-2.




2. Turn the ignition switch to ON position.
3. Select APP1 and APP2 PID on the M-MDS.
4. Verify that the APP1 and APP2 PID is within the specification when the accelerator pedal not depressed. (See PCM INSPECTION [L3].) PCM Inspection

Circuit Open/Short Inspection
1. Disconnect the PCM connectors.
2. Disconnect the APP sensor connector.

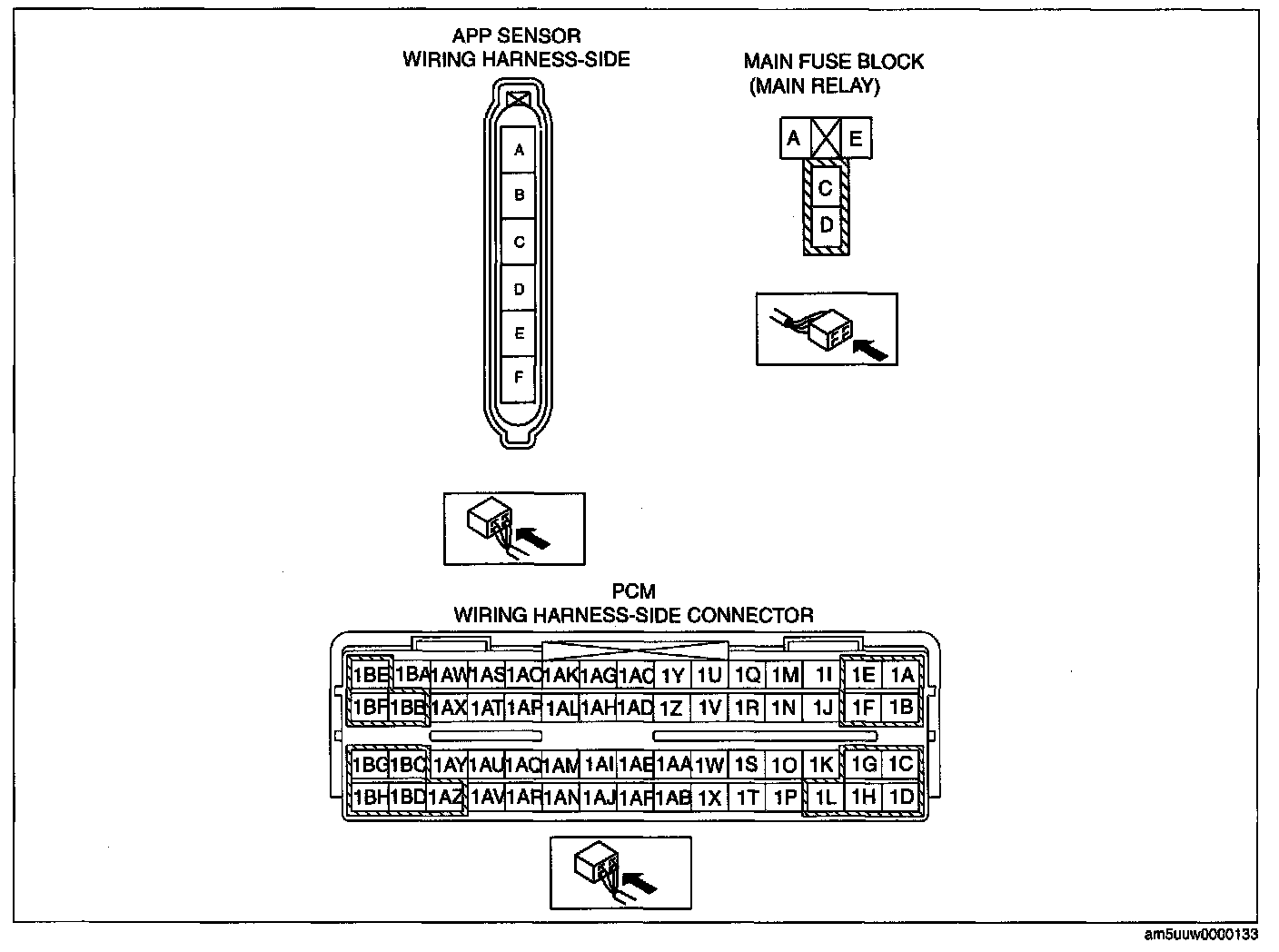

3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)






Open Circuit
- If there is no continuity in the following wiring harnesses, there is an open circuit. Repair or replace the wiring harness.
- APP sensor terminal A and PCM terminal 1AL
- APP sensor terminal B and PCM terminal 1AP
- APP sensor terminal C and PCM terminal 1AV
- APP sensor terminal D and PCM terminal body ground
- APP sensor terminal E and PCM terminal 1AO
- APP sensor terminal F and main relay terminal C

Short circuit
- If there is continuity in the following wiring harnesses, there is a short circuit. Repair or replace the wiring harness.
- APP sensor terminal A and body ground
- APP sensor terminal B and body ground
- APP sensor terminal B and power supply
- APP sensor terminal C and power supply
- APP sensor terminal D and power supply
- APP sensor terminal E and body ground
- APP sensor terminal E and power supply
- APP sensor terminal F and body ground
