Coolant Temperature Sensor/Switch (For Computer): Service and Repair

ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [L3]

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the plug hole cover.
4. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [L3].)
5. Disconnect the ECT sensor connector.

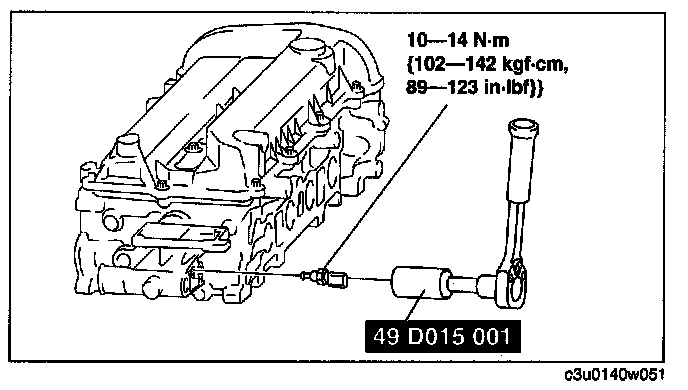

6. Remove the ECT sensor using the SST.
7. Install in the reverse order of removal.

Tightening torque
10-14 N.m {102-142 kgf.cm, 89-123 in.lbf}
