Quick Diagnostic Chart

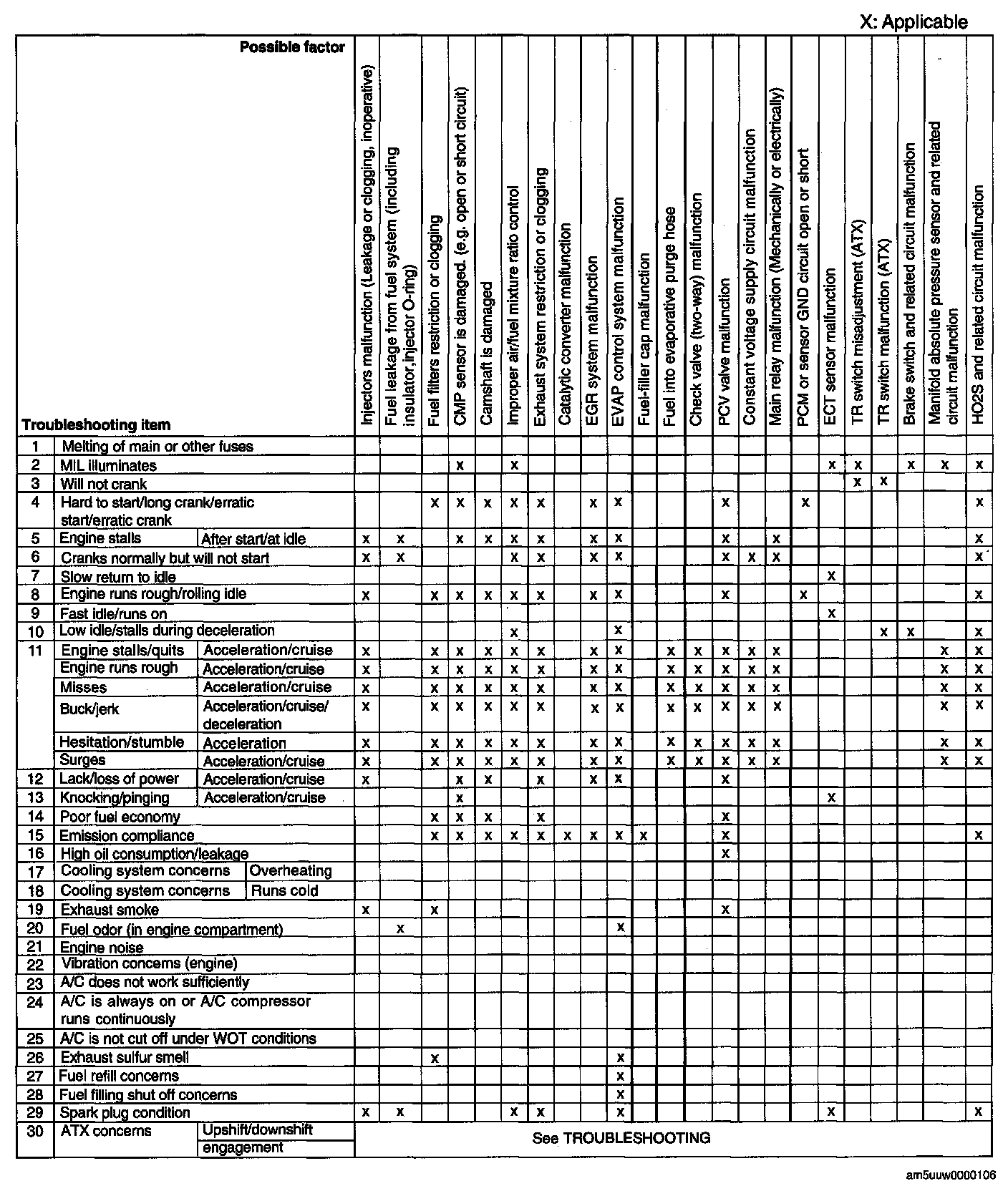

Quick Diagnostic Chart (Part 1):

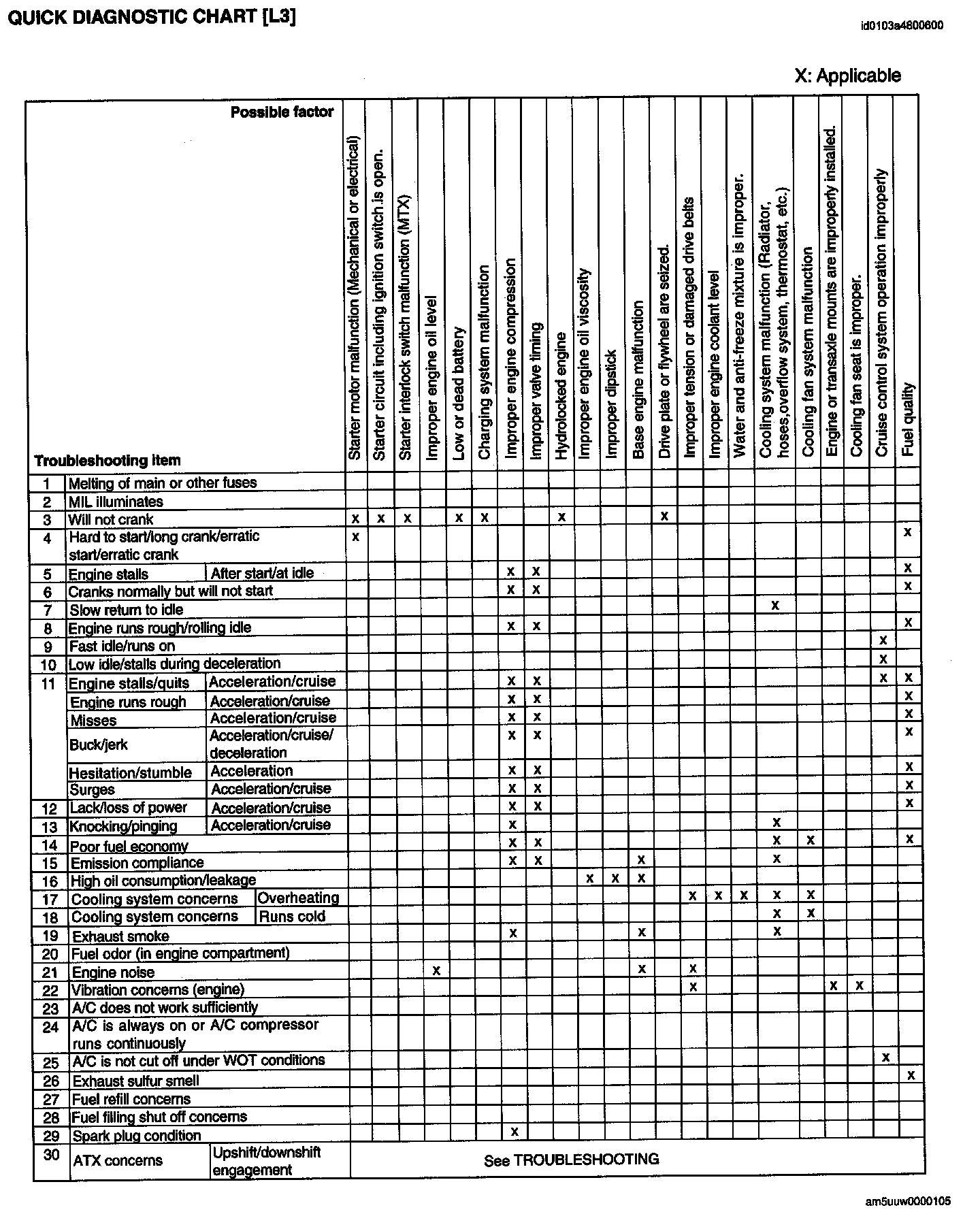

Quick Diagnostic Chart (Part 2):

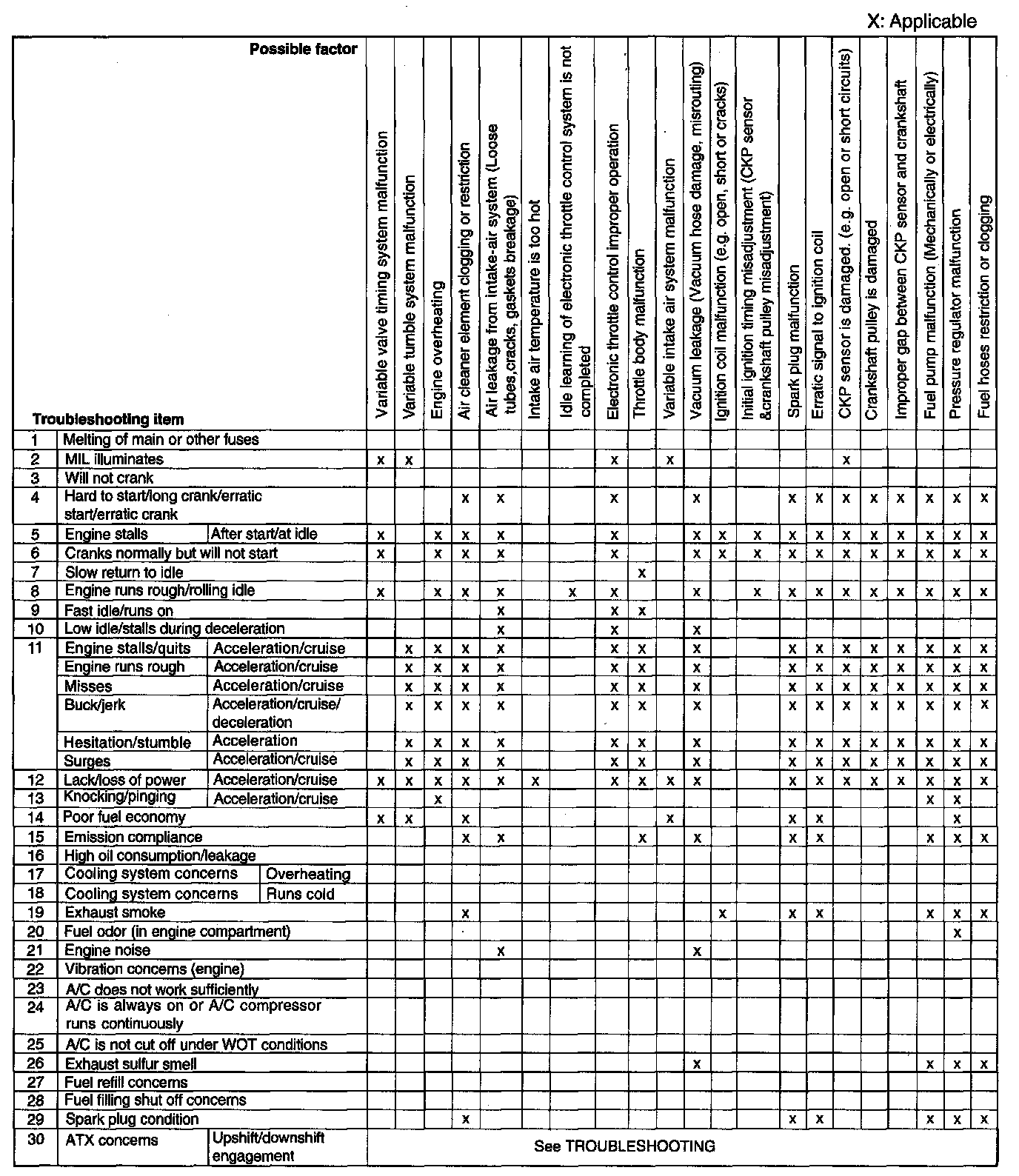

Quick Diagnostic Chart (Part 3):
