Symptom Troubleshooting Chart - Engine Driveability

SYMPTOM DIAGNOSTIC INDEX [L3]

- Confirm trouble symptom using the following diagnostic index, then go to appropriate troubleshooting chart.

Diagnostic Index

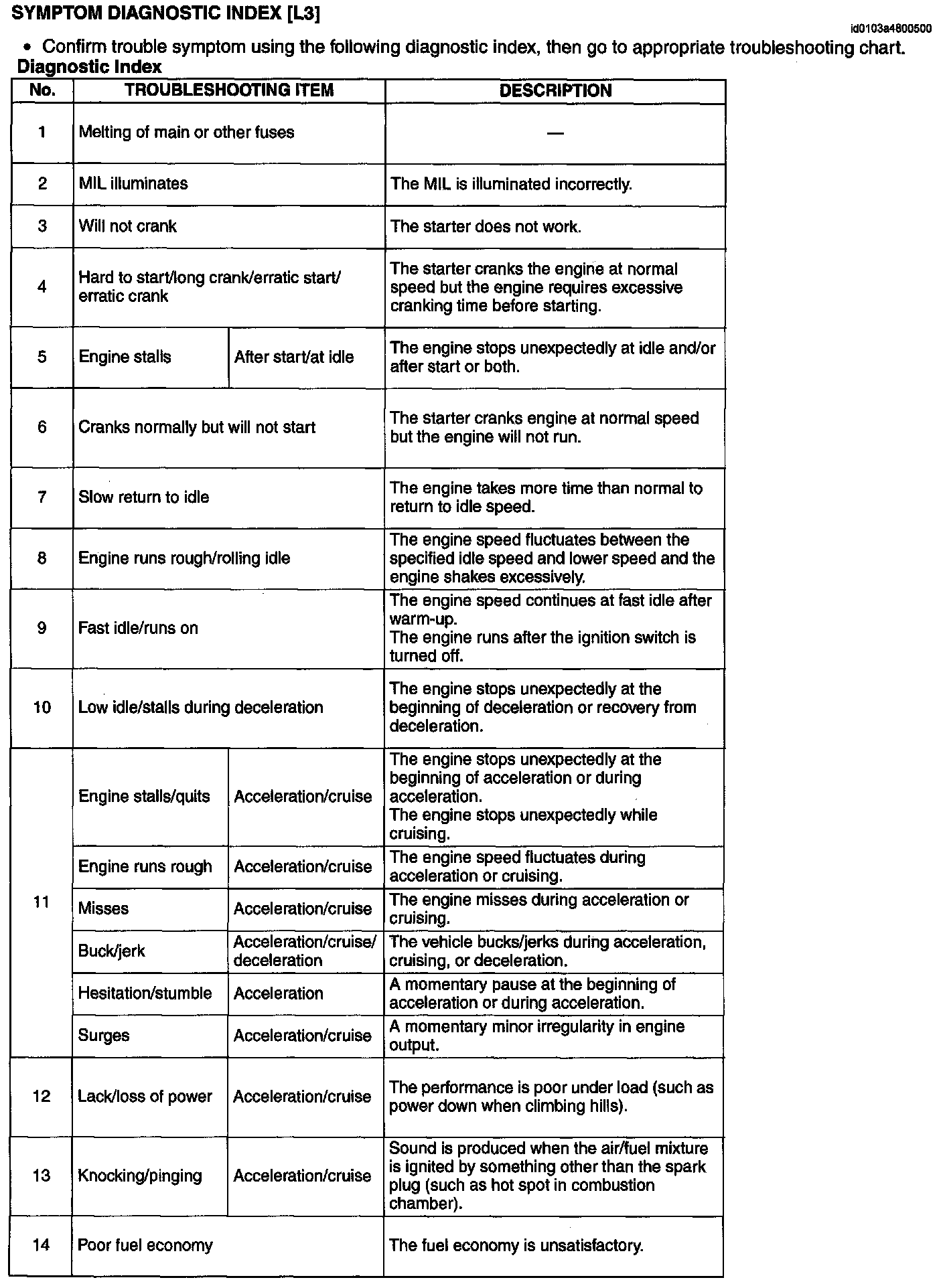

Symptom Diagnostic Index (Part 1):

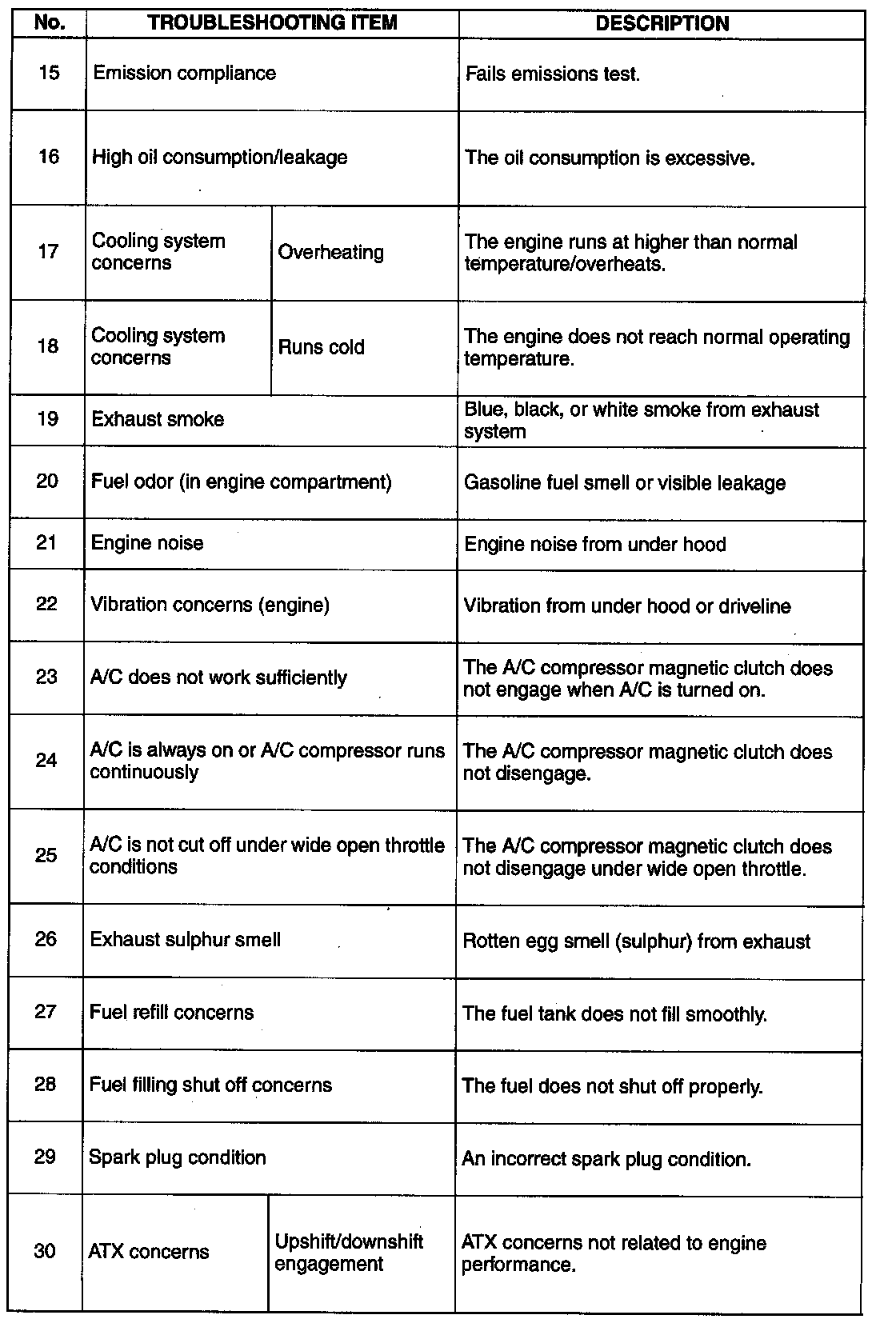

Symptom Diagnostic Index (Part 2):
