Flywheel

Drive Plate (ATX), Flywheel (MTX) Assembly

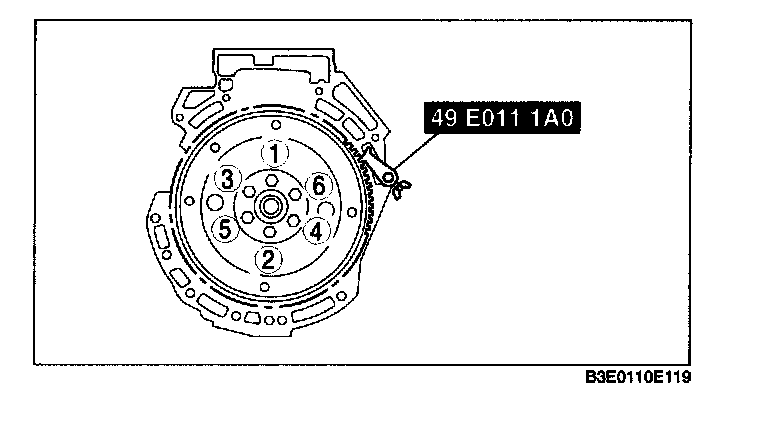

Tighten the bolts in the 3 steps in the figure.
Tightening torque
(1) 46-54 N-m (4.70-5.50 kgf-m, 34.0-39.8 ft-lbf)
(2) 76-84 N-m (7.75-8.56 kgf-m, 56.1-61.9 ft-lbf)
(3) 108-116 N-m (11.1 -11.8 kgf-m, 79.7-85.5 ft-lbf)
