Body Control Module: Locations

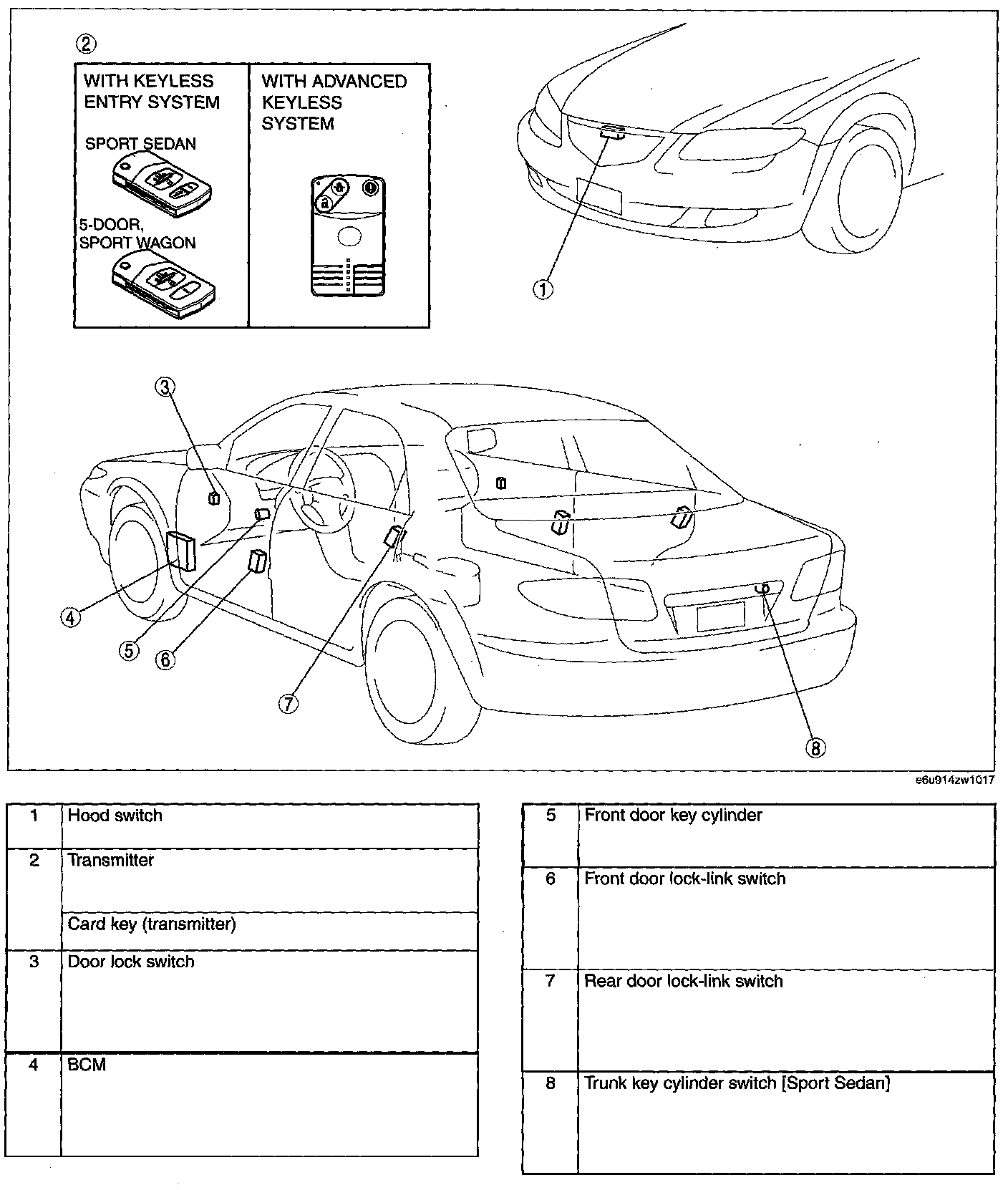

Theft Deterrent System Location Index:

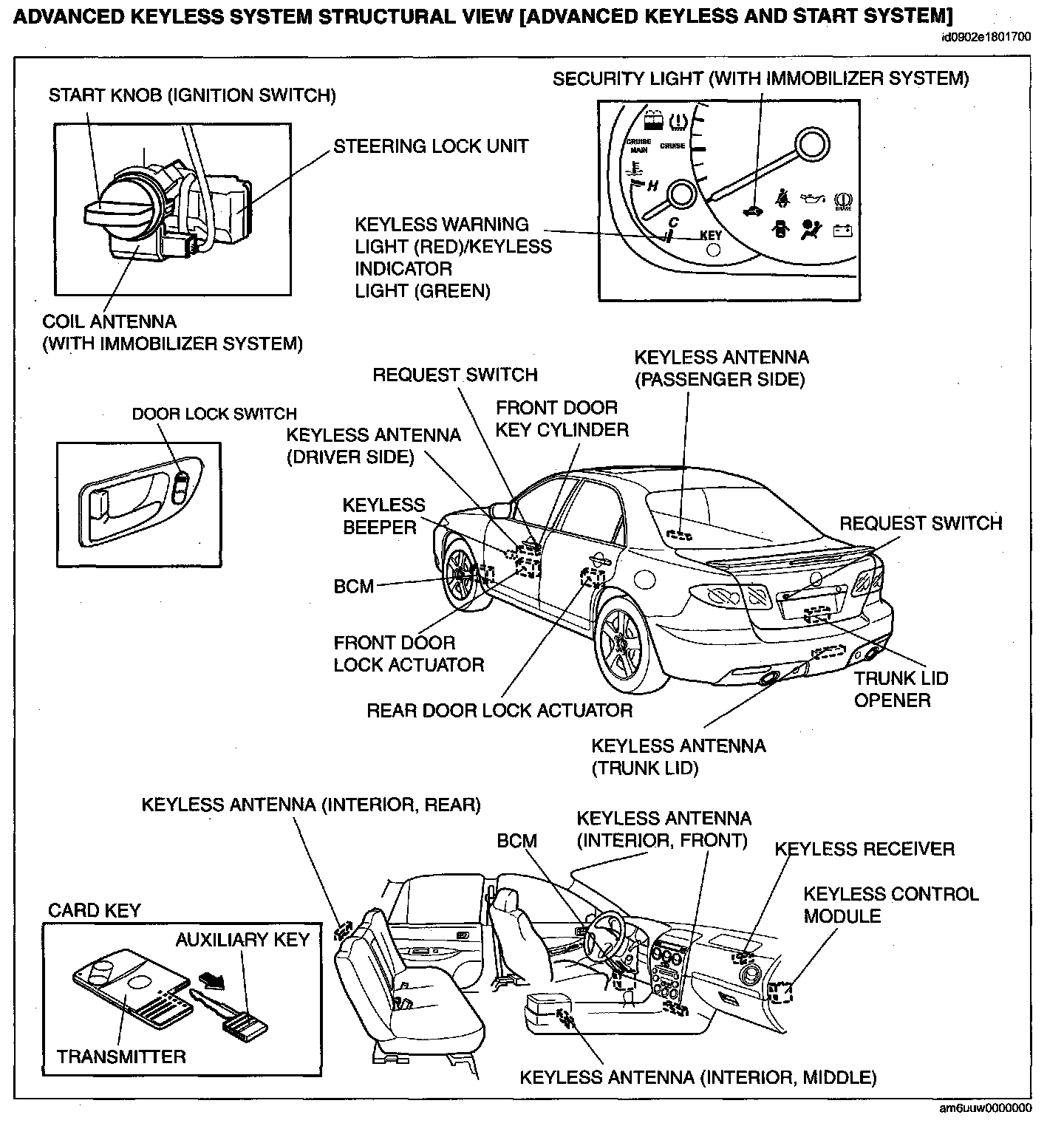

Advanced Keyless System Structural View [Advanced Keyless And Start System]:

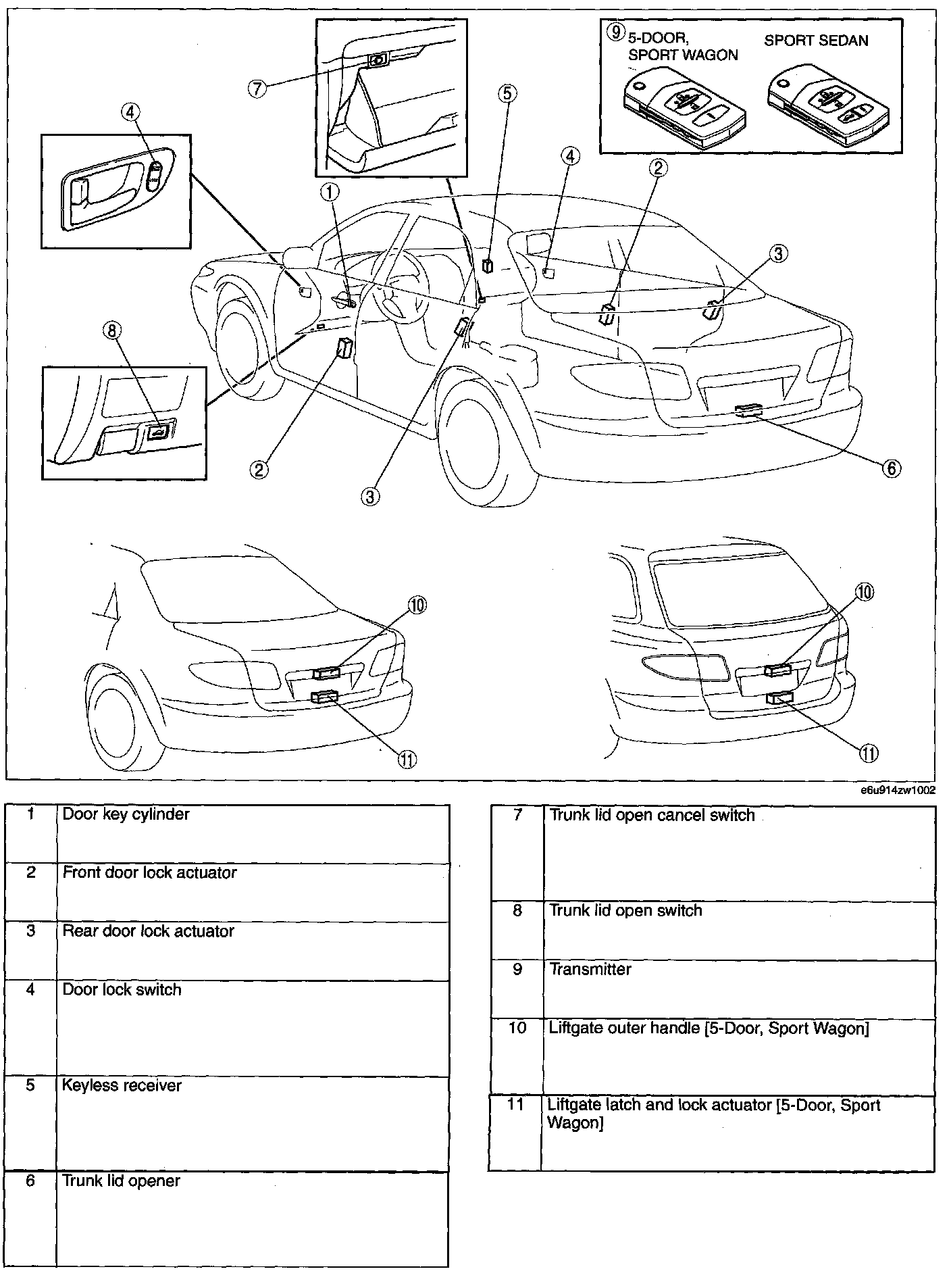

Power Door Lock System And Keyless Entry System Location Index [Advanced Keyless System]:



Power Door Lock System And Keyless Entry System Location Index [advanced Keyless System]:
