System Schematic

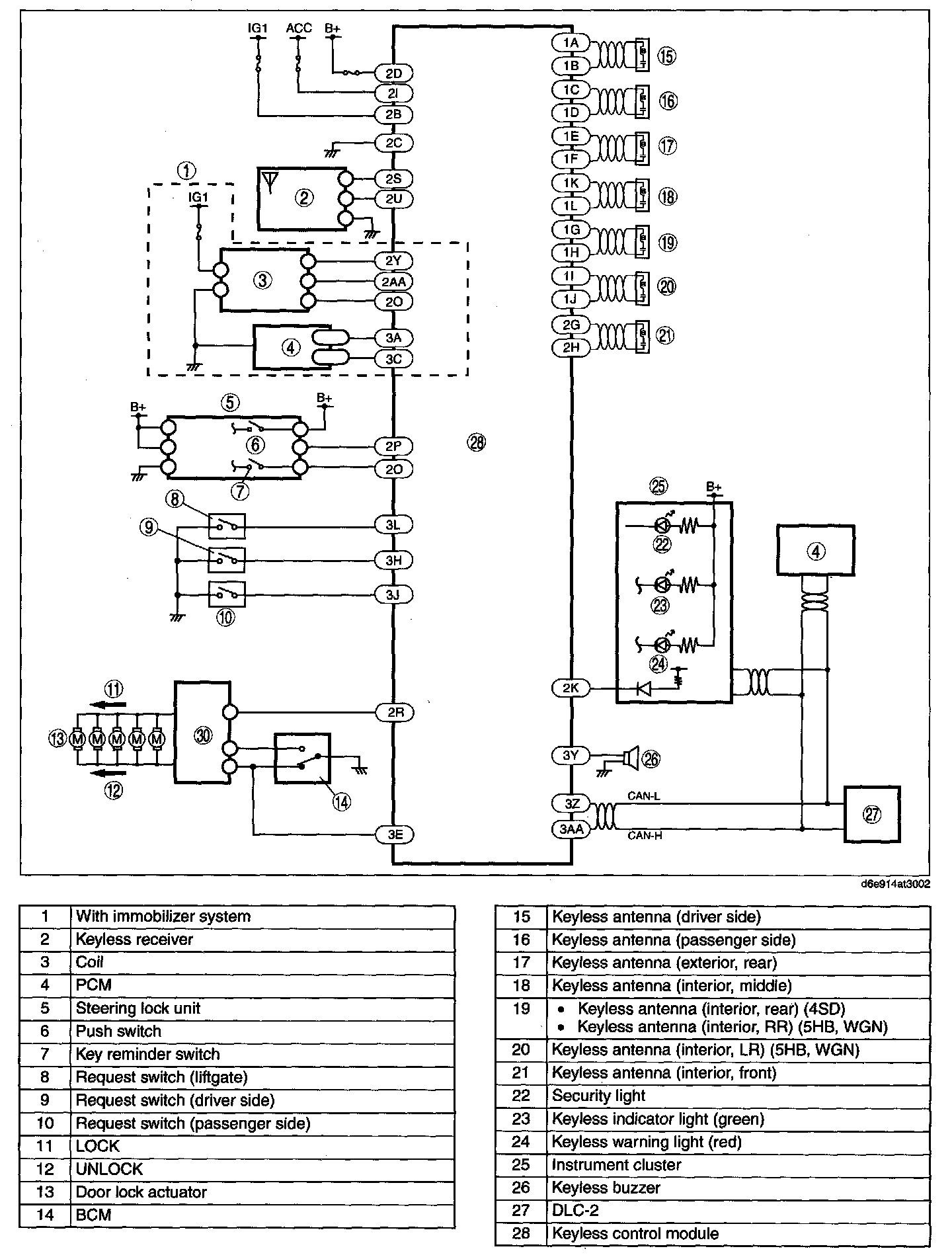

Keyless Entry System Wiring Diagram [Advanced Keyless And Start System]:

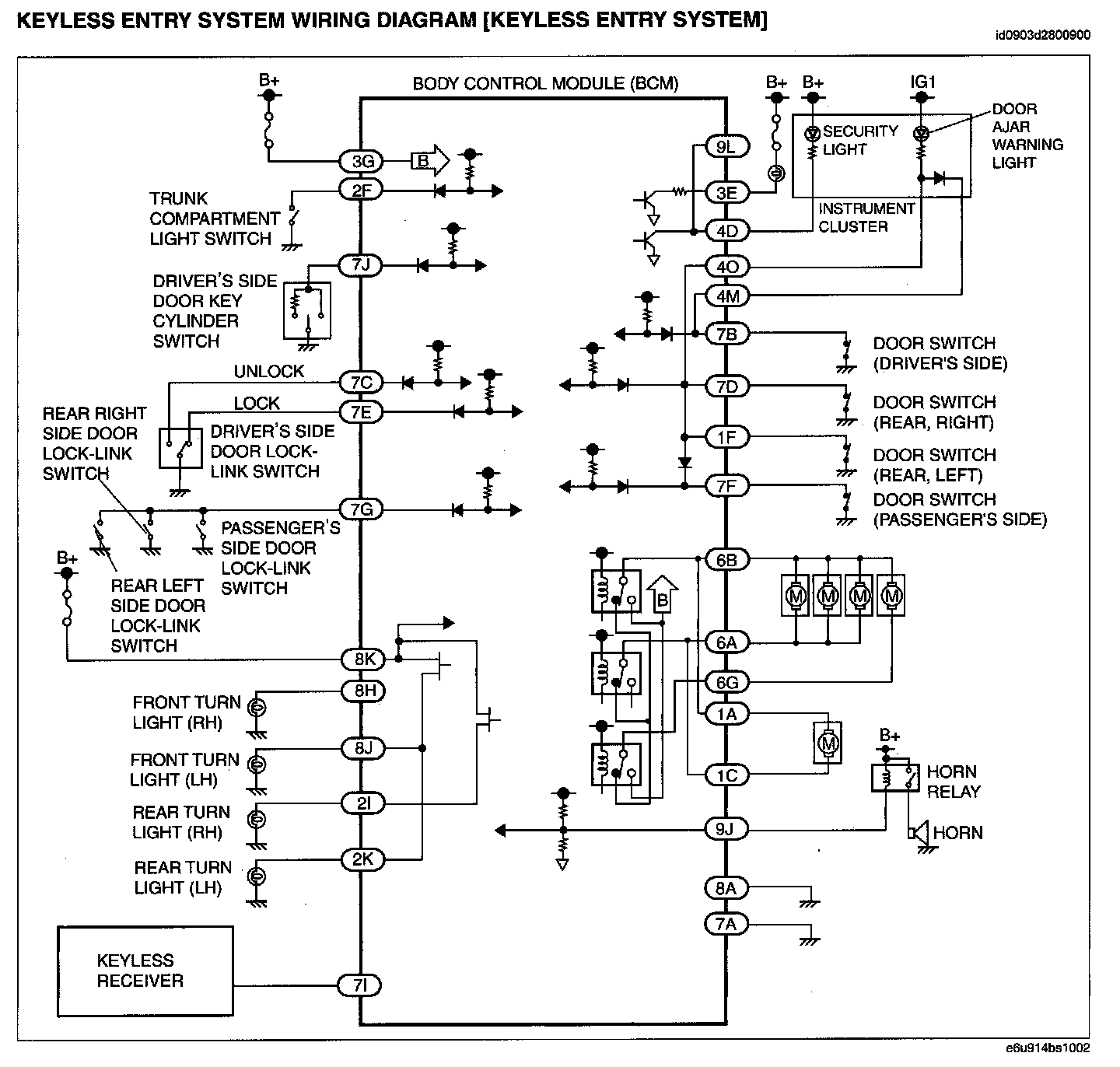

Keyless Entry System Wiring Diagram [keyless Entry System]:
