Control Module Pinout Values

Terminal Voltage Table (Reference)

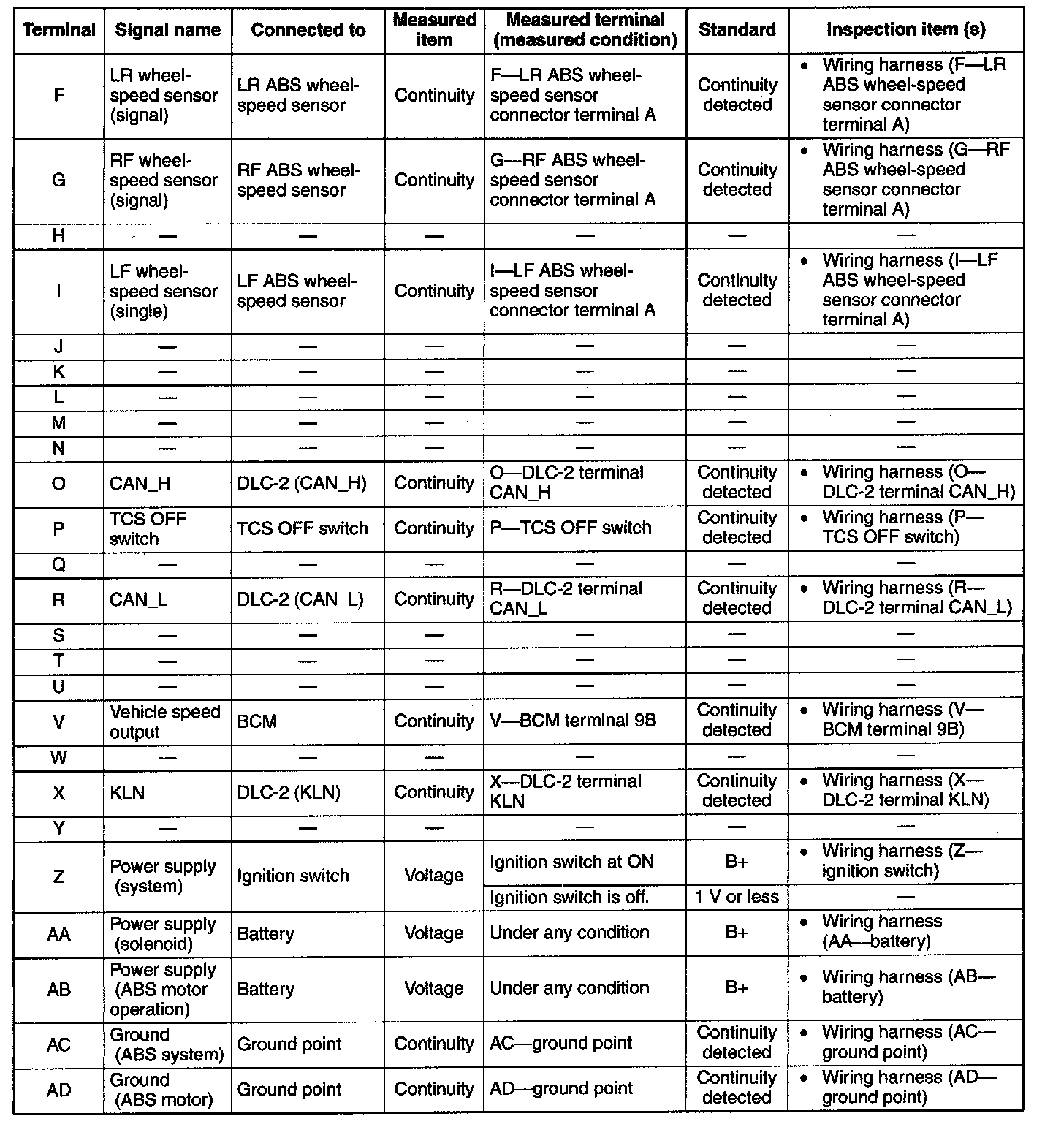

Terminal Voltage Table (Reference) (Part 1):

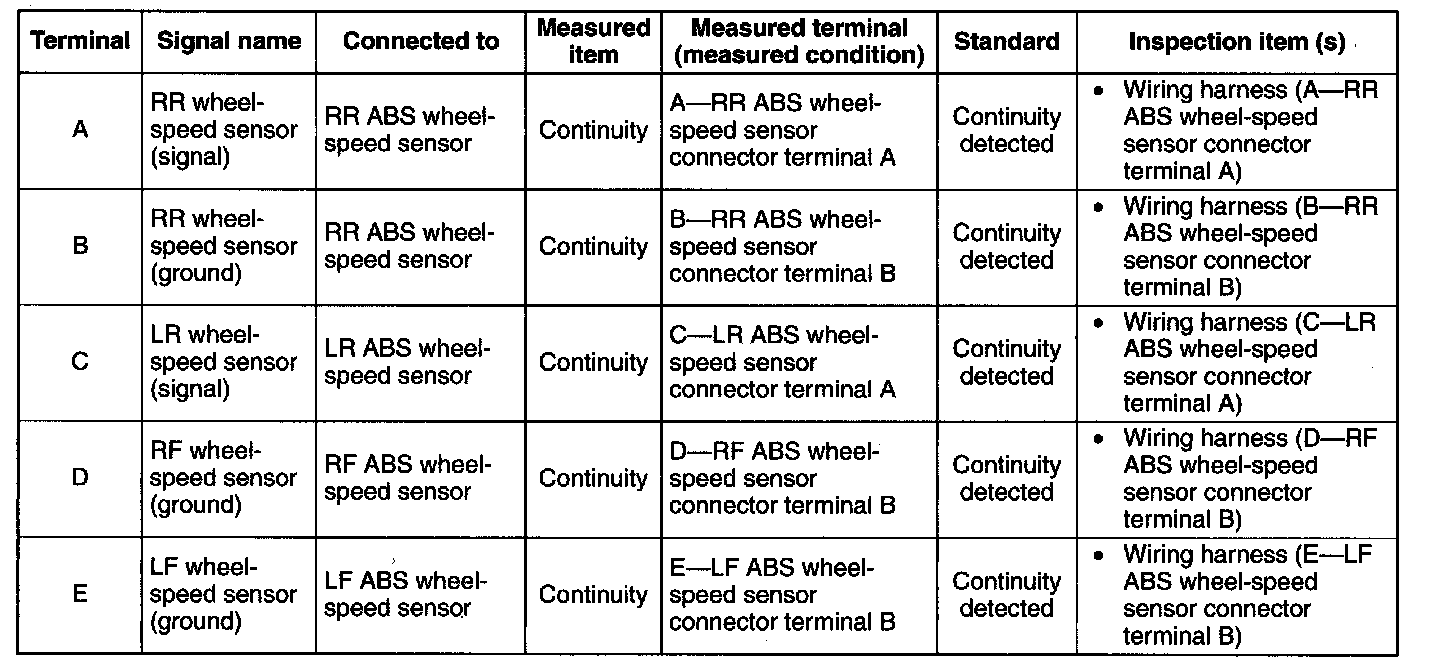

Terminal Voltage Table (Reference) (Part 2):




Terminal Voltage Table (Reference) (Part 3):
