Keyless Entry System (With Advanced Keyless System)

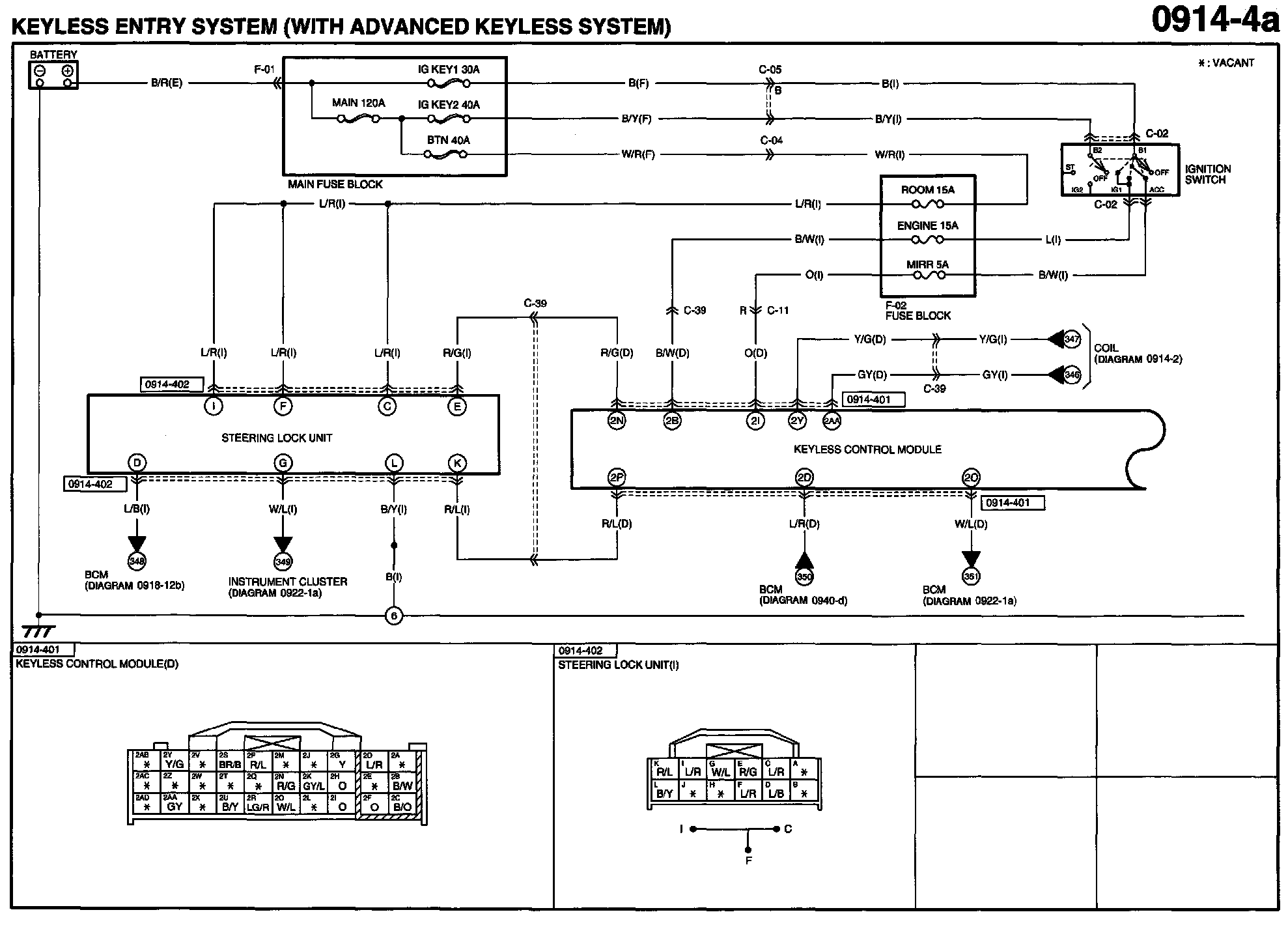

Diagram 0914-4a:

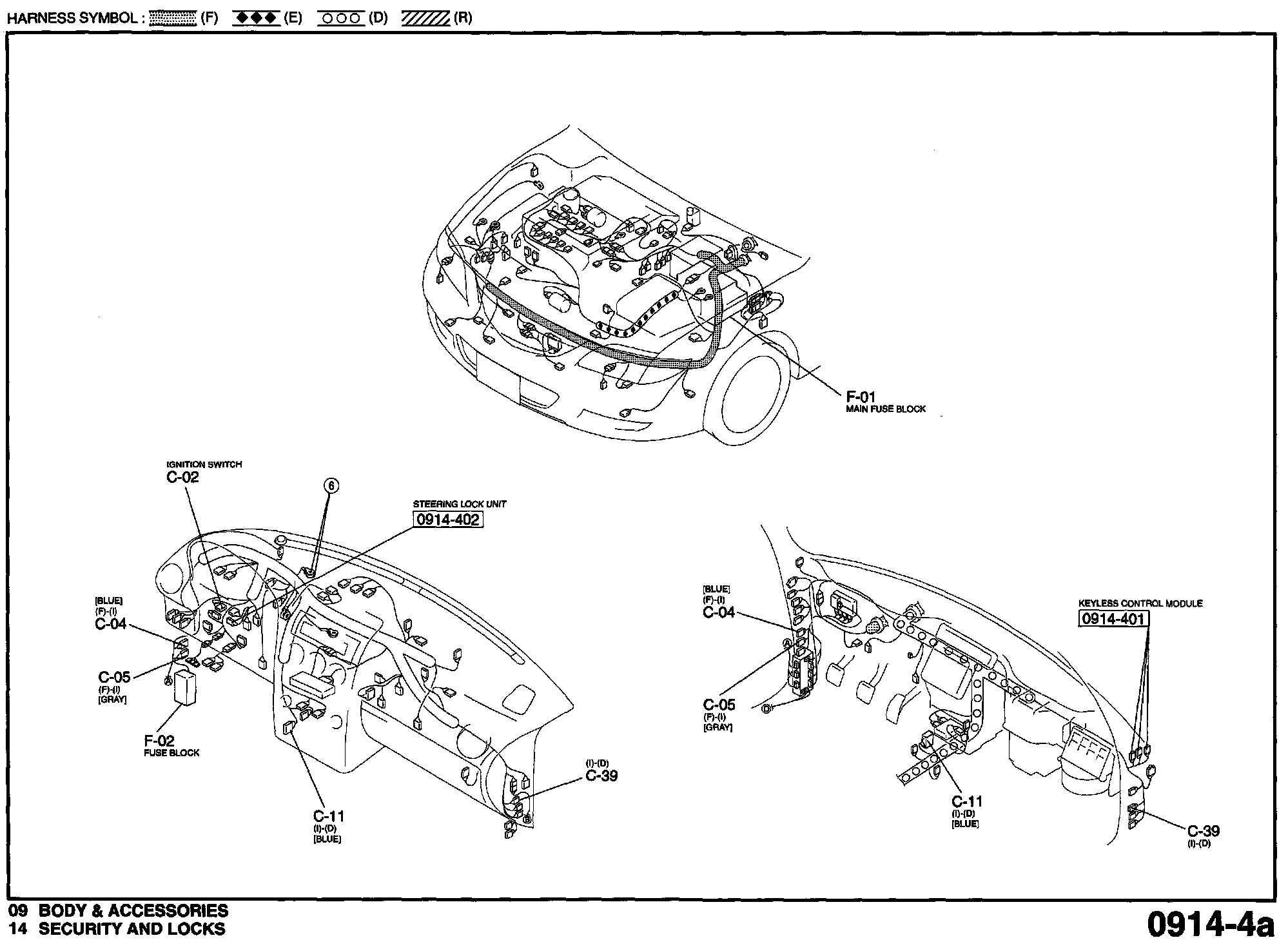

Routing View 0914-4a:

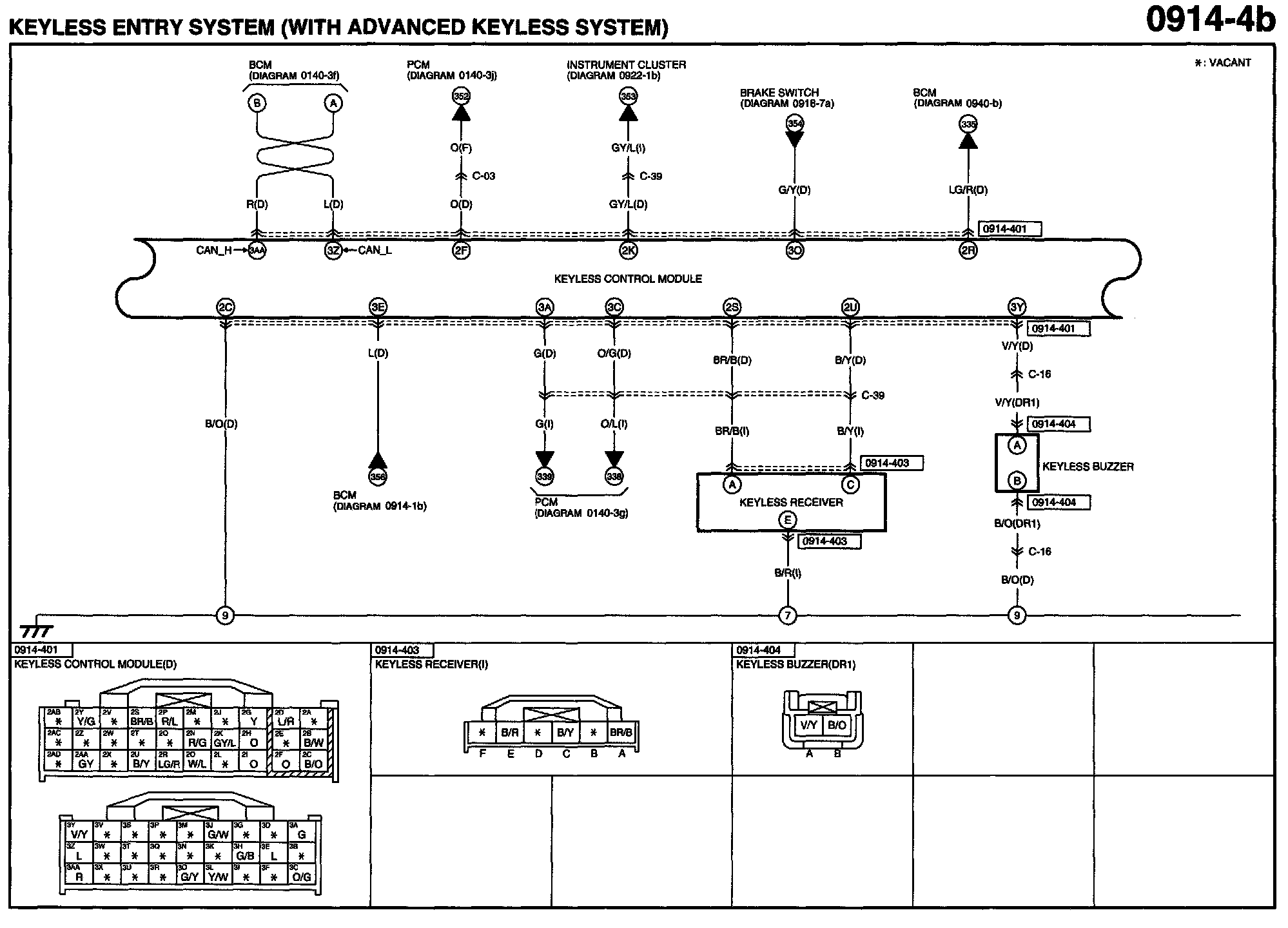

Diagram 0914-4b:

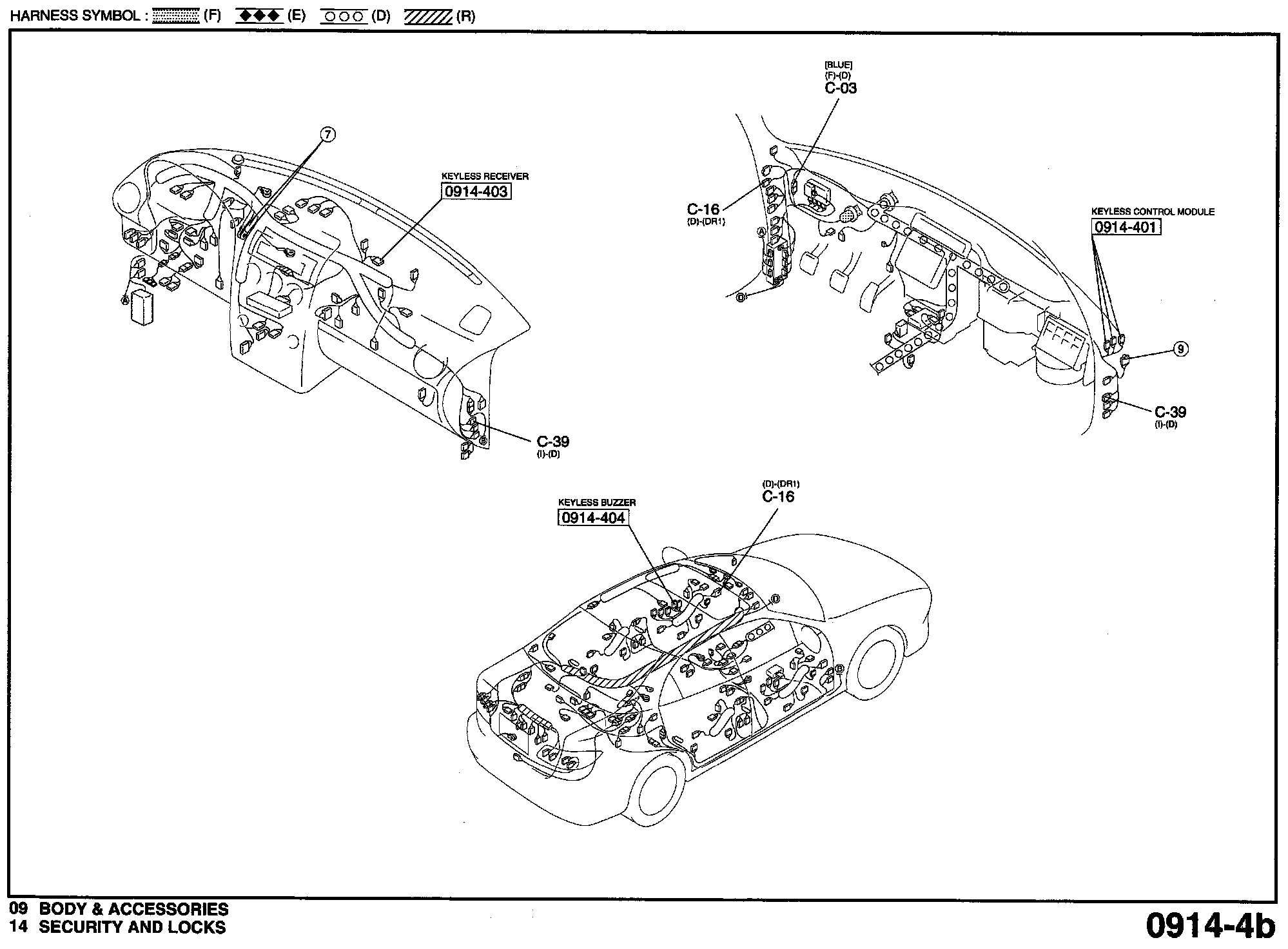

Routing View 0914-4b:

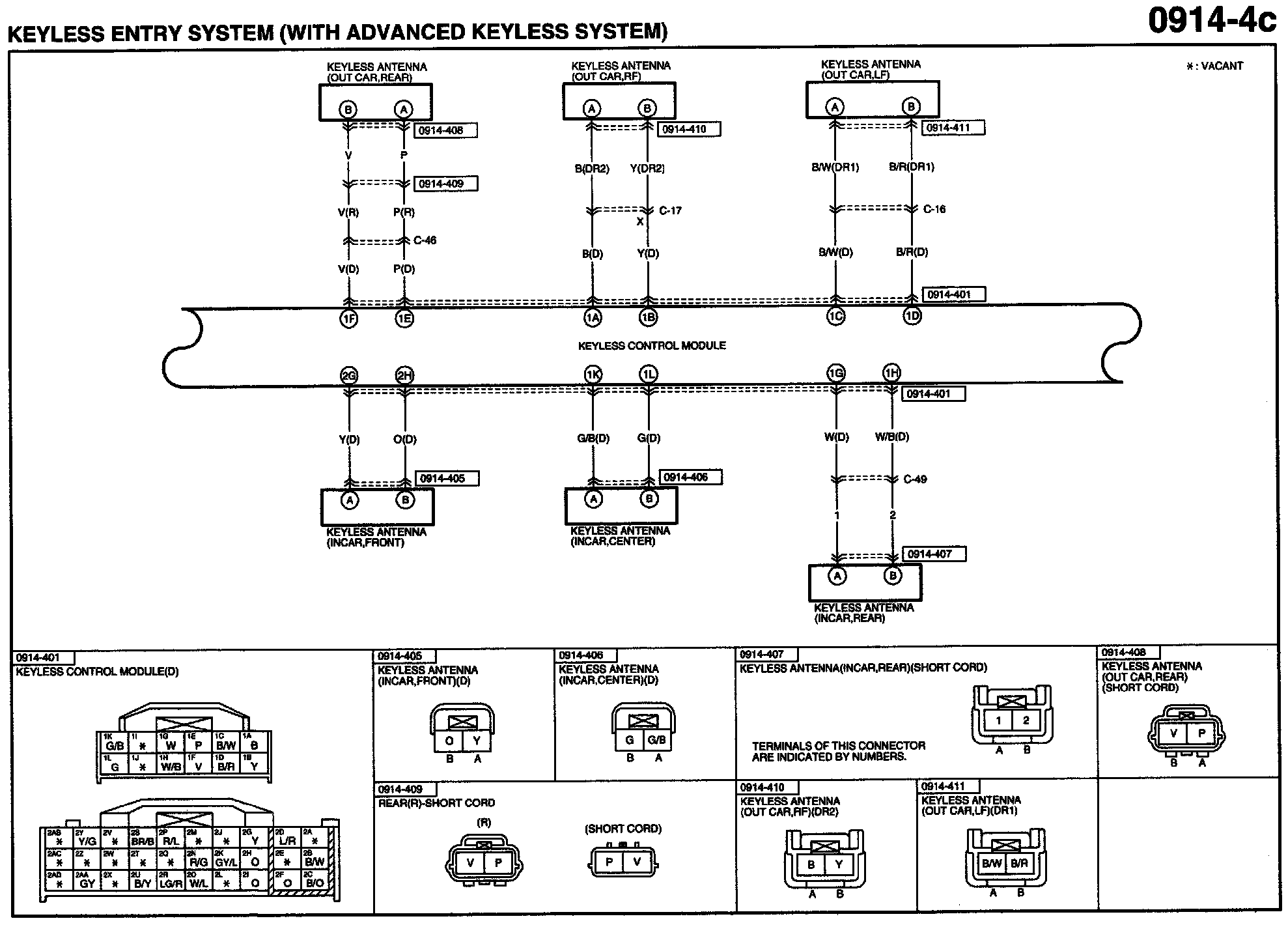

Diagram 0914-4c:

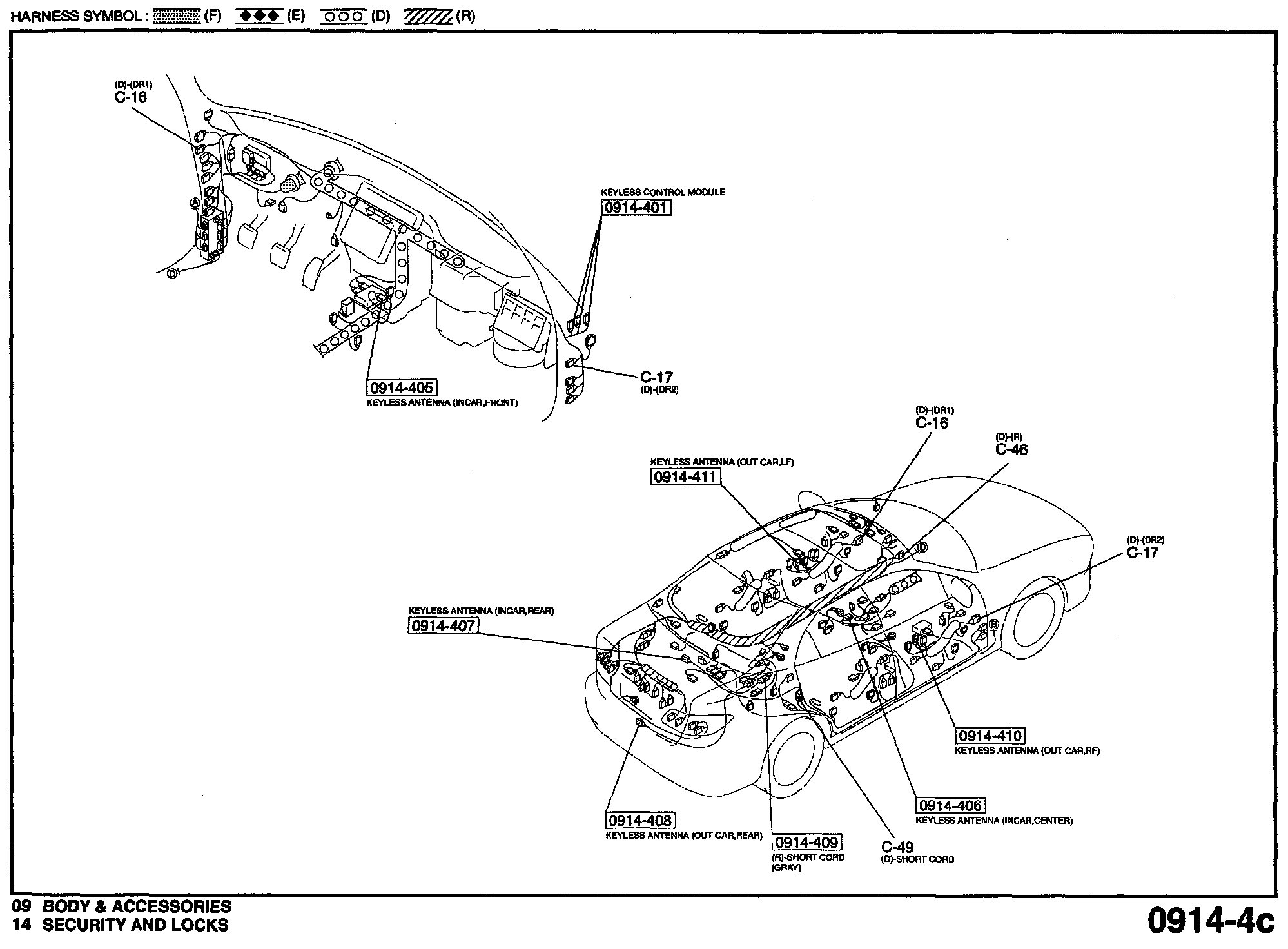

Routing View 0914-4c:

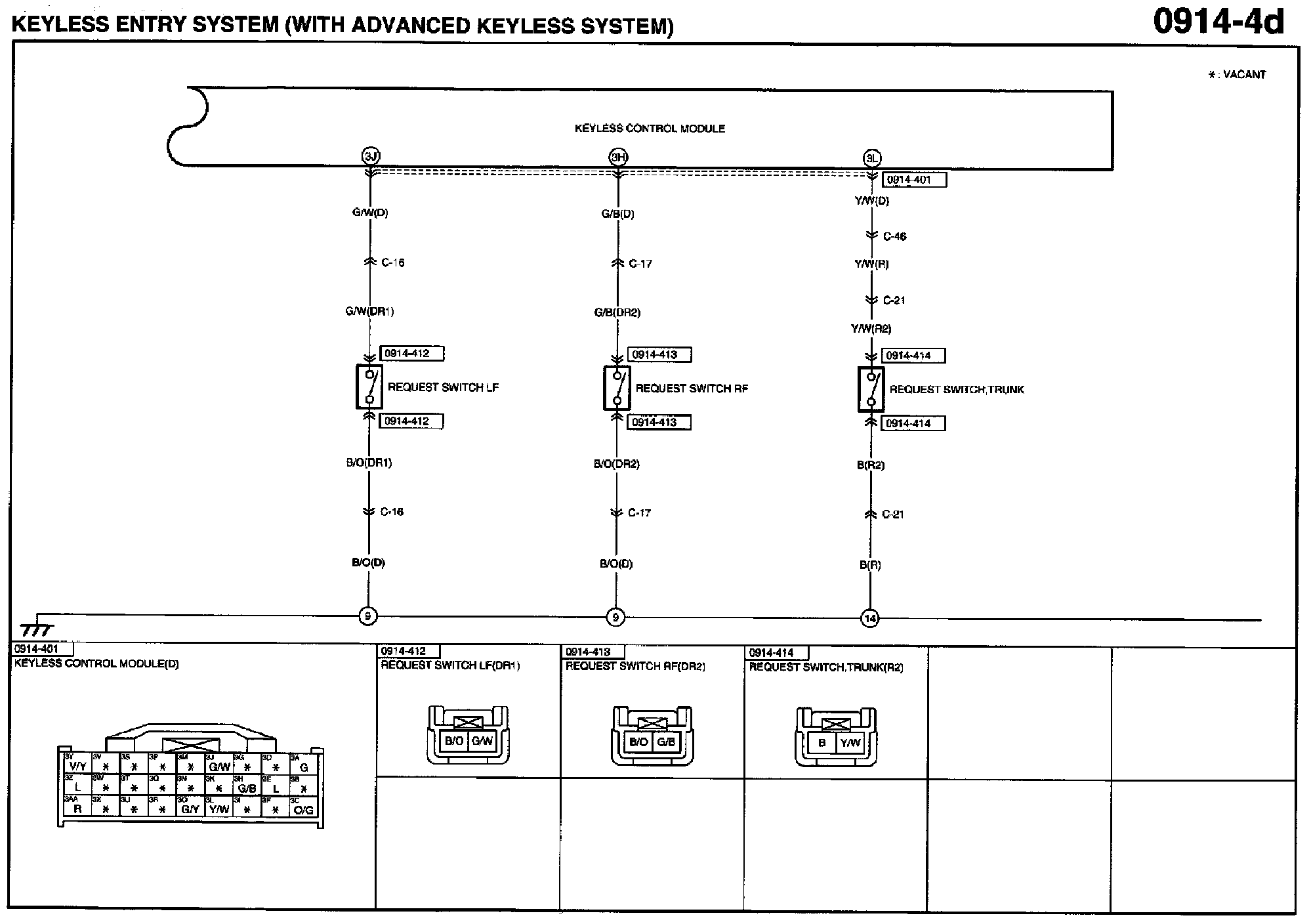

Diagram 0914-4d:

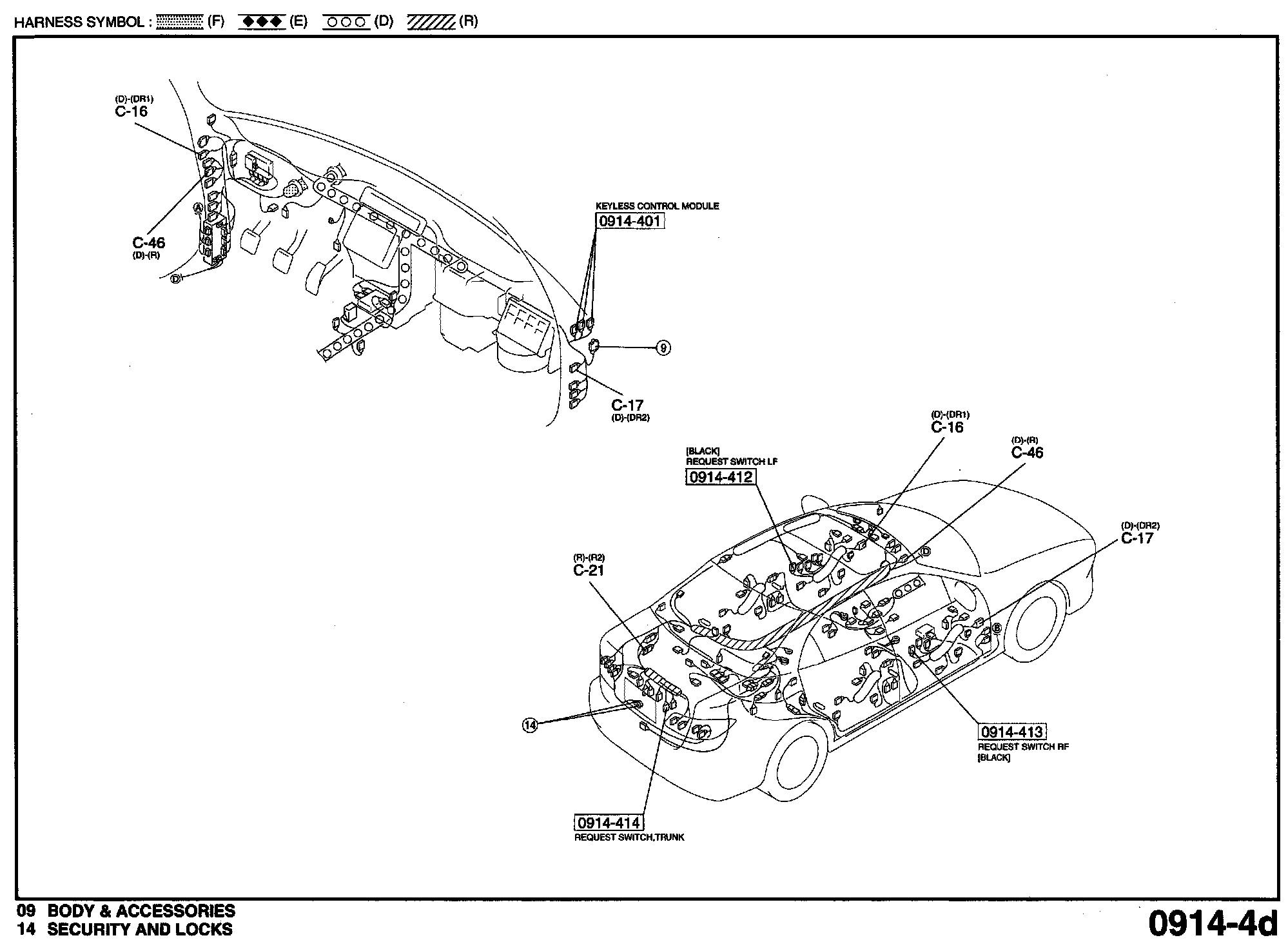

Routing View 0914-4d:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
