Engine

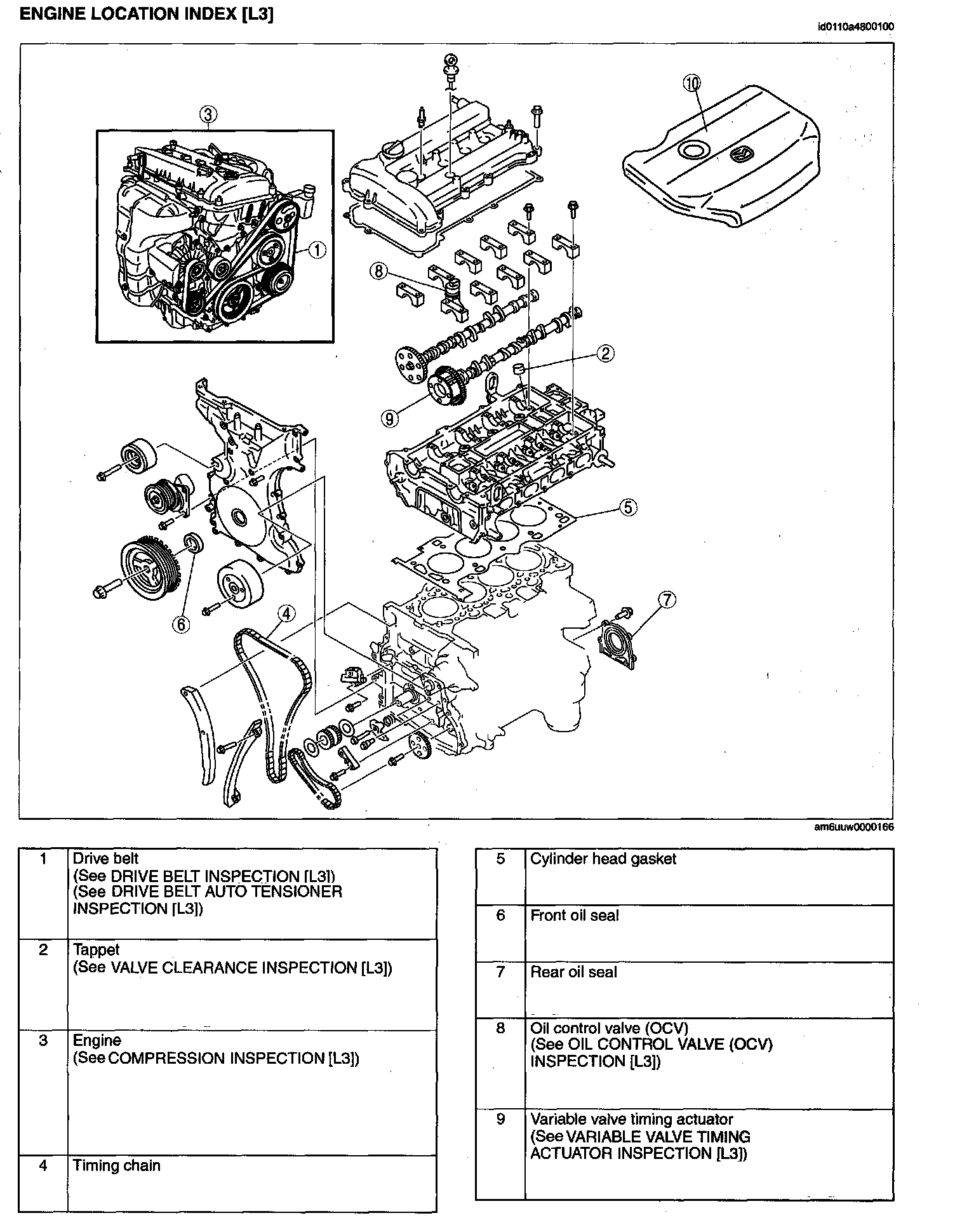

ENGINE LOCATION INDEX [L3]
Engine Location Index [L3] (Part 1):
Engine Location Index [L3] (Part 2):
